Williams Sound Personal PA Receiver PPA R19 Specifications

Personal PA

Description:

The PPA R19 is a narrow-band, two channel receiver that operates on the 72-76 MHz bandwidth. The narrow
frequency makes it less susceptible to radio interference. And with good fidelity, the R19 is perfect for voice
applications. The PPA R19's superior dual conversion technology lets you use up to 10 channels simultaneously
with multiple transmitters. The PPA R19 will operate up to 1000 feet coverage (when used with a T35 transmit-
ter), and can be used with a variety of earphone, headphone or neckloop options.
PPA R19 Receiver:
Model PPA R19:
Dimensions:
Weight:
Color:
Battery Type:
Battery Drain:
Battery Life:
Operating Freq:
Intermediate Freqs:
FCC ID:
Earphone:
Output Connector:
FM Deviation:
De-Emphasis:
Sensitivity:
Squelch Level:
Frequency Response:
Receiver Antenna:
Signal-to-Noise Ratio:
Audio Output:
Acoustic Output:

CONTROLS

Tone:
Volume & On/Off:
Channel Selector:

Warranty:

Bid Specs:

The receiver shall be encased in a blue, polypropylene impact-resistant plastic with a single hinged door for battery
installation. The receiver shall be a body-pack type and include an optional belt-clip case for hands-free operation. The
receiver shall have a 3.5 mm mono phone jack and accommodate low-impedance mono earphones, headphones and
neckloops telecoil couplers. The receiver shall have a combination volume control and power on/off rotator dial, and
a green LED power "on" indicator. The receiver shall be crystal controlled to reduce frequency drifting. The receiver
shall have 10 available channels: two channels shall be selectable by a 2-position slide switch and pre-tuned from 72-
76 MHz. The receiver shall have an adjustable 3-position tone control switch to select Low (20 Hz), Mid (120 Hz) or Hi
(700 Hz) operation. The receiver shall operate up to approx. 100 hours when using 1.5 V AA Alkaline batteries, and shall
operate up to approx. 50 hours when using 1.5 V NiMH rechargeable AA batteries.
The receiver shall receive FM signals in the 72-76 MHz audio assistance band with 300 µS de-emphasis. The receiver
shall provide a maximum output of 35 mW at 16 Ohms with an earbud-type earphone. The system's electrical fre-
quency response shall be 100 Hz to 5 kHz, ± 3 dB and the signal-to-noise ratio shall be 50 dB at 10 µV. The receiver shall
have a sensitivity of 0.7 µV at 12 dB Sinad.
The receiver shall be covered by a five-year parts and labor warranty, excluding earphones, headphones, batteries and
chargers. The receiver model shall be the Williams Sound Corp. model PPA R19.
NOTE: SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE!
©2005, Williams Sound Corp. MCAT 014A
®
FM Receiver, Model PPA R19
2-Channel, pre-tuned, selectable CH 33 (72.9 MHz),
CH 53 (75.7 MHz) standard 10 channels available (72.1-75.9 MHz)
3-5/8" L x 2-3/8" W x 7/8" H (92.1 mm x 60.3 mm x 22.2 mm)
3.2 oz (90 g) with battery
Neptune Blue
(2) BAT 001 AA Alkaline or (2) BAT 026 NiMH
20 mA, nominal
90-100 hrs with 2 AA Alkaline, 45-50 hrs/charge with BAT 026
Crystal controlled. See factory for frequency changing instructions.
10.7 MHz, 455 kHz
CNMR19
Earbud-type with foam cushion, 3.5 mm plug, 32 Ω
3.5 mm mini phone jack
Narrow–band, 5 kHz
300 µS
0.7 µV at 12 dB Sinad
4 µV for minimum 40 dB S/N ratio
100-5 kHz, ± 3 dB (Tone: Lo)
Integral with earphone cord
50 dB
35 mW, max. at 16 Ω (Tone: Lo; 3 VDC Bat.)
125 dB Max SSPL90 with EAR 013
Switched Low-Cut. Lo: 20 Hz / Mid: 120 Hz / Hi: 700 Hz
Combination, integral
PPA R19: 2-position, slide switch
5 years, parts and labor (90 days on accessories)
Tone Controls
Earphone/
Charging
EAR Volume Channel
Jack
Lo Mid Hi
1
2
1
Tone
Off Max
Power
On/Off Indicator

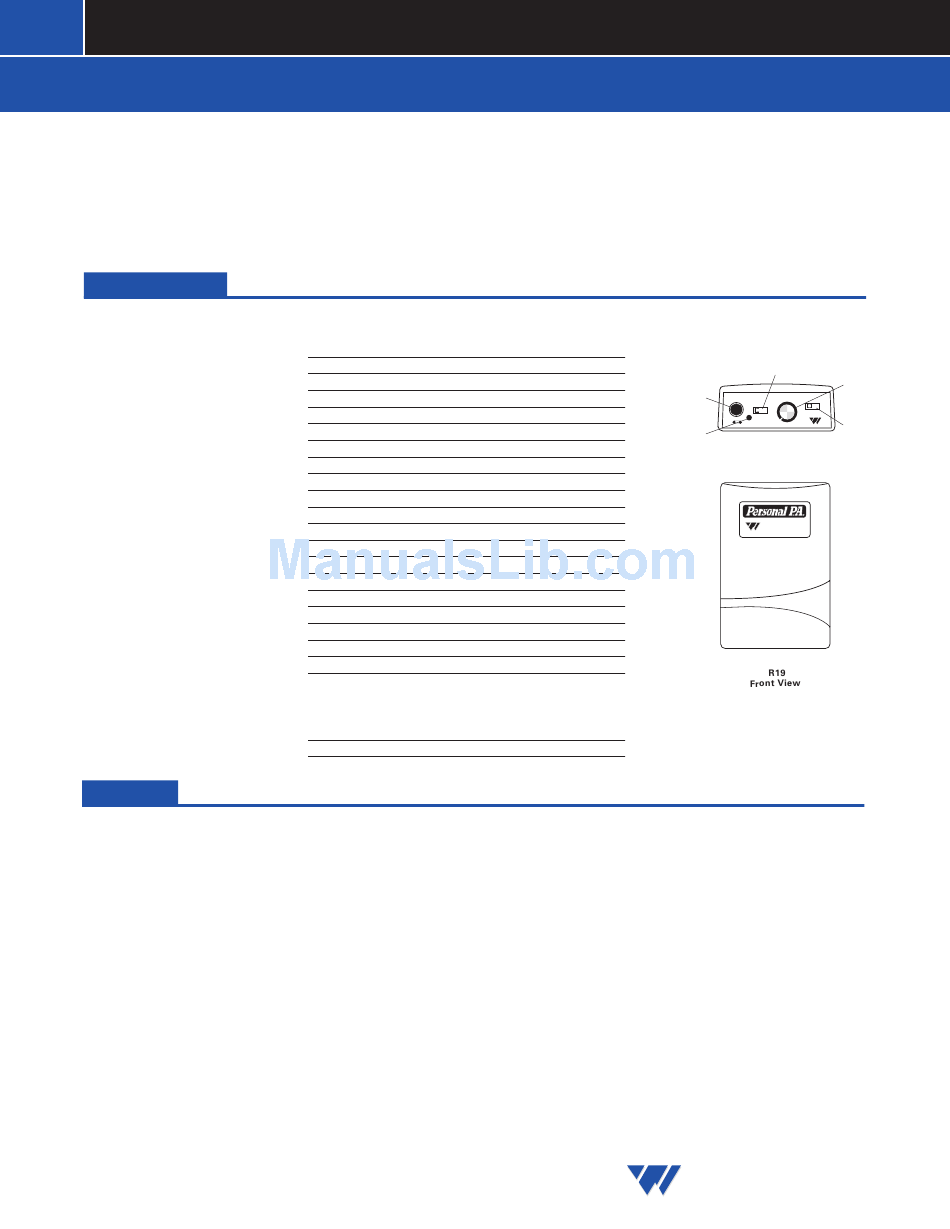

R19 Top
Williams Sound
Williams Sound
Helping People Hear
Volume /
On-Off
Control
2
Channel
Switch
®
1
