Changes in temperature and speed in the cooling lines

Below are the diagrams for calculating the temperature variations in the delivery pipes and the liquid speed in the cooling
line pipes.

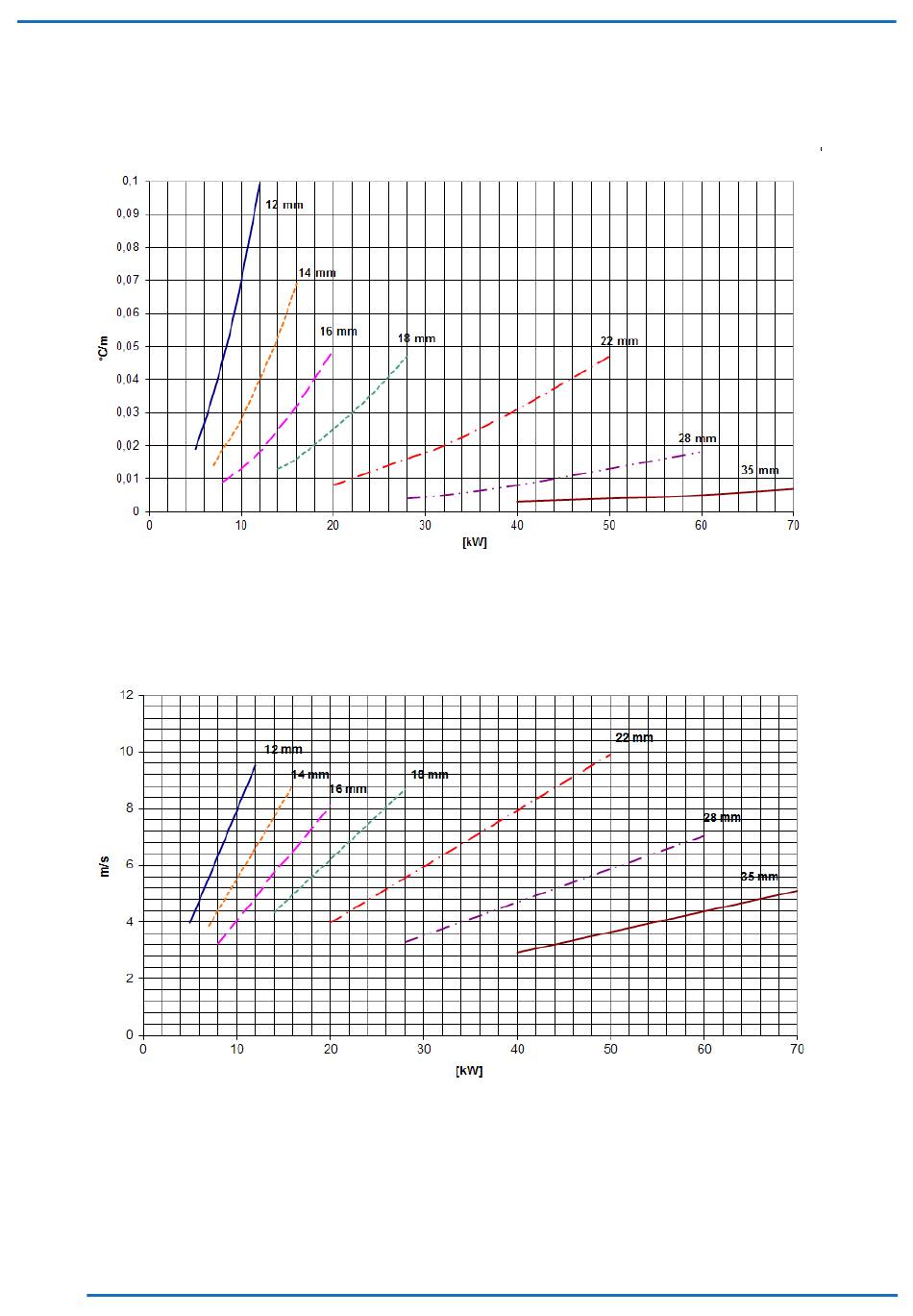

Fig. 11 Change of saturation temperature in the discharge lines
This diagram is useful in order to approximately determine the variation in saturation temperature, per equivalent linear
metre of pipe, on the basis of the cooling capacity and the diameter of the discharge line.
Fig. 12 Speed in the discharge lines
This diagram is useful in order to determine the approximate speed of the refrigerant, in metres per second, on the basis of
the cooling capacity and the diameter of the discharge line.
