MOVFE 2500
LINEAR DOOR OPERATOR
MECHANICAL MANUAL
GAL CANADA
6500 Gottardo Court
Mississauga, Ontario
L5T 2A2 Canada
1 (416) 747-7967
1 (800) 446-4850
http://www.galcanada.com
M
LINEAR
2500-3071

Advertisement

Table of Contents
loading

Related Manuals for GAL MOVFE 2500

Summary of Contents for GAL MOVFE 2500

  • Page 1 MOVFE 2500 LINEAR DOOR OPERATOR MECHANICAL MANUAL GAL CANADA 6500 Gottardo Court Mississauga, Ontario L5T 2A2 Canada 1 (416) 747-7967 1 (800) 446-4850 http://www.galcanada.com LINEAR 2500-3071...
  • Page 2 It is hoped that the procedures presented in this manual will reduce the installation and adjustment time and result in a smooth, long lasting door operation. When properly installed, GAL door operators will give many years of trouble free service. COMMENTS: All GAL door operators are factory adjusted and tested for the actual job requirements.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Foreword Comments & Important Notes Table of Contents ILLUSTRATIONS OF MOVFE2500 LINEAR DOOR OPERATORS Left Hand Heavy Duty Linear Model Right Hand Heavy Duty Linear Model Center Parting Heavy Duty Linear Model A Left Hand Light Duty Linear Model DETERMINING THE HAND OF THE DOOR Right Hand Door Left Hand Door...
  • Page 4 PARTS LIST NOTES & COPYRIGHT NOTES...

  • Page 5: Illustrations Of Movfe2500 Linear Door Operators

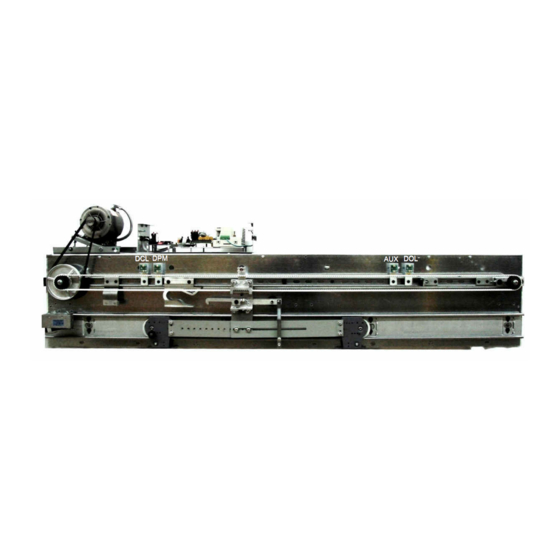

    ILLUSTRATIONS OF THE MOVFE2500 LINEAR DOOR OPERATORS MOVFE2500 linear door operator utilizes a ½ HP AC motor for the heavy duty models and 91W AC geared motor for light duty models. The controller includes a closed-loop VVVF Drive, 3 basic hall- effect sensor boards, 1 optional hall-effect sensor board for the narrower door, and an optional I/O board for special jobs.

  • Page 6: Center Parting Heavy Duty Linear Model

    DCL DPM AUX DOL CENTRE PARTING HEAVY DUTY LINEAR MODEL AUX DOL DCL DPM LEFT HAND 2 SPEED LIGHT DUTY LINEAR MODEL...

  • Page 7: Determining The Hand Of The Door

    DETERMINING THE HAND OF THE DOOR GAL door operators are available for Right hand doors, Left hand doors and Center Parting doors. To d etermine the hand of the door, stand in the lobby facing the elevator door(s). If the door closes to the L eft, it is a Left hand door.

  • Page 8: Mechanical Setup Instructions

    MECHANICAL SETUP INSTRUCTIONS Determine the door and hanger type of the system. I. Side Opening (S/O), left or right hand, and single-piece hanger. II. Side Opening (S/O), left or right hand, and two-piece hanger. III. Center parting (C/P) door and a single piece hanger. IV.
  • Page 9 DPM DCL DOL AUX DOL AUX SINGLE SLIDE RH SHOWN Figure 3 4. Mount the universal plate # 1 or # 23 (C/P) with bend towards the door open side using four 5/16” bolts. 5. For the two-piece hanger system, mount the extension arm # 2 or # 24 (C/P) to the opposite hanger and secure to the universal plate # 1 or # 23 with 5/16 bolts.
  • Page 10 AUX DOL AUX DOL CENTRE PARTING Figure 4 13. Mount the tension block # 5 to the fixing strut. Put the hex screw toward the take up pulley. 14. With the door in fully opened position, install the open door stop # 9 in contact with the lower belt Bracket # 3.
  • Page 11 18. Install drive belt # 10 and clamp the two open ends equally in the lower belt bracket # 3, cutting is required for desired length. C/P doors need clamping in upper belt bracket # 25, as well, see Fig. 4. Move the doors from closed to open position and adjust the belt brackets so that belts are parallel to each other looking from top.

  • Page 12: Kinetic Energy, And Asme A17.1 2000 For Elevator Door Systems

    A non-standard application, like three speed doors, or panels that are so heavy or light that they fall outside the range shown on the data tables, you can call GAL and we will calculate closing code time for your job.

  • Page 13: Data Plate

    2.13.4.2.4 Data Plate. A data plate conforming to 2.16.3.3 shall be attached to the power door operator or to the car crosshead and shall contain the following information: (a) minimum door closing time in seconds for the doors to travel the code zone distance as specified in 2.13.4.2.2 corresponding to the kinetic energy limits specified in 2.13.4.2.1(b)(2);...

  • Page 14: Minimum Closing Time For Single Speed S/O Door

    MINIMUM CLOSING TIME FOR SINGLE SPEED S/O DOOR Heavy Duty Linear Operator SINGLE SPEED SLIDING DOOR SINGLE SPEED SLIDING DOOR Minimum Minimum Code Time Code Time Average Average DOOR Door Equipment Code Minimum When Door DOOR Door Equipment Code Minimum When Door Kinetic Kinetic...

  • Page 15: Minimum Closing Time For Two Speed S/O Door

    MINIMUM CLOSING TIME FOR TWO SPEED S/O DOOR Heavy Duty Linear Operator TWO SPEED SLIDING DOOR TWO SPEED SLIDING DOOR Minimum Minimum Code Time Code Time Average Average DOOR Door Equipment Code Minimum When Door DOOR Door Code Minimum When Door Kinetic Equipment Kinetic...

  • Page 16: Minimum Closing Time For Single Speed C/P Door

    MINIMUM CLOSING TIME FOR SINGLE SPEED C/P DOOR Heavy Duty Linear Operator SINGLE SPEED CENTER PARTING DOOR SINGLE SPEED CENTER PARTING DOOR Minimum Minimum Code Time Code Time Code Average Code Average DOOR Door Equipment Minimum When Door DOOR Door Minimum When Door Distance...

  • Page 17: Minimum Closing Time For Two Speed C/P Door

    MINIMUM CLOSING TIME FOR TWO SPEED C/P DOOR Heavy Duty Linear Operator TWO SPEED CENTER PARTING DOOR TWO SPEED CENTER PARTING DOOR Minimum Minimum Code Time Code Time Code Average Code Average DOOR Door Equipment Minimum When Door DOOR Door Equipment Minimum When Door...

  • Page 18: Minimum Closing Time For Single S/O Door

    MINIMUM CLOSING TIME FOR SINGLE SPEED S/O DOOR Light Duty Geared Linear Operator SINGLE SPEED SLIDING DOOR SINGLE SPEED SLIDING DOOR Minimum Minimum Code Time Code Time Average Average DOOR Door Equipment Code Minimum When Door DOOR Door Equipment Code Minimum When Door Kinetic...

  • Page 19: Minimum Closing Time For Two Speed S/O Door

    MINIMUM CLOSING TIME FOR SINGLE SPEED C/P DOOR Light Duty Geared Linear Operator SINGLE SPEED CENTER PARTING DOOR SINGLE SPEED CENTER PARTING DOOR Minimum Minimum Code Time Code Time Code Average Code Average DOOR Door Equipment Minimum When Door DOOR Door Equipment Minimum...

  • Page 20: Minimum Closing Time For Single Speed C/P Door

    MINIMUM CLOSING TIME FOR TWO SPEED C/P DOOR Light Duty Geared Linear Operator TWO SPEED CENTER PARTING DOOR TWO SPEED CENTER PARTING DOOR Minimum Minimum Code Time Code Time Code Average Code Average DOOR Door Equipment Minimum When Door DOOR Door Equipment Minimum...
  • Page 21 PARTS LIST The following parts can be purchased from GAL Note: GAL reserves the right to replace any items in this list at any time without notice. GAL Par No. Item Description Picture SINGLE SIDE SLIDE 2000-1031-R UNIVERSAL PLATE 2000-1031-L...
  • Page 22 GATE SWITCH SW1-0001N ASSEMBLY 2500-3092-L LEFT HAND L.H. SHOWN KEEPER BRACKET ASSEMBLY 2500-3092-R R.H. CLUTCH CAM 2500-3084 ASSEMBLY FIXING STRUT 2500-3088 OPEN DOOR STOP...
  • Page 23 2-SPEED SIDE SLIDE 2500-3089 OPEN-CLOSED DOOR STOP LINEAR DRIVE 2500-5009 BELT GATE SWITCH SW1-0007N ROLLER CLUTCH LINKAGE 2000-3085 ASSEMBLY DCL & DOL SENSOR BLOCK 2500-5019 ASSEMBLY 2-SPEED UNIVERSAL 2000-1040-2S BRACKET SIDE SLIDE TRACK SHIM HH1-0032N...
  • Page 24 INQUIRE WITH GAL/ECI DOOR SHEAVE FOR APROPRIATE ASSEMBLY SHEAVES FOR YOUR APPLICATION HEADER ANGLE- 909-SERIES SSL/CP 2000-3066 (SSL) FIXING STRUT 2000-3067 (2 SP) DRIVE PULLEY 2500-3074 ASSEMBLY 2500-2075-1(8') (8'-6") 2500-2075-2 MULTI “V” 2500-2075-3 ( 9') MOTOR BELT 2500-2075-4 ( 9'-6")
  • Page 25 ½ HP 3-PH MOTOR ASSEMBLY + 2500-3059 PIVOT AND BASE PLATE 892-5008 KEEPER CLUTCH & ASSEMBLY 892-2007 INQUIRE WITH GAL/ECI TRACK FOR APROPRIATE APLLICATION...
  • Page 26 COMPLETE DRIVE UNIT BOX 2500-3054 ASSEMBLY UNIVERSAL 2000-1040-D-4 PLATE-CP EXTENSION ARM- 2000-1041-A CP (10”, 14”) 2000-1042-A UPPER BELT BRACKET 2000-3069 USE ON C/P ONLY...
  • Page 27 MOVFE2500 GEARED MOTOR 2500-5024 MOUNTING HEAVY DUTY 2500-1012 LINEAR BELT PULLEY GEARED MOTOR ASSEMBLY – LEFT 2500-3072-L HAND GEARED MOTOR ASSEMBLY – 2500-3072-R RIGHT HAND...
  • Page 28 NOTES Copyright © 2013 GAL All rights reserved. No part of this document may be reproduced in any form,machine or natural without the express written consent of GAL. Canada...
