GAL MOVFR Installation Instructions Manual

Harmonic door operator, hand swap procedure
Hide thumbs Also See for MOVFR:
1
2
3
4
5
6
7
8
9

Advertisement

Quick Links

Download this manual See also: Installation Manual
G.A.L. Manufacturing Corporation
50 East 153
Phone (718) 292-9000 Fax (718) 292-2034

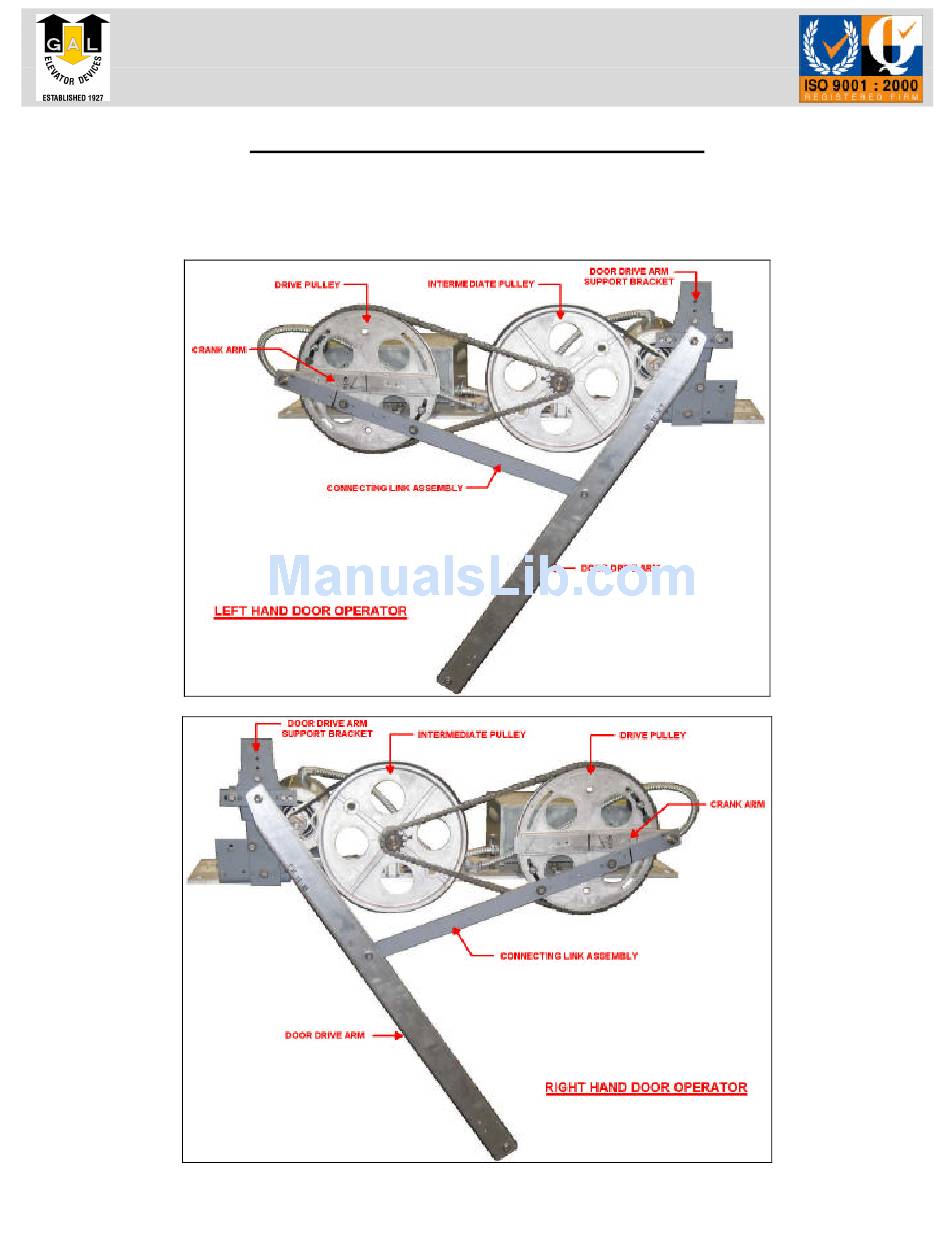

This document should be used as a guide to convert a side slide operator to its opposite hand. The following will show
the steps necessary to complete this task. It should take approximately 1 to 1 1/2 hours to complete. Take note of the
entire operator assembly and location of components to avoid reassembly problems.
Doc. No.: MOVFR Hand Swap.doc
rd
Street, Bronx, N.Y. 10451
MOVFR Operator Hand Swap Procedure
10/5/2005
1

Advertisement

loading

Related Manuals for GAL MOVFR

Summary of Contents for GAL MOVFR

  • Page 1 Phone (718) 292-9000 Fax (718) 292-2034 10/5/2005 MOVFR Operator Hand Swap Procedure This document should be used as a guide to convert a side slide operator to its opposite hand. The following will show the steps necessary to complete this task. It should take approximately 1 to 1 1/2 hours to complete. Take note of the entire operator assembly and location of components to avoid reassembly problems.
  • Page 2 2 halves of the connecting link, and reassemble with the slotted link facing outward. 3. Remove 2 bolts on the door drive arm support assembly to separate door drive arm. Doc. No.: MOVFR Hand Swap.doc...
  • Page 3 5. Remove speed limit cams by sliding them off the bearing shaft. Note: During reassembly in opposite hand, reference the appendix section of this document. 6. Remove 4 screws holding the operator controls enclosure to the base. Doc. No.: MOVFR Hand Swap.doc...
  • Page 4 9. Remove 4 bolts holding drive arm support assembly to the base. Note: During reassembly in the opposite hand, you must remove the 3 bolts on the support assembly and shift to top half of the support over to the next set of holes. (if applicable) Doc. No.: MOVFR Hand Swap.doc...
  • Page 5 11. Slide operator controls enclosure out of the way. Remove 2 bolts securing the stop plate for drive pulley limit. Then remove 4 bolts securing the drive pulley assembly to the base. 12. Unscrew stud for the motor mount tensioner. Doc. No.: MOVFR Hand Swap.doc...
  • Page 6 Take notice of the markings on the casting. All stop rollers located “LH” will now be mounted to “RH”, and vice versa depending on the swap. Doc. No.: MOVFR Hand Swap.doc...
  • Page 7 Reverse the crank arm and insert screws back in place. 17. Reinstall stud for motor mount tensioner. (Ref. Step 13). Then follow reassembly in reverse order from steps 12-2. Doc. No.: MOVFR Hand Swap.doc...
  • Page 8 G.A.L. Manufacturing Corporation 50 East 153 Street, Bronx, N.Y. 10451 Phone (718) 292-9000 Fax (718) 292-2034 10/5/2005 Appendix Cam Setting Versus Distance Doc. No.: MOVFR Hand Swap.doc...
