Summary of Contents for Werner ALDEK
- Page 1 ALDEK ALUMINUM SCAFFOLD ® ASSEMBLY INSTRUCTIONS...

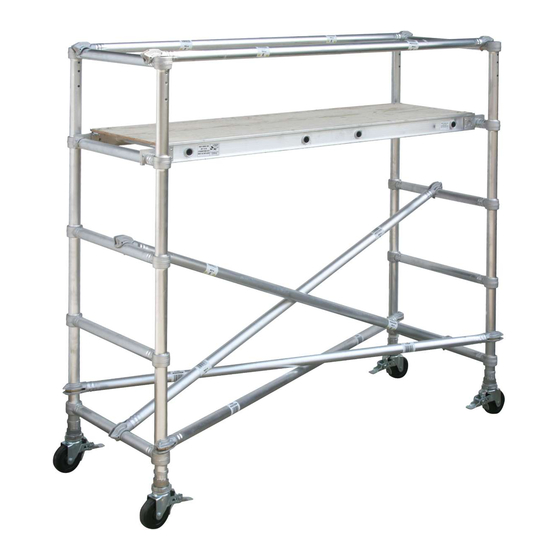

- Page 2 ALDEK ® Narrow Span Aluminum Scaffold Base Section Assembly Instructions Pre-level end frames by unlocking adjustable leg Lock all adjustable leg assemblies and run Lock casters on one end frame by depressing Lock casters on remaining end frame and assemblies and extending the legs equally.
- Page 3 ALDEK ® Stairway Scaffold Base And Upper Section Assembly Instructions Pre-level end frame assembly by unlocking all Place end frame assembly in open area so Attach diagonal braces to upper and lower Place plywood platforms on platform support adjustable leg assemblies and extending legs equally. Lock that the end frame with the bottom of the stairway attached end frame horizontals to form a vertical "x"...
- Page 4 Adjustable and lockable ( Non-marring casters should be used in clean room environments ) CORPORATE HEADQUARTERS Werner Co. 93 Werner Road Greenville, PA 16125-9499 Tel. (724) 588-8600 FAX (724) 588-0315 www.wernerladder.com C52 © 2002 Werner Co. Printed in U.S.A. January 2002...
