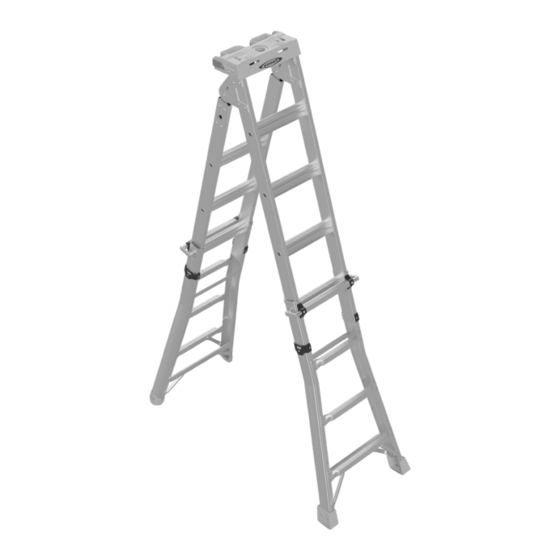

- Page 2 375lb LOAD CAPACITY MULTI MAX PRO Operating Procedure and Safety Instructions 18 ft. Model...
- Page 3 • How to set up positions ....... 8 - 13 6 WERNER KITS...
- Page 6 DESCRIPTION PRODUCT OVERVIEW WARNING The Telescoping Use ladder only in positions as shown Multiladder is a below. Any other position is misuse professional grade, of the product which could result in multi-purpose ladder serious injury or death. that can be changed into different positions CAUTION and working heights.
- Page 7 REACH HEIGHTS The following chart shows the working heights of each of the available units in each of the six main positions. 16ft MODEL 18ft MODEL Step* 12ft 3in 11ft 4 in Extension* 18ft 16ft 1in Stair* 12ft 3in 11ft 4 in Leaning* 11ft 4in 12ft 3in...
- Page 10 Itasca, IL 60143 or alkalis). 1-888-523-3371 • For information on replacing parts or labels contact Werner Co. at the address given. If possible, know model number of ladder for reference. See I.D. label on product. PROPER SET-UP AND USE For safety, follow these set-up and use instructions: •...
- Page 11 • DO NOT use any components not supplied or electrical current. approved by Werner Co. with this ladder. • Never use ladder jacks on this ladder, regard- less of the manner in which it is being used.
- Page 14 HINGE LEVERS HINGE UNLOCKED POSITION HINGE OPERATION For safety, follow these push knob hinge instructions: The ladder's inner section allows the ladder to be folded into 4 set positions; extension ladder, twin stepladder, leaning, and storage. Each of these configurations is made possible by using HINGE LOCKED POSITION the hinge levers located under the ladder top.
-
Page 15: Lock Operation
SPRING LOADED “J” LOCKS LOCK OPERATION For safety, follow these Spring Loaded “J” Locks instructions: The ladder's outer sections allow the ladder to telescope and change heights in all the UNLOCKED configurations. Each of these configurations is made possible using the 2 Spring Loaded “J” locks, on the front section of the ladder. - Page 17 PROPER USE HOW TO SET UP POSITIONS The Telescoping Multiladder can be used in positions shown below with no additional equipment required. The following instruction will demonstrate how to change the Telescoping Multiladder. Position #1 Twin Stepladder 1) To configure the ladder into the stepladder position, follow the directions for changing the angle of the ladder (Section 3) using the hinge lever.
- Page 20 Position #2 Stairway Stepladder 1) To configure the ladder into the Stairway Stepladder position (this position is used when the user needs to work in a stairway.), configure the ladder in the stepladder configuration as described in position #1. Raise to desired height. 2) Lower one side of the inner section until the desired step height is reached.
-
Page 21: Proper Use
PROPER USE HOW TO SET UP POSITIONS (continued) Position #3 Extension Ladder 75° Approximately 1) Configuring the ladder into the extension ladder position, as with the stepladder position, the extension ladder position starts with changing the angle. Note: The hinge levers will catch in each of the 3 positions. Continue to hold the levers and rotate the sections until the fully open extension ladder position is reached. - Page 24 Position #4 Leaning 1) To configure the ladder into the leaning mode, set up the ladder in the closed position and lean the ladder top against walls, studs or corners...
- Page 25 Position #5 Wall Ladder 1) To configure the ladder into the Wall Ladder position, configure the ladder in the stepladder configuration as described in position #1. Raise to desired height. 2) Lower one side of the inner section one rung. 3) Never use in this position free standing.
- Page 28 Position #6 2-Scaffold Bases 1) Separate the inner and outer sections completely by unlocking the “J” locks and Front Front sliding the outer sections off the inner section. Section Section 2) Place inner section in stepladder position. This is the first of two trestles required for the scaffold position.
-
Page 29: Accessories Available
WERNER KITS TELESCOPING MULTI LADDER REPLACEMENT KITS AVAILABLE To order any of the kits below call Werner Co. at 1-888-523-3371. spring loaded “J” lock 18 ft. MODEL end cap/foot ACCESSORIES AVAILABLE To order accessories below contact your local Werner distributor. - Page 32 This page intentionally left blank.
