Frigidaire FMF2K5BKQ0 Owner's Manual

Outdoor misting fan
Hide thumbs

Advertisement

Quick Links

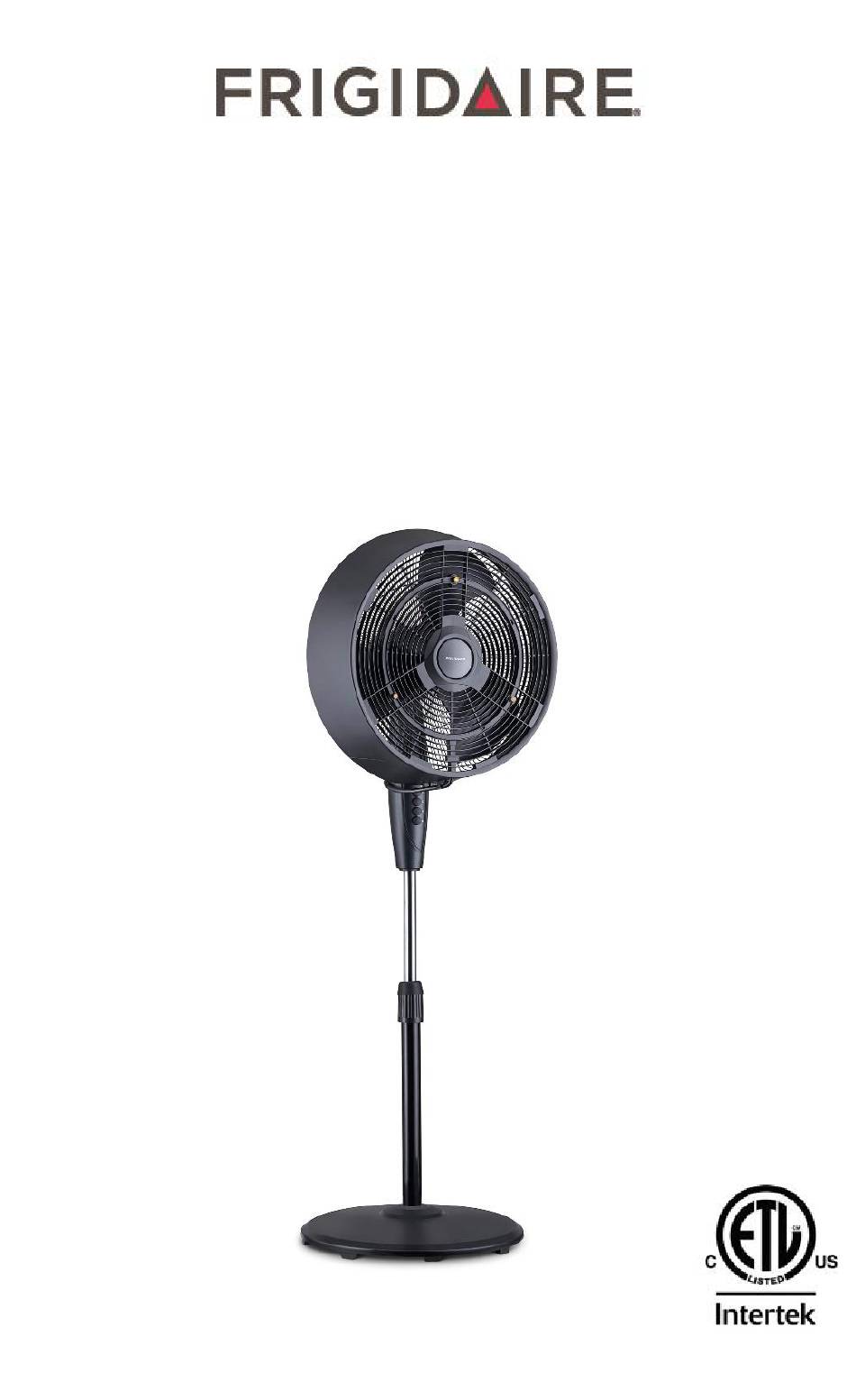

OUTDOOR MISTING
FAN
FMF2K5BKQ0
Owner's Manual
Manual v1.0

Advertisement

loading

  Related Manuals for Frigidaire FMF2K5BKQ0

  Summary of Contents for Frigidaire FMF2K5BKQ0

  • Page 1 OUTDOOR MISTING FMF2K5BKQ0 Owner’s Manual Manual v1.0...
  • Page 2: Table Of Contents

    FAN SPEEDS SPRAY NOZZLES AIRFLOW 1600 CFM COVERAGE 500 square feet Frigidaire is a registered trademark of Electrolux Home Products, Inc. All rights reserved. Manufactured under license by: NewAir, LLC 6600 Katella Ave, Cypress, CA 90630 Comments/questions: support@newair.com | 855-963-9247...
  • Page 3: Register Your Product Online

    REGISTER YOUR PRODUCT ONLINE Register Your Frigidaire Product Online Today! Take advantage of all the benefits product registration has to offer: Service and Support Diagnose troubleshooting and service issues faster and more accurately Recall Notifications Stay up-to-date on safety notices, system updates, and...
  • Page 4: Important Safety Instructions/Warnings

    IMPORTANT SAFETY INSTRUCTIONS/WARNINGS CAUTION: Read rules for safe operation and instructions carefully. When using any electrical appliance, basic safety precautions must be followed in order to reduce the risk of fire, electrical shock and/or injury to persons or property. Be sure to read all instructions before using this appliance and observe the following safety tips: To reduce the risk of fire or electrical shock, do not use this fan with any solid-state speed control device (e.g.
  • Page 5 This product employs overload protection (fuse). A blown fuse indicates an overload or short-circuit. If the fuse blows, unplug the product from the outlet. Replace the fuse as per the user servicing instructions and check the product. If the replacement fuse blows, a short-circuit may be present and the product should be discarded or customer service should be contacted immediately.
  • Page 6: Parts Lists

    PARTS LIST Front grille Control panel Misting line Blade cap Thumb screw Filter washer Fan blade Power cord Water valve Plastic nut Waterproof cover Fan base Rear grille M. Misting line clip Screw for base Motor shaft Internal pole Clutch knob Height adjustment knob Motor housing External pole...
  • Page 7: Assembly Instructions

    ASSEMBLY INSTRUCTIONS Before beginning assembly of this product, make sure all parts are included in the box (see chart on previous page). If any part is missing or damaged, do not attempt to assemble the product. Contact customer service for replacement parts. You should only need a philips head screwdriver for assembly, and about 15 minutes of time.
  • Page 8 Unscrew the screw (U) from the external pole (P) and attach the external pole (P) to the base (T) by tightening the screw (U). Remove the height adjustment knob (O) by unscrewing it counterclockwise. Use your finger to pull out the internal pole (N), slide height adjustment knob (O) over internal pole (N).
  • Page 9: Operating Instructions

    OPERATING INSTRUCTIONS FAN-ONLY MODE Plug in the unit, press the reset button on the GFCI, and select a fan speed on the control panel. The fan will start running as soon as you select a fan speed. To start/stop fan oscillation, push down/pull up the clutch knob (G).
  • Page 10: Cleaning And Maintenance

    CLEANING AND MAINTENANCE Disconnect from the electrical socket during cleaning or initial assembly. To ensure adequate air circulation to the motor, keep the vents at the rear of the motor housing clear of dust, dirt, etc. Unplug the fan before using a vacuum cleaner or compressed air to clean the grilles. It should not be necessary to disassemble the fan to clean it.
  • Page 11 USER SERVICING INSTRUCTIONS Grasp plug and remove from the receptacle or other outlet device. Do not unplug by pulling on cord. Open fuse cover. Slide open fuse access cover on top of attachment plug towards blades. Remove fuse carefully. Insert the tip of your tool into fuse slot (close with the terminal), then prize the fuse gradually and slowly, but not overexert.
  • Page 12: Troubleshooting

    TROUBLESHOOTING Problem Possible Causes Solution The unit may be Check if using the wrong The fan has no plugged in using a voltage. power. different voltage. The circuit breaker Reset the circuit breaker or may be tripped or check for a broken fuse. there is a blown fuse.
  • Page 13: Limited Manufacturer's Warranty

    For technical support and warranty service, please email support@newair.com Frigidaire is a registered trademark of Electrolux Home Products, Inc. All rights reserved. Manufactured under license by: NewAir, LLC 6600 Katella Ave, Cypress, CA 90630...
