Carson Hobby Magnifier Instructions For Use

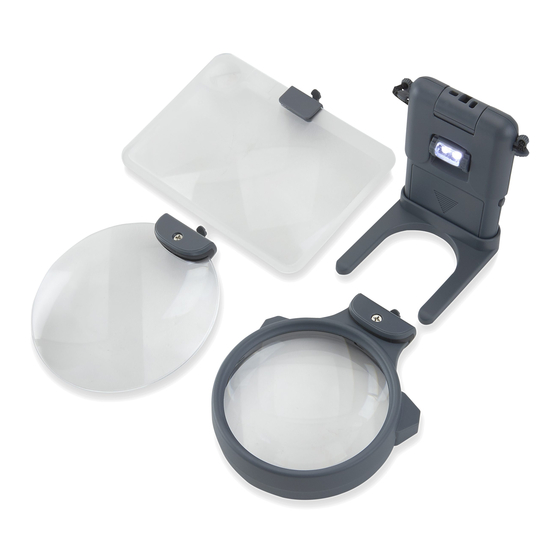

Hands-free led magnifier set

HOBBYMAGNIFIER

HANDS-FREE LED MAGNIFIER SET

Instructions for Use

Installing the Batteries

Pull open battery door and remove. Insert 3 AAA batteries according to the polarity indicators marked on

the inside of battery compartment. Replace battery cover when complete.

WARNING: INSPECT ALL BATTERIES FOR SIGNS OF CORROSION OR LEAKAGE. DO NOT EXPOSE TO FIRE OR EXCESSIVE HEAT. USE ALKALINE

BATTERIES ONLY, RECHARGEABLE BATTERIES NOT RECOMMENDED. INSERT ALL BATTERIES IN THE DIRECTION INDICATED.

Insert body into base stand as shown in Figure 3. Body will click into base when inserted correctly (see

Fig. 4).

Fig. 3

Fig. 1

Fig. 4

HM-30

Fig. 2

Table of Contents

Do you have a question about the Hobby Magnifier and is the answer not in the manual?

Page 1 HM-30 HOBBYMAGNIFIER HANDS-FREE LED MAGNIFIER SET Instructions for Use Installing the Batteries Pull open battery door and remove. Insert 3 AAA batteries according to the polarity indicators marked on the inside of battery compartment. Replace battery cover when complete. Fig. 1 Fig.
Page 2 Inserting Lenses Choose desired lens and insert into body as shown in Figure 5. Adapter will click when lens is inserted securely (Fig 6). Fig. 5 Fig. 6 Adjusting Lens Angle Pull lens up or down to position at desired angle. Lens will click into place in various positions (Fig. 7-9).
Page 3 For Use as Book Light Press buttons on side of base and pull off lens adapter (Fig. 12-13). Rotate light compartment to direct light toward desired viewing subject (Fig. 14). Turn light off when not in use. Fig. 12 Fig. 13 Fig.
Page 4 If you experience any difficulties, please contact us and we will be happy to help you. In the U.S.A. In the U.K. In the E.U. Phone: 1-631-963-5000 Phone: +44 (0) 1938 557440 Phone: +44 (0) 1938 557440 Email: info@carson.com Email: uksupport@carson.com Email: eusupport@carson.com For warranty information, visit www.carson.com/warranty...

Hm-30
