1
Introduction and UUC Performance Requirements ................................................................. 2
Table 1-1 .................................................................................................................................. 2
2
Measurement Standards and Support Equipment Performance Requirements ........................ 2
Table 2-1 UUC Accuracy Requirements and Description ....................................................... 2
Table 2-2 Minimum Use Specification .................................................................................... 2
Table 2-3 Actual Equipment Specification .............................................................................. 2
Table 2-4 Calibration Environmental and Warm-up Requirements ........................................ 3
3
Resistance Calibration .............................................................................................................. 3
4
DC Voltage Calibration* .......................................................................................................... 5
5
Performance Requirements ...................................................................................................... 6
Table 5-1 Performance Requirements and Calibration Data for PosiTest LPD ...................... 6
Management Procedure 2559 Rev A
Calibration Procedure

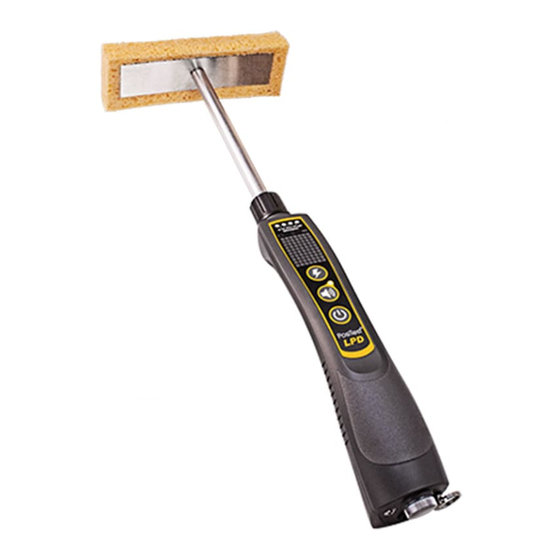

PosiTest LPD Low voltage Pinhole Detector
Table of Contents
Management Procedure 2559
Revision: A
Date Issued: November 9, 2016
Date Revised:
Page 1 of 7
Advertisement
Related Manuals for DeFelsko PosiTest LPD
Summary of Contents for DeFelsko PosiTest LPD
-
Page 1: Table Of Contents
Table 2-4 Calibration Environmental and Warm-up Requirements ........3 Resistance Calibration ......................3 DC Voltage Calibration* ......................5 Performance Requirements ...................... 6 Table 5-1 Performance Requirements and Calibration Data for PosiTest LPD ...... 6 Management Procedure 2559 Rev A Page 1 of 7... -
Page 2: Introduction And Uuc Performance Requirements
Introduction and UUC Performance Requirements This procedure describes the calibration of DeFelsko Corporation PosiTest LPD. Table 1-1 Models Measurement Range 80 – 400 kΩ PosiTest LPD 9 – 90 VDC The unit being calibrated will be referred to as the UUC (unit-under-calibration). -
Page 3: Resistance Calibration
Caution: The instructions in this Calibration Procedure relate specifically to the equipment and conditions listed in Section 2. If other equipment is substituted, the information and instructions must be interpreted accordingly. Table 2-4 Calibration Environmental and Warm-up Requirements Measurement Standards & Support Equipment Temperature: 23 ±... - Page 4 Set the UUC to 9V and adjust the decade box to 90 kΩ. 3.4.1 If the UUC is constantly alarming as indicated by flashing the remaining 3 voltage LEDS, increase the resistance on the RS-201, 100 Ω at a time, until the UUC stops alarming or alarms intermittently.
-
Page 5: Dc Voltage Calibration
Set the UUC to 67.5V, 90 kΩ and adjust the decade box to 90 kΩ. Repeat steps 3.4.1 and 3.4.2. Set the UUC to 90V and adjust the decade box to 400 kΩ. Repeat steps 3.4.1 and 3.4.2 but increase the resistance on the RS-201 1 kΩ at a time DC Voltage Calibration* * optional calibration requiring the use of a calibrated multimeter. -
Page 6: Performance Requirements
4.1.7 Set the UUC to 90V and adjust the decade box to 400 kΩ. Record the voltage displayed on the multimeter. Performance Requirements Table 5-1 Performance Requirements and Calibration Data for PosiTest LPD Parameter Nominal Reading Resistance 90 kΩ... - Page 7 Management Procedure Change Notice Procedure Number: MP 2559 Revision Level: A Date of Change: November 9, 2016 Title: Calibration Procedure, PosiTest LPD Low voltage Pinhole Detector Reason for Change: • New product Description of Change: • New procedure I confirm I have read and understand the procedure and the change described above.
