Vermont Castings Encore 2550 Service Procedure

Replacing the refractory package

Hide thumbs Also See for Encore 2550:

Table of Contents

Download this manual

REPLACING THE REFRACTORY PACKAGE

1. Open the damper and remove the handle stub (faucet). Use an Allen key wrench to loosen the Allen bolt in the

base of the damper handle stub. Pull the handle off the damper rod.

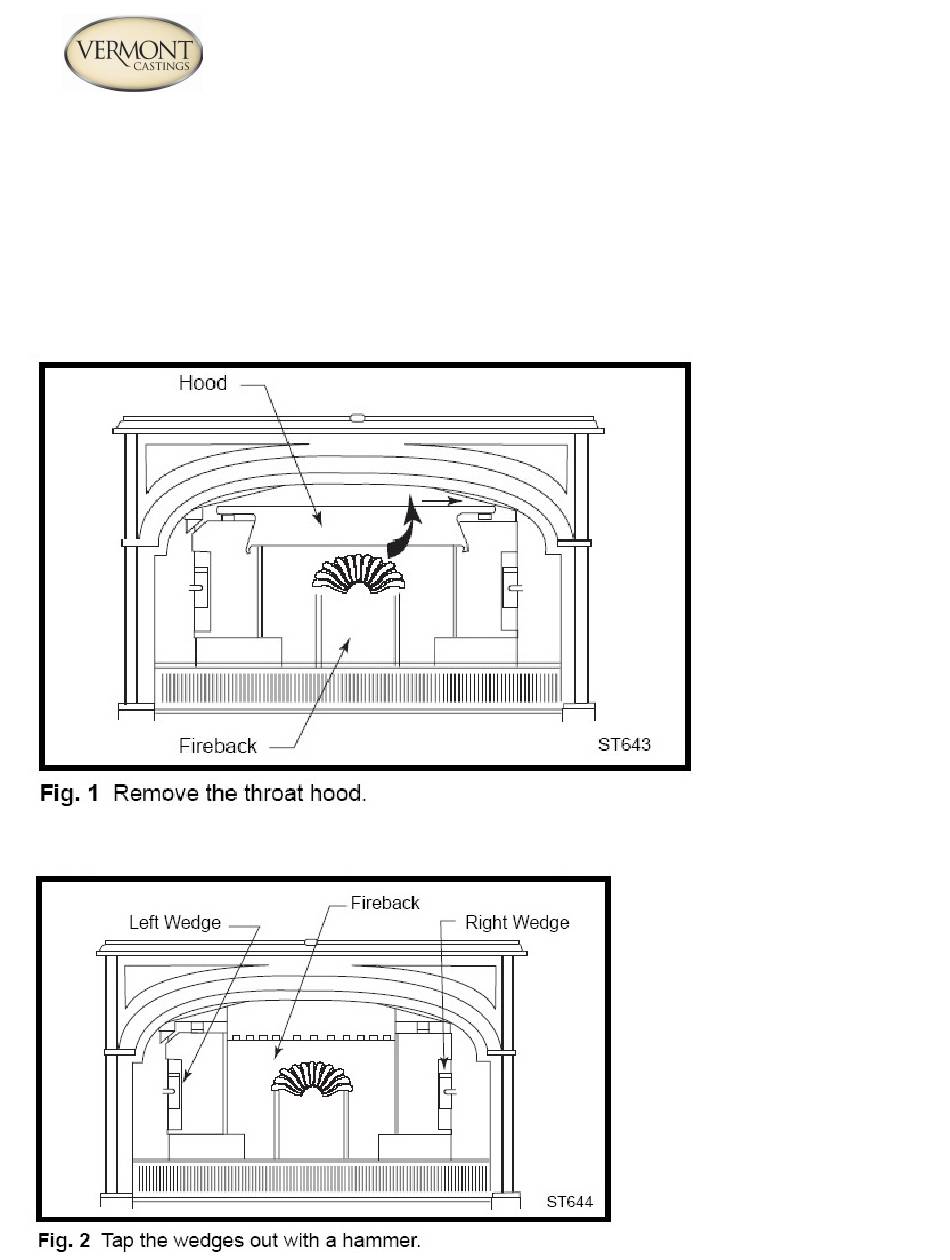

3. Remove the throat hood; swing its bottom edge forward and

end drops from its supports. Take it out of the stove.

4. Use a hammer to tap the two wedges upward and out of the stove

Encore 2550 Service Procedure

slide the hood to one side until the trailing

then

Table of Contents

Do you have a question about the Encore 2550 and is the answer not in the manual?

Page 1 Encore 2550 Service Procedure REPLACING THE REFRACTORY PACKAGE 1. Open the damper and remove the handle stub (faucet). Use an Allen key wrench to loosen the Allen bolt in the base of the damper handle stub. Pull the handle off the damper rod.
Page 2 5. Remove the lower fireback by pulling the upper edge toward the front of the stove. Then lift it and angle it out of the stove through the front door. Scoop out any ashes in the bottom groove where the lower edge of the lower fireback sits.
Page 3 13. Install the new refractory package. Replace the catalyst. Install the access panel. 14. Re-install the upper fireback assembly. If held in place with gasket, ensure it is in good condition before re- installing. If held by cement, clean the grooves in the rear of the stove and the rear of the upper fireback before re-cementing.
