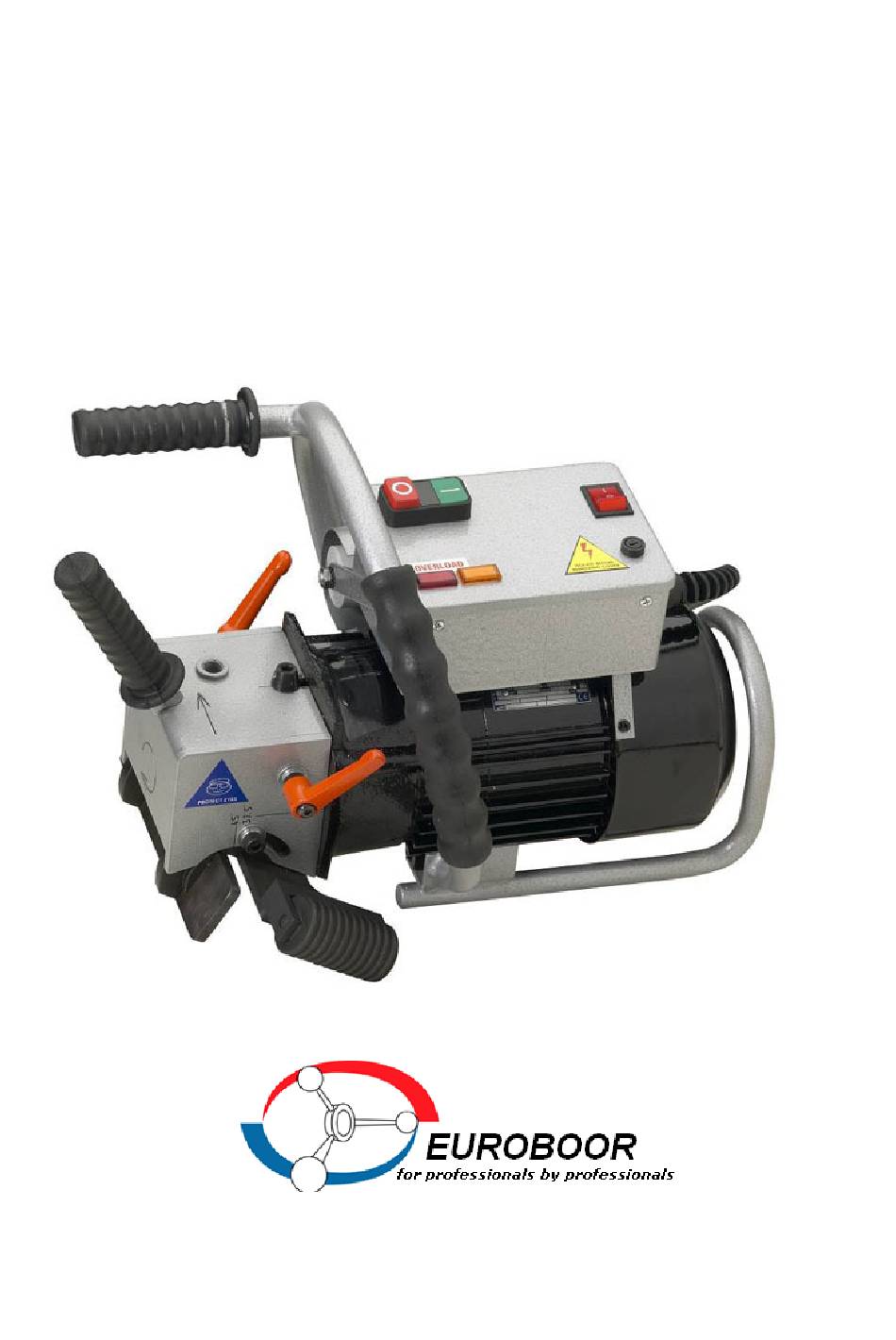

- Page 1 SAFETY INSTRUCTIONS AND OPERATORS MANUAL FOR BEVELLING MACHINE LKF.200...
-
Page 3: Technical Data
The beveling machine type LKF. 200 are designed for milling steel edges prior to welding. It is reliable and simple to use. The LKF. 200 machine can be used for beveling straight and curved steel sheets and pipes. It allows you to bevel steel edges between 15 and 60 degrees. -
Page 4: Start-Up And Operation
START UP AND OPERATION LKF. 200 comes in a ready-to-use state. The only operation that needs to be carried out is adjusting it to workpiece thickness and the beveling angle. Precise instructions how to do it are given below in point 5. Plug machine into mains. - Page 5 BEVELLING PIPES Special optional roller attachment (Art. nr LKF.225 ) allows you to bevel pipes and curves. 1. To prepare the machine for work on pipes take the slide (#17) off the machine and replace it with the pipe attachment (LKF.225). 2.
- Page 6 SETTING REQUIRED ANGLE AND WIDTH OF CUT There are two adjustments mechanisms: 1. for adjusting the beveling angle required, 2. for adjusting the machine to the thickness of steel which is being cut. - Before you start any adjustments make sure that the machine is unplugged from the main power.
- Page 7 5. If the width of cut is small then swap all inserts according to drawing No4, thus extending their life even longer. D.nr. Art. nr. Description LKF.0001 Motor Assembly LKF.0041 Stop pin LKF.0006 Holder set LKF.0011 Cushion Washer LKF.0016 Bolt LKF.0021 LKF.0026 Feed Bolt...
- Page 8 Fuse holder 020.0017 Fuse F2A LKF.0336 Screw not on drawing LKF.0406 Tool Box not on drawing LKF.0411 Tool for bearing nut not on drawing LKF.0416 Pusher tool not on drawing LKF.0421 Puller tool not on drawing CAS.200/3 Metal case for LKF.200...
