- Page 1 ABSOLARE Hybrid Mono Amplifier User Manual...
- Page 2 ABSOLARE Hybrid Mono Amplifier User Manual 1.2...
-
Page 3: Table Of Contents
6.1. General Operation ......................8 6.2. SEL Switch ........................8 6.3. ‘PIN 1’ Switch ........................8 6.4. GND Switch ........................8 6.5. GAIN Switch ........................9 7. Troubleshooting and Maintenance ..................10 8. Technical Specifications ....................... 10 ABSOLARE Hybrid Mono Amplifier User Manual 1.2... -
Page 4: General Description

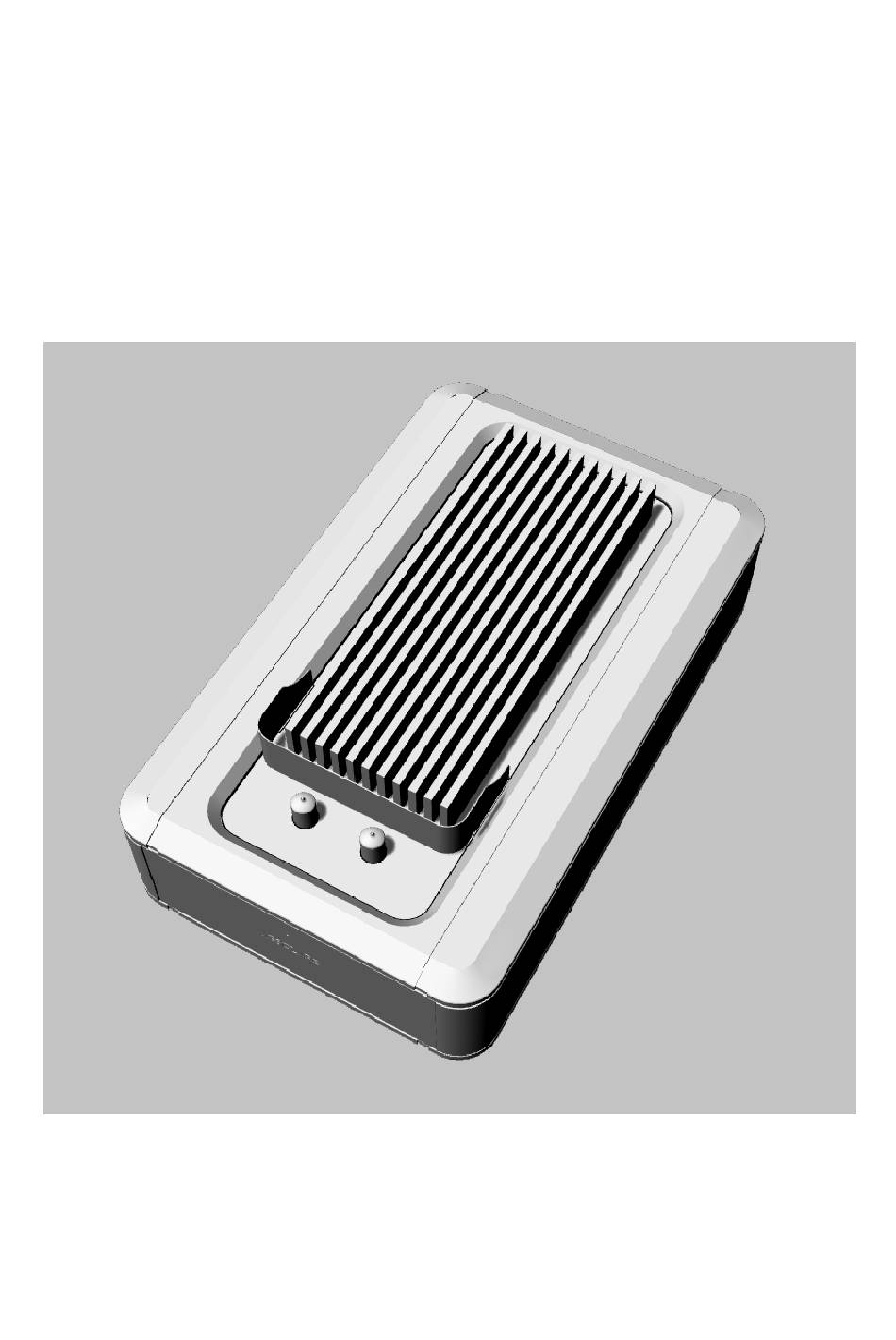

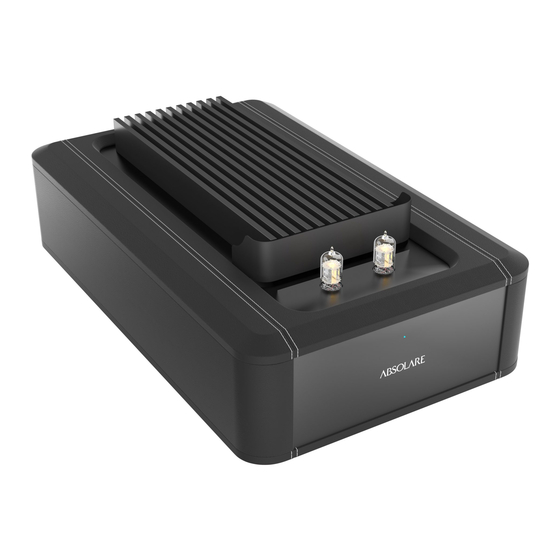

1. General Description The Absolare Hybrid Mono Amplifier is a tube input, solid state output, hybrid design monoblock power amplifier, supplied in matched pairs for stereo amplification. The single ended tube input section is inspired by the Absolare Preamplifier using two 12AU7/ECC82 (or compatible) tubes. -
Page 5: Unpacking And Placement
2 inches (5 cm) clearance above each Amplifier to allow sufficient ventilation. Each Hybrid Mono Amplifier is designed to be supported by separate support feet. They do not have support feet fixed in place. Feet can affect the sound quality significantly. -
Page 6: Installing The Tubes
12AU7 / ECC82 tubes have one missing pin acting as a correct positioning key. Align the missing pin with the missing hole in the tube socket while inserting. ABSOLARE Hybrid Mono Amplifier User Manual 1.2... -
Page 7: Connecting The Cables
Amplifier can maintain output specifications into impedance variations down to 2.5Ω. CAUTION: Negative (black) speaker binding posts are not at ground level electrically. Do not connect them to chassis ground, or to each other in any way. ABSOLARE Hybrid Mono Amplifier User Manual 1.2... -
Page 8: Operating The Unit
6. Operating the Unit 6.1. General Operation Before turning on each Absolare Hybrid Mono Amplifier, be sure that all tubes are installed and all cables are connected securely. After turning each Amplifier on, the power indicator LED on the front face plate will start to blink. -
Page 9: Gain Switch
6.5. GAIN Switch The tube input stage and solid-state output stage are transformer coupled inside the amplifier. At position, the gain switch attenuates the sound level by -6dB through a transformer setting. ABSOLARE Hybrid Mono Amplifier User Manual 1.2... -
Page 10: Troubleshooting And Maintenance
- Check grounding of power, input cables and source If the problem is persistent, contact your nearest ABSOLARE dealer. 8. Technical Specifications - Input Sensitivity: 1.3 Volts @ Hi-gain setting, 2.6 Volts @ Low-gain setting - Tubes: 2 x 12AU7 (ECC82 or compatible) - Inputs: 1 RCA unbalanced + 1 XLR balanced - Input impedance: 10 kΩ... - Page 11 ABSOLARE USA LLC 40 Pemberton Road, Nashua, New Hampshire, 03063 Phone: +212-229-1842 E-mail: info@absolare.com ABSOLARE SERVICE EUROPE Mozartstraat 157, 1962AL Heemskerk, Netherlands Phone: +31 61 399 3049 E-mail: info@absolare.nl...
- Page 12 © 2020 ABSOLARE ABSOLARE Hybrid Mono Amplifier User Manual 1.2...
