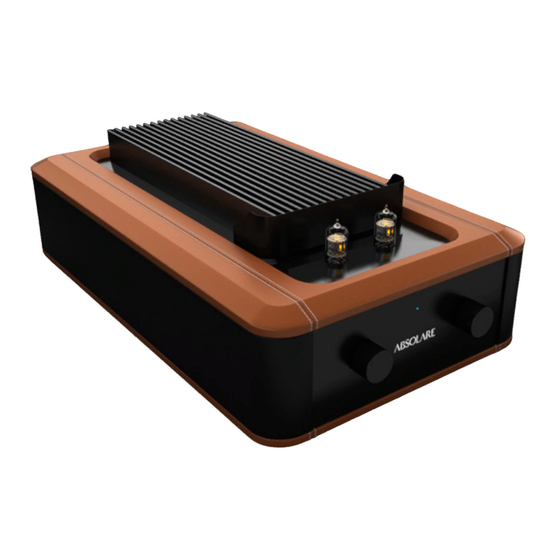

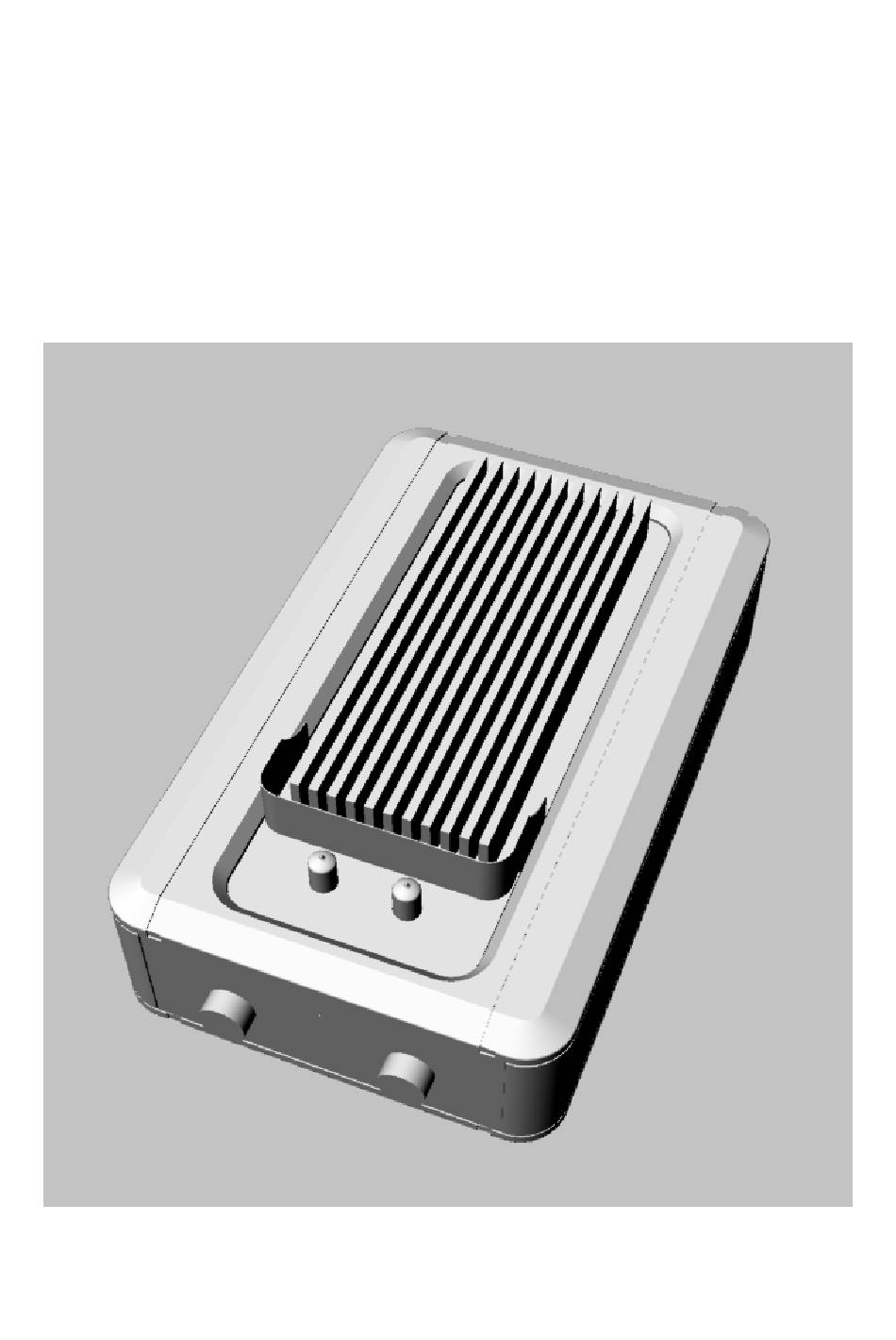

- Page 1 ABSOLARE Integrated Amplifier User Manual...
- Page 2 ABSOLARE Integrated Amplifier User Manual 1.2...
-
Page 3: Table Of Contents
6. Operating the Unit ......................... 8 6.1. General Operation ......................8 6.2. Setting the Volume Level ....................8 6.3. Input Transformer Switch ....................8 7. Troubleshooting and Maintenance ..................9 8. Technical Specifications ......................9 ABSOLARE Integrated Amplifier User Manual 1.2... -
Page 4: General Description
- Do not connect unbalanced subwoofer input terminals to speaker outputs! Absolare Integrated Amplifier has a balanced output stage. Neither of the speaker output terminals should be connected to ground. Doing so may permanently damage the amplifier. Please consult your dealer about correct subwoofer connection. -
Page 5: Unpacking And Placement
2 inches (5 cm) clearance above the Amplifier to allow sufficient ventilation. The Integrated Amplifier is designed to be supported by separate support feet. It does not have support feet fixed in place. Feet can affect the sound quality significantly. -
Page 6: Installing The Tubes
12AU7 / ECC82 tubes have one missing pin acting as a correct positioning key. Align the missing pin with the missing hole in the tube socket while inserting. ABSOLARE Integrated Amplifier User Manual 1.2... -
Page 7: Connecting The Cables
Amplifier can maintain output specifications into impedance variations down to 2.5Ω. CAUTION: Negative (black) speaker binding posts are not at ground level electrically. Do not connect them to chassis ground, or to each other in any way. PLEASE NOTE: This unit is not bridgeable. ABSOLARE Integrated Amplifier User Manual 1.2... -
Page 8: Operating The Unit
6. Operating the Unit 6.1. General Operation Before turning on the Absolare Integrated Amplifier, be sure that all tubes are installed and all cables are connected securely. After turning the Amplifier on, the power indicator LED on the front face plate will start to blink. -
Page 9: Troubleshooting And Maintenance
Noise / hum in the sound - Check grounding of power, input cables and source If the problem is persistent, contact your nearest ABSOLARE dealer. 8. Technical Specifications - Input Sensitivity: 0.5 Volts (Balanced Version 2 Volts) - Tubes: 2 x (12AU7 / ECC82) – every unit supplied with select NOS tubes - Inputs: 4 RCA with Single-Ended / 4 XLR with Balanced model - Input impedance: 100 kΩ... - Page 10 ABSOLARE USA LLC 40 Pemberton Road, Nashua, New Hampshire, 03063 Phone: +212-229-1842 E-mail: info@absolare.com ABSOLARE SERVICE EUROPE Mozartstraat 157, 1962AL Heemskerk, Netherlands Phone: +31 61 399 3049 E-mail: info@absolare.nl...
