- Page 1 NEW BENCHMARK OF MEASURING LDM100 LASER DISTANCE METER OPERATION MANUAL...
-
Page 2: Service Support
Service Support Please contact your local dealer or contact us through service email : [ reps@precaster.com.tw ] for further assistance. Safety Information a. This is a Class 2 laser tool, laser radiation is emitted from this product and is manufactured to comply IEC 60825-1: 2007, EN 60825-1:2007, EN 61326-1:2013 and CRF21, parts 1040.10 and... -
Page 3: Error Code

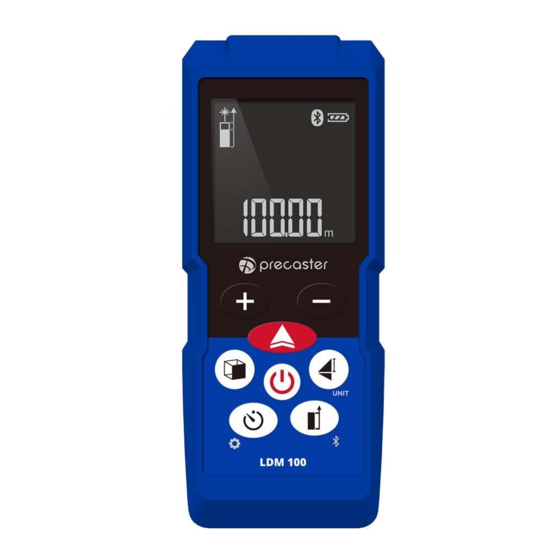

Out of working temperature Measure in an environment within specified working temperature Err07 Ambient light is too strong Measure in a darker place (shadow target) Specification Model LDM100 Measuring Range 0.05m~100m Resolution 0.001m Accuracy ±1.5mm Measuring Speed 0.5 seconds Laser Type 650nm, Class II, <1mW... - Page 4 LDM100 OPERATION MANUAL www.precaster.com.tw Overview A. LCD B. Addition C. Subtraction D. Single measure / Power / Tap and hold continuous measure E. Area / Volume / Stake out F. Countdown (3~15s) / Tap and hold G. Indirectly height (Indirectly height measure I ->...
-
Page 5: Battery Installation & Power Status
NEW BENCHMARK OF MEASURING Battery Installation & Power Status i. This unit is powered by 2 x AAA Batteries. ii. Remove battery lid and observing correct polarity before install batteries. iii. When the icon appears , it means fully charged battery. iv. -
Page 6: Measurement Addition & Subtraction
LDM100 OPERATION MANUAL Measurement Addition & Subtraction 1. After measure, click , the data of measurement can be set to be added or subtracted. 2. In this case, the second measurement (Add/Sub) can be performed. The machine will automatically calculate the pen distance and the distance of the previous pen and display the result and the process on the screen. - Page 7 NEW BENCHMARK OF MEASURING · Stake-out distance 1. Click three times, to enable Stake-out distance. 2. Click , set up the length of stake-out, tap and hold can add the number quickly. 3. Click , you can switch Integer and decimal places. 4.
- Page 8 2. You can send the data through your favorite app., e.g: Line, WhatsAPP, Facebook ..etc, share to your friends. 3. You can scan QR code to download app on your smartphone and ipad. 4. You can get more information at this website http://www.precaster.com.tw/im2...
