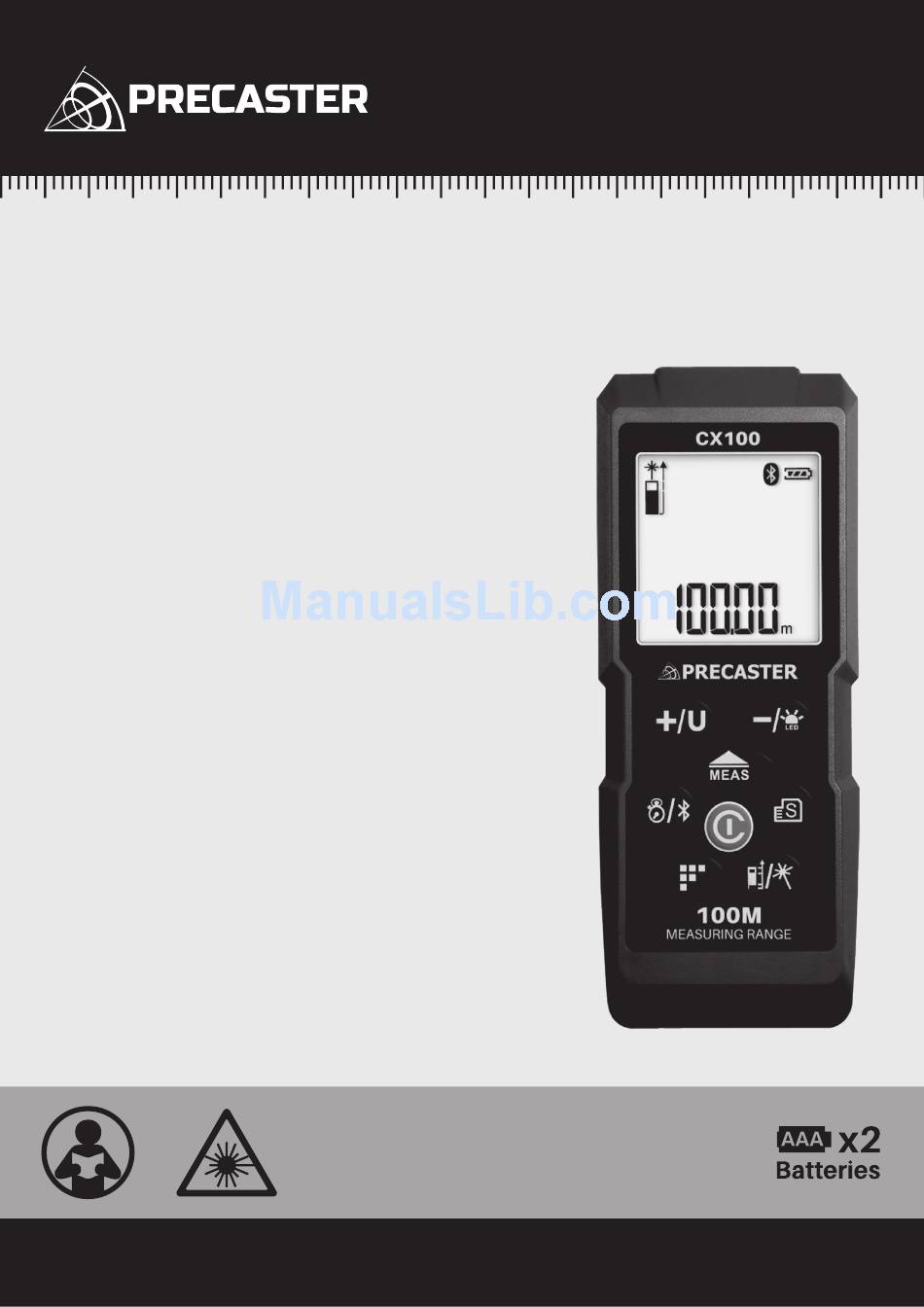

- Page 1 NEW BENCHMARK OF MEASURING LASER DISTANCE METER CX100 Operation Manual CX100 Operation Manual www.precaster.com.tw...
- Page 2 CX100 OPERATION MANUAL WWW.PRECASTER.COM.TW . Safety Information 1. This is a Class 2 laser tool, laser radiation is emitted from this product and is manufactured to comply IEC 60825-1: 2007, EN 60825-1:2007, EN 61326-1:2013 and CRF21, parts 1040.10 and 1040.11.
-
Page 3: Table Of Contents
∙ Inside The Box --------------------------------------- 2 ∙ Measuring Functions ----------------------------------- 6 ∙ Specification Area Measurement ∙ Overview for CX100 -------------------------------- 3 Volume Measurement ∙ Overview for Screen Indirect Measure (Pythagorean) I, II, III ∙ Battery Installation & Power Status ------------ 4 Indirect Measure (Angle Sensor) IV, V, VI ∙... -
Page 4: Overview For Cx100
CX100 OPERATION MANUAL WWW.PRECASTER.COM.TW . Overview for CX100 ∙ Laser Receiving Window ∙ LCD ∙ Laser Emitted Window ∙ Addition / Unit ∙ Subtraction / Backlight ∙ Measure ∙ Measurement Records ∙ Timer / Bluetooth ∙ Clear / Power ∙ Functions ∙... -
Page 5: Battery Installation & Power Status
NEW BENCHMARK OF MEASURING . Battery Installation & Power Status 1. This unit is powered by 2 x AAA Batteries. 2. Remove battery lid and observing correct polarity before install batteries. 3. Battery level is showed on screen with batty icon on screen 4. -
Page 6: Measurement Reference
NEW BENCHMARK OF MEASURING . Measurement Reference 1. There are four reference positions for measurement . They are back of the unit, front of the unit, tripod thread and the spike 2. Click to select the proper position. . Measurement Addition & Subtraction 1. -
Page 7: Measuring Functions
CX100 OPERATION MANUAL WWW.PRECASTER.COM.TW . Measuring Functions Area Measurement 1. Click to enable Area measurement. 2. Laser will be activated when entering area measurement mode. 3. Follow the instructions on main screen to measure WIDTH and LENGTH. 4. After finish all the instructions, the result [AREA] will be showed on screen. -
Page 8: Stake-Out Measurement
NEW BENCHMARK OF MEASURING •Tilt the device to proper angle than press measure to measure the first and second length of hypotenuse •The angel will be fixed and length and hight will be display on the screen also. 6. Indirectly Height Measurement VI is design to get difference between heights by measuring two length of hypotenuse. -
Page 9: Store Measurement To Memory And Lookup
NEW BENCHMARK OF MEASURING . Store Measurement to Memory and Lookup 1. When you want to add the measurements on the screen, press to add to memory. You could find the location in memory on the top of screen. 2. To lookup stored measurements, press and hold to enter the lookup mode. -
Page 10: Im² App &Bluetooth Setup
CX100 OPERATION MANUAL WWW.PRECASTER.COM.TW . iM² app & Bluetooth Setup For the model supported Bluetooth could connected with phones support BLE4.0, For Bluetooth version on your phone, please contact with your phone manufacturer. We currently offer Measurement Kit on iTune and Play Store. -
Page 11: Calibration Of Angle Sensor
NEW BENCHMARK OF MEASURING . Calibration of angle sensor 1. Find a leveled and flat surface, such as table before start calibration. 2. Turn the device off. 3. Tap and hold function key and turn the device on to enter calibration mode [CAL0] 4. - Page 12 Ambient light is too strong Measure in a darker place (shadow target) . Service Support Please contact your local dealer or contact us through servise email : [ reps@precaster.com.tw ] for further assistance. CX100 Operation Manual www.precaster.com.tw Precaster Enterprises CO., LTD. Made in Taiwan...
