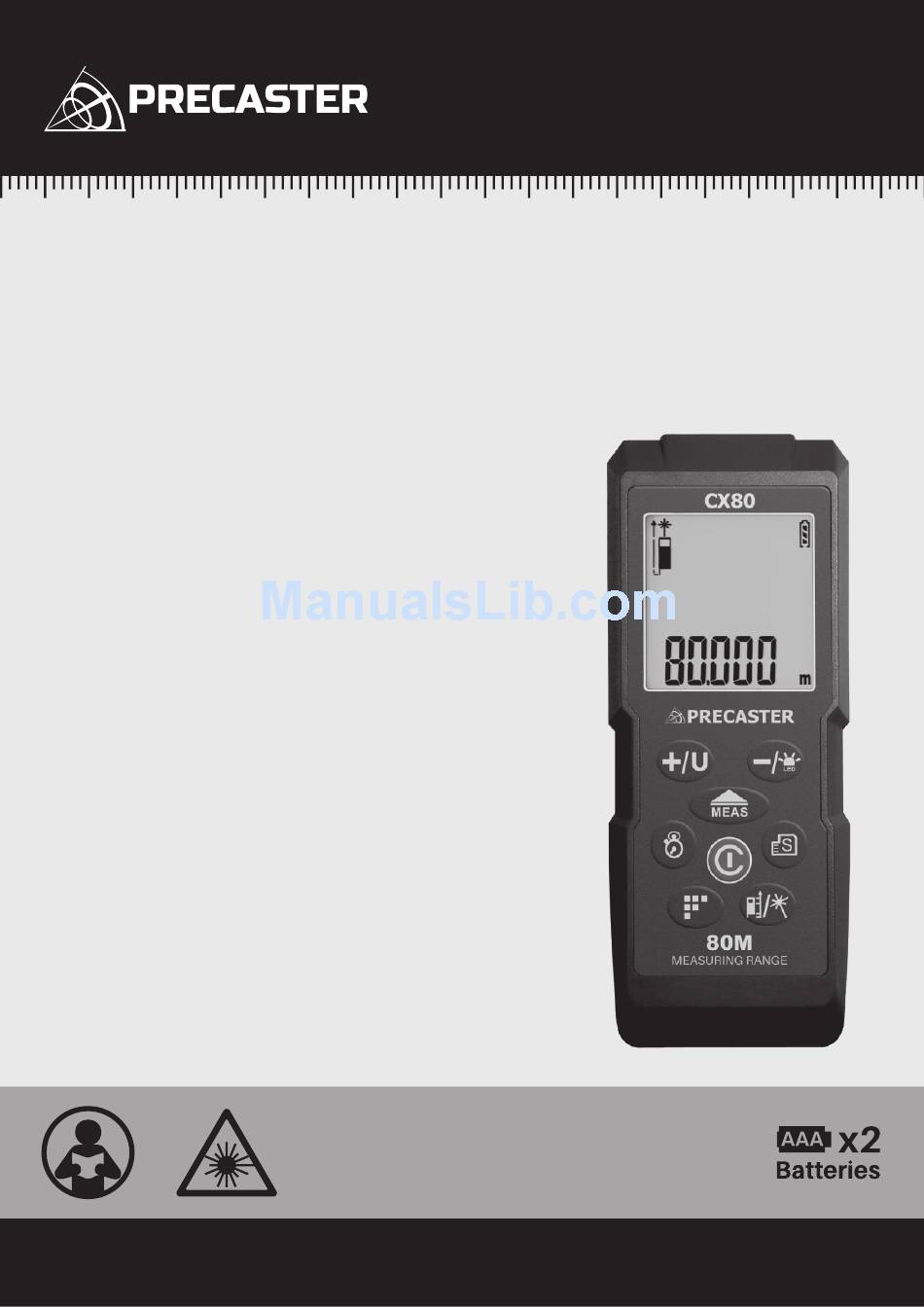

- Page 1 NEW BENCHMARK OF MEASURING LASER DISTANCE METER CX80 Operation Manual CX80 Operation Manual www.precaster.com.tw...
-
Page 2: Safety Information
6. Product complies with EMC Test according to EN61000-6-3:2001+A11:2004, EN61000-6-1:2001, EN61326-1:2013, IEC 61326:2012 and FCC Test according to PART 15. . Inside The Box ∙ CX80 Laser Distance Meter x1 ∙ AAA Battery x2 ∙ Operation Manual x1 ∙ Carrying Case x1 ∙... -
Page 3: Overview For Screen
CX80 OPERATION MANUAL WWW.PRECASTER.COM.TW . Overview for CX80 ∙ Laser Receiving Window ∙ LCD ∙ Laser Emitted Window ∙ Addition / Unit ∙ Subtraction / Backlight ∙ Measure ∙ Timer ∙ Measurement Records ∙ Clear / Power ∙ Functions ∙ Reference / Laser Point... -
Page 4: Battery Installation & Power Status
NEW BENCHMARK OF MEASURING . Battery Installation & Power Status 1. This unit is powered by 2 x AAA Batteries. 2. Remove battery lid and observing correct polarity before install batteries. 3. Battery level is showed on screen with batty icon on screen 4. -
Page 5: Measurement Reference
CX80 OPERATION MANUAL WWW.PRECASTER.COM.TW . Measurement Reference 1. There are four reference positions for measurement . They are back of the unit, front of the unit, tripod thread and the spike 2. Click to select the proper position. . Measurement Addition & Subtraction 1. - Page 6 NEW BENCHMARK OF MEASURING 2. Volume Measurement 1. Click twice to enable Volume measurement. 2. Laser will be activated when entering volume measurement mode. 3. Follow the instructions on main screen to measure WIDTH, LENGTH and HEIGHT. 4. After finish all the instructions, the result [VOLUME] will be showed on screen. 3.
-
Page 7: Backlight & Laser Pointer Mode
CX80 OPERATION MANUAL WWW.PRECASTER.COM.TW . Backlight & Laser Pointer Mode 1. Click and hold to turn on or off the backlight. 2. To enable Laser Pointer Mode, click and hold The laser indicator will display continuously until the mode is turned off. -
Page 8: Error Code
Ambient light is too strong Measure in a darker place (shadow target) . Service Support Please contact your local dealer or contact us through servise email : [ reps@precaster.com.tw ] for further assistance. CX80 Operation Manual www.precaster.com.tw Precaster Enterprises CO., LTD. Made in Taiwan...
