Hybrid DVR
Quick Start Guide
Note: Please read this instruction carefully for correct use of the product and preserve it for reference
purposes. All the examples and pictures used here are for reference only. There may be several technically
incorrect places or printing errors in this manual. The updates will be added into the new version of this
manual. The contents of this manual are subject to change without notice.This device should be operated
only from the type of power source indicatedon the marking label. The voltage of the power must be verified
before using the same.

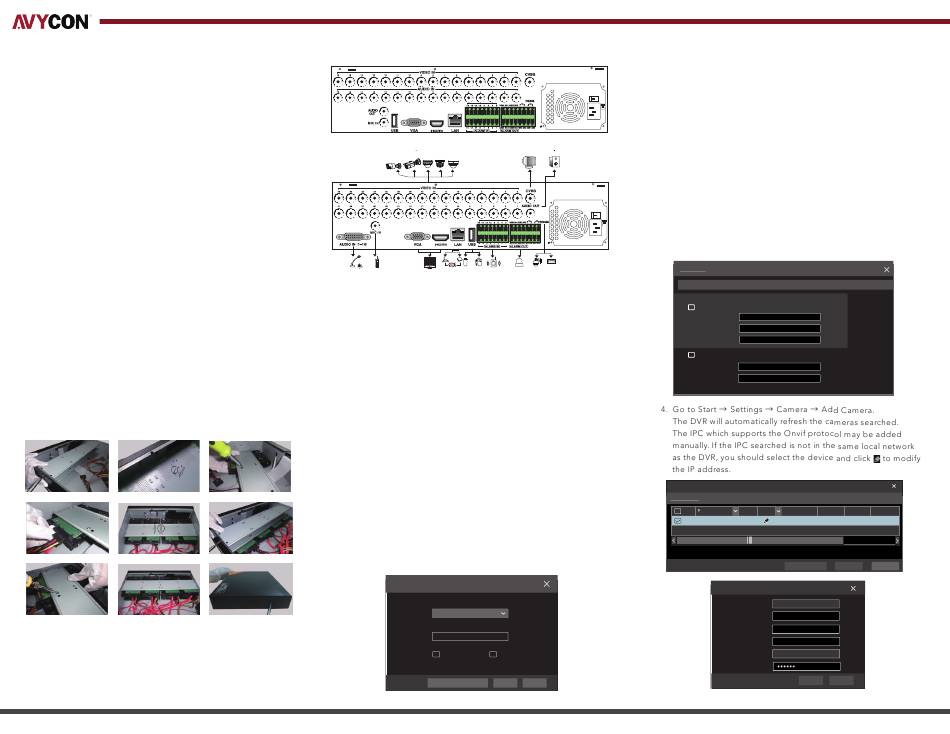

1. HDD Installation
This series of the product supports 8 SATA hard drives. Please
make sure that the device is powered off before the installation.
1. Remove the cover and loosen the screws to take out two mounting bars.
2. Screw the shorter pillar attached with the NVR into the bottom of the device.
3. Install back the lower mounting bar and tighten the screws of the lower HDD.
4. Connect the power and data cables and install the other three HDDs
according to above-mentioned method.
5. Screw the longer pillar into the lower mounting bar.
6. Install back the upper mounting bar and tighten the screw of the pillar.
7. Install the upper four HDDs and install back the cover.
2. Rear Panel Installation
Rear Panel for 16CH
Rear Panel for 32CH
The interfaces of the rear panel are for reference only.
3. Startup & Shutdown
• Startup
1. Connect the monitor and the power.
2. The device will boot and the power indicator will display blue.
3. A wizard window will pop up.
• Shutdown
Go to "Main Menu" and then select "Shutdown" icon. This will bring
up a shutdown window. The device will shut down by clicking "OK"
button. Then disconnect the power.
4. Login
For our T900 series DVRs, the default username is admin and the
default password is 123456. When starting T900 series DVR for the
first time, you will see a prompt to begin a startup wizard. You can
skip this wizard if you would like, but it will help you configure basic
settings for your DVR. The wizard may allow you to also change the
default password for better security. If you decide to skip the wizard,
to access the live view and start using your DVR click on the Start
button in the bottom left of the menu bar on the bottom of the
screen and then click on Login and enter in the default password.
Login
Username
admin
Password
Enter Password
Display Password
Log In Automatically
Edit Security Question
Login
5. Analog Camera Connection
First connect the camera to the DVR. Then go to Start→ Settings→
Camera→ Manage Camera→ Signal Access Set to checkmark the
video mode. The actual signals input shall correspond to the video
mode. Please refer to User Manual for details.
6.
Network Configuration & Add IP Camera
After you finish adding IP cameras, you can see the live images
through the monitor of the DVR. The following will mainly introduce
how to add the IP cameras via LAN/WAN.
• LAN
1. Set the network of the DVR. Go to Start → Settings → Network
→ TCP/IPv4. Input IP address, subnet mask, gateway, etc.
If using DHCP, please enable DHCP in both the DVR and the router.
2. Go to Start → Settings → Network → Port. Input HTTP port
(the default value is 80), server port (the default port is 6036).
3. Click "Apply" to save the settings.
TCP/IPv4
IP Address Settings
Ethernet Port 1 ( Online )
Obtain an IP address automatically
IP Address
Subnet Mask
Gateway
Obatin DNS server address automatically
Preferred DNS
Alternate DNS
Quickly Add
No.
IP Address
1
192.168.2.45
Selected: 1/1
Remain Bandwidth: 10 / 10 Mb
Cancel
Port
DDNS
E-mail
UPnP
NAT
Telnet
192 . 168 .
1 .
2
0
.
0
.
0 .
0
192 . 168 .
1 .
1
192 . 168 .
1 .
1
0
.
0
.
0 .
0
Add Camera
Manually Add
Port
Edit
Subnet Mask
Protocol
Model
Version
80
255.255.255.0
XXX
XXX
4.0.0.1.beta1
Default Password
Add
Cancel
Edit Camera
Mac Address
CE :98 :23 :75 :35 :22
IP Address
192 .168 . 1 . 45
Subnet Mask
255 . 255 . 255 . 0
192 .168 . 1 . 1
Gateway
Username
admin
Password
OK
Cancel
