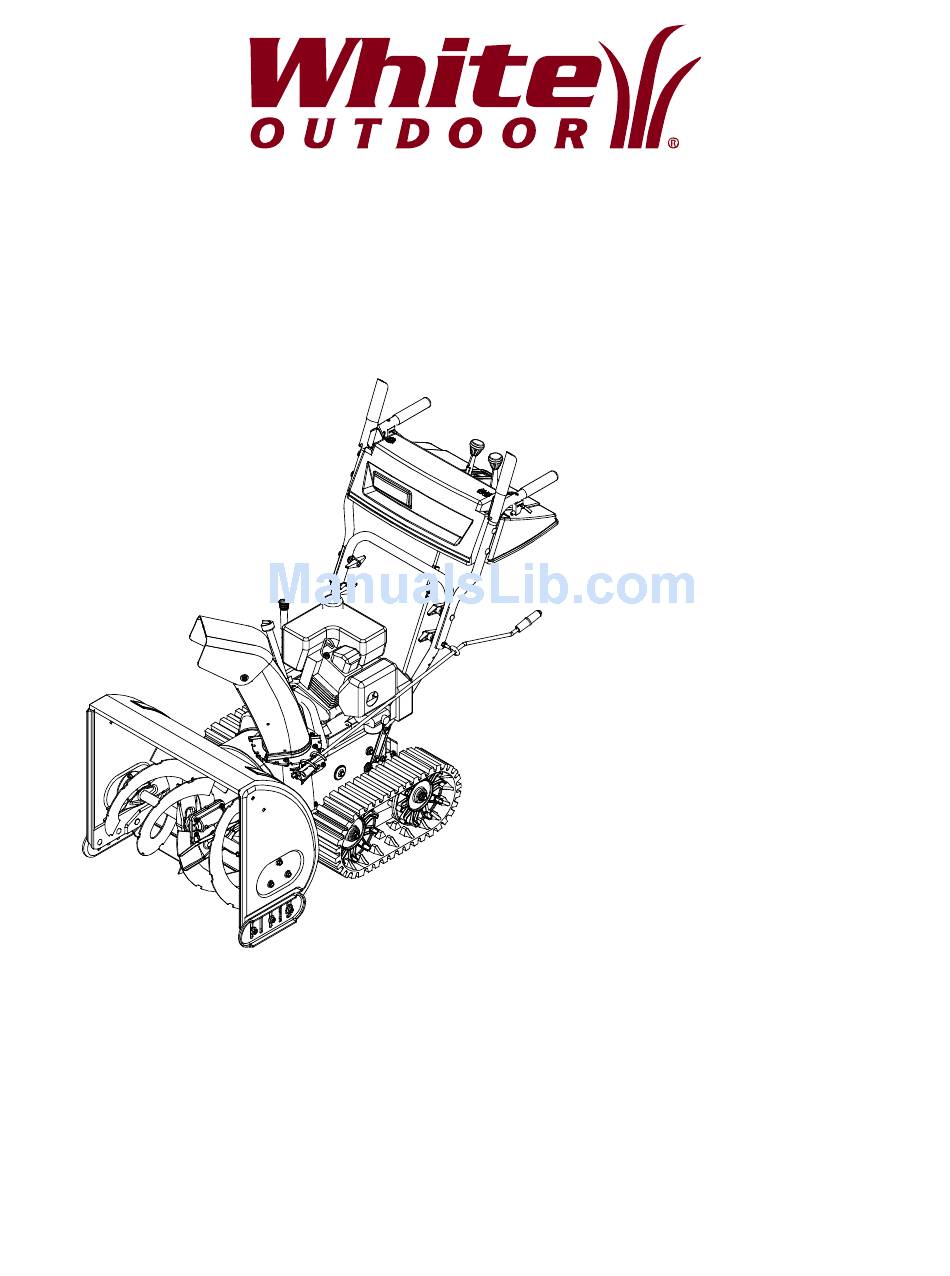

OPERATOR'S MANUAL
IMPORTANT: READ SAFETY RULES AND INSTRUCTIONS CAREFULLY
Warning:
This unit is equipped with an internal combustion engine and should not be used on or near any unimproved forest-
covered, brush-covered or grass-covered land unless the engine's exhaust system is equipped with a spark arrester meeting
applicable local or state laws (if any). If a spark arrester is used, it should be maintained in effective working order by the operator.
In the State of California the above is required by law (Section 4442 of the California Public Resources Code). Other states may have
similar laws. Federal laws apply on federal lands. A spark arrester for the muffler is available through your nearest engine authorized
service dealer or contact the service department, P.O. Box 361131 Cleveland, Ohio 44136-9722.
WHITE OUTDOOR PRODUCTS COMPANY P.O. BOX 361131 CLEVELAND, OHIO 44136-9722
PRINTED IN U.S.A.
ECO No. 01746
SNOW
THROWER
MODEL
Snow Boss 750T
770-10432.fm
FORM NO.
(6/00)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Snow Boss 750T and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for White Outdoor Snow Boss 750T

Summary of Contents for White Outdoor Snow Boss 750T

  • Page 1 Federal laws apply on federal lands. A spark arrester for the muffler is available through your nearest engine authorized service dealer or contact the service department, P.O. Box 361131 Cleveland, Ohio 44136-9722. WHITE OUTDOOR PRODUCTS COMPANY P.O. BOX 361131 CLEVELAND, OHIO 44136-9722 PRINTED IN U.S.A.

  • Page 2: Table Of Contents

    Before you start assembling your new equipment, please locate the model plate on the equipment and copy the information from it in the space provided below. The information on the model plate is very important if you need help from your local authorized White Outdoor Products dealer.

  • Page 3: Section 1: Important Safe Operation Practices

    SECTION 1: IMPORTANT SAFE OPERATION PRACTICES WARNING: This symbol points out important safety instructions which, if not followed, could endanger the personal safety and/or property of yourself and others. Read and follow all instructions in this manual before attempting to operate this machine. Failure to comply with these instructions may result in personal injury.

  • Page 4: Maintenance And Storage

    The clutch levers must operate easily in both directions and automatically return to the disengaged position when released. Never operate with a missing or damaged discharge chute. Keep all safety devices in place and working. Never run an engine indoors or in a poorly ventilated area.

  • Page 5: Section 2: Assembling Your Snow Thrower

    SECTION 2: ASSEMBLING YOUR SNOW THROWER NOTE: Any reference in this manual to the left or right side of the snow thrower is observed from the operator’s position. Unpacking • Remove screws from the top sides and ends of the shipping crate.

  • Page 6: Final Adjustments

    • Plug the wire from the headlight into the wire lead coming from the right side of the engine, beneath the fuel tank. Final Adjustments Auger Control Adjustment Check the adjustment of the auger control as follows: • Push forward on the auger control until the small rubber bumper contacts the upper handle.

  • Page 7: Section 3: Know Your Snow Thrower

    If the machine can be moved freely both forward and rearward when the traction control fully depressed, proceed as follows: • Loosen the jam nut on the traction drive cable and THREAD the cable in one full turn. • Recheck the adjustment and repeat adjustment as necessary.

  • Page 8: Section 4: Operating Your Snow Thrower

    Headlight The headlight is on whenever the engine is running. Shift Lever The shift lever is located in the center of the handle panel and is used to determine both ground speed and direction of travel. It can be moved into any of eight positions.

  • Page 9: Electric Starter

    • A plastic cup is provided inside the fuel fill opening on the fuel tank. Remove and discard this cup before filling up the tank. Use the separate fuel tank cap to close after fill-up. To Start Engine NOTE: If unit shows any sign of motion (drive or augers) with the clutch grips disengaged, shut engine off immediately.

  • Page 10: Section 5: Making Adjustment

    To Engage Track Drive • With the engine running near top speed, move the shift lever into one of the six FORWARD positions or two REVERSE positions. Select a speed appropriate for the snow conditions that exist. NOTE: Use slower speeds in higher snow and until you are familiar with the operation of the snow thrower.

  • Page 11: Section 6: Maintaining Your Snow Thrower

    Chute Directional Control And Support Bracket Adjustment If the spiral at the base of the chute directional control is not fully engaging with the notches in the lower chute assembly, the support bracket can be adjusted inward or outward as follows: •...

  • Page 12: Section 7: Servicing Your Snow Thrower

    Drive and Shifting Mechanism Lubricate at least once a season or after every 25 hours of operation. Remove the rear cover, lubricate any chains, sprockets, gears, bearings, shafts, and shifting mechanism at least once a season. Use engine oil or a spray lubricant.

  • Page 13: Belt Removal And Replacement

    NEVER replace the auger shear bolts with IMPORTANT: standard hex bolts. Any damage to the auger gearbox or other components as a result of doing so will NOT be covered by your snow thrower’s warranty. Shave Plate and Skid Shoes The shave plate and skid shoes on the bottom of the snow thrower are subject to wear.

  • Page 14: Off-Season Storage

    NOTE: The support bracket must rest on the stop bolt after the new belt has been assembled. Friction Wheel Stop Bolt Support Bracket Figure 16 Servicing Friction Wheel Rubber The rubber on the friction wheel is subject to wear and should be checked after 25 hours of operation, and periodically thereafter.
  • Page 15 WARNING: Never store the machine or fuel container indoors where there is an open flame, spark, or pilot light such as on water heater, furnace, clothes dryer, or other gas appliance. If unit is to be stored over 30 days, prepare for storage as follows: •...

  • Page 16: Section 8: Troubleshooting

    SECTION 8: TROUBLESHOOTING Problem Engine fails to start 1. Fuel tank empty, or stale fuel. 2. Blocked fuel line. 3. Choke not in the ON position 4. Faulty spark plug. 5. Safety key not in ignition switch on engine. 6. Spark plug wire disconnected. 7.

  • Page 17: Parts List

    Model 750T Ref. 618-0123 618-0418 710-0642 711-0908A 714-0161 715-0143 717-0528 717-0526 718-0186 721-0325 721-0327 736-0351 736-0369 736-0445 741-0662 741-0663 618-0414A 737-3000 — 737-0168 Part No. Part Description RH Housing LH Housing w/Fitting Self Tapping Screw, 1/4-20 x .75 Spiral Axle 24” Hi-Pro Key, 3/16 x 5/8 Spring Spiral Pin, .25 x 1.25 Worm Gear, 20-tooth...
  • Page 18 Model 750T (for ground wire of light ass’y)
  • Page 19 Model 750T Ref. Part No. Part Description 684-0008A Shift Arm Assembly 705-5204A Chute Crank Ass’y 710-0262 Carriage Bolt, 5/16-18 x 1.5 710-0449 Carriage Bolt, 5/16-18 x 2.25 710-0788 Self Tapping Screw, 1/4-20 x 1 710-3008 Hex Cap Screw, 5/16-18 x .75 710-3015 Hex Cap Screw, 1/4-20 x .75 711-0677...
  • Page 20 Model 750T...
  • Page 21 Model 750T Ref. Part No. Part Description 712-0116 Lock Jam Nut 3/8-24 756-0178 Flat Idler 784-5632A Auger Idler Arm 710-0459A Hex Cap Screw 3/8-24 x 1.50 738-0281 Shoulder Screw 736-0167 Flat Washer .656 ID x 1.25 OD 732-0611 Extension Spring 712-3068 Hex Nut 5/16-18 710-0276...
  • Page 22 Model 750T...
  • Page 23 Models 750T Ref. IMPORTANT: For a proper working machine, use Factory Approved Parts. V-BELTS are specially designed to engage and disengage safely. A substitute (non OEM) V-Belt can be dangerous by not disengaging completely Part No. Part Description 710-1652 Hex Washer Screw 1/4-20 x .625 731-1324 Belt Cover 732-0710...
  • Page 24 Models 750T 30 31...
  • Page 25 Model 750T Ref. Part No. Part Description 784-5648 Frame Cover 710-1652 Tap Screw 1/4-20 x .625 748-0190 Spacer .508 ID x .75 OD 732-0264 Extension Spring 712-0711 Jam Nut 3/8-24 736-0105 Bell Washer .401 ID x .87 OD 684-0021 Friction Whl Support Bracket 746-0898 Drive Cable 39.88”...
  • Page 26 Models 750T...
  • Page 27 Models 750T Ref. Part No. Part Description 720-0223 Grip 710-0604 Tap Screw, 5/16-18 x .625 784-5642 Track Lockout Plate 710-0157 Hex Cap Screw, 5/16-24 x .75 736-0242 Bell Washer, .34 ID x .872 OD 684-0038 Track Lock Handle Assembly 710-0459A Hex Cap Screw, 3/8-24 x 1.5 712-0214 Hex Nut, 3/8-24...

  • Page 28: P.o. Box

    Damage resulting from the installation or use of any accessory or attachment not approved by White Outdoor Products Co. for use with the product(s) covered by this manual will void your warranty as to any resulting damages.
