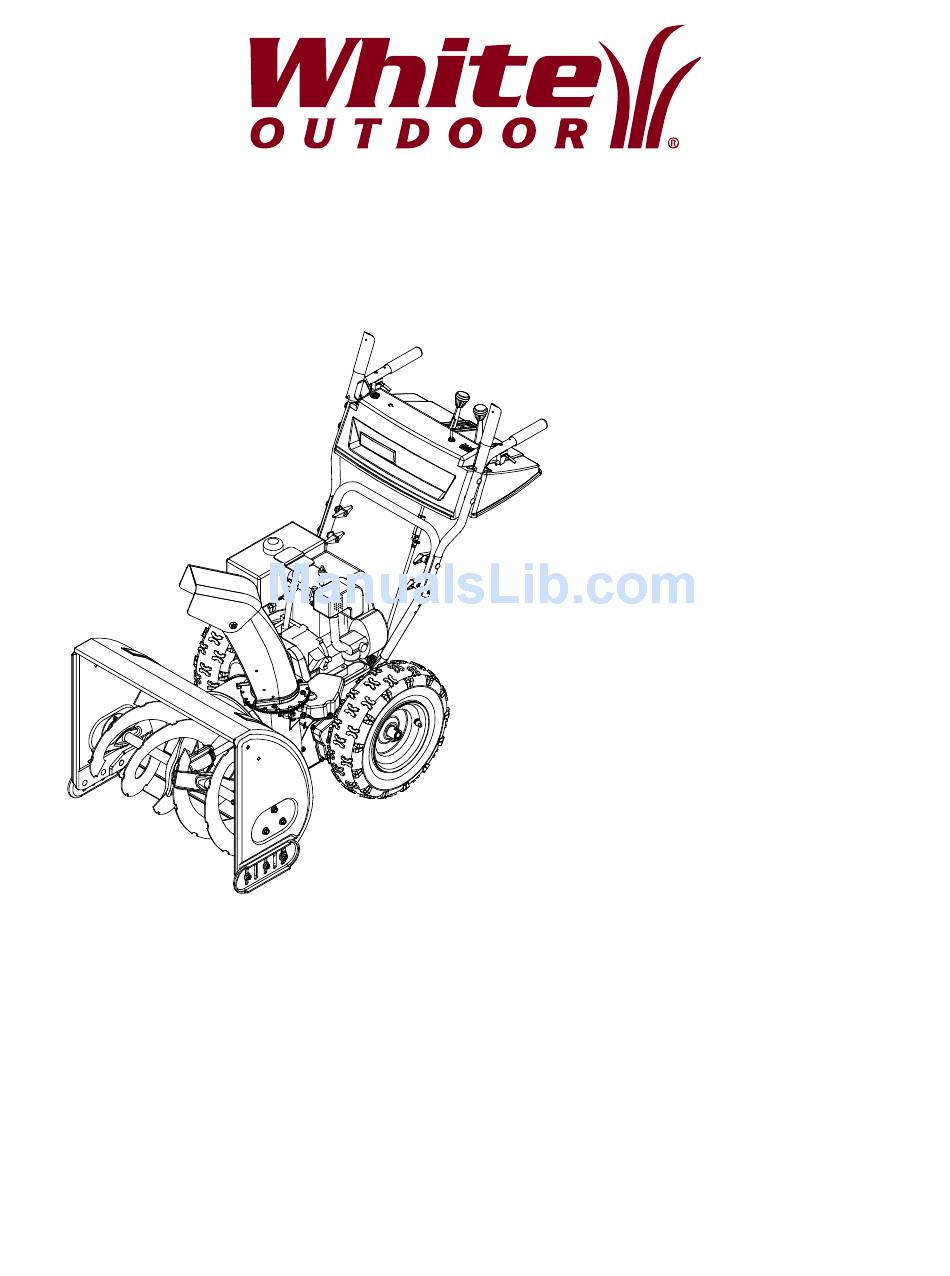

OPERATOR'S MANUAL
IMPORTANT: READ SAFETY RULES AND INSTRUCTIONS CAREFULLY
Warning:
This unit is equipped with an internal combustion engine and should not be used on or near any unimproved forest-
covered, brush-covered or grass-covered land unless the engine's exhaust system is equipped with a spark arrester meeting
applicable local or state laws (if any). If a spark arrester is used, it should be maintained in effective working order by the operator.
In the State of California the above is required by law (Section 4442 of the California Public Resources Code). Other states may have
similar laws. Federal laws apply on federal lands. A spark arrester for the muffler is available through your nearest engine authorized
service dealer or contact the service department, P.O. Box 361131 Cleveland, Ohio 44136-9722.
WHITE OUTDOOR PRODUCTS COMPANY P.O. BOX 361131 CLEVELAND, OHIO 44136-9722
PRINTED IN U.S.A.
SNOW
THROWER
MODELS
Snow Boss 850W
Snow Boss 1150W
FORM NO.
770-10027B.fm
(7/00)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Snow Boss 1150W and is the answer not in the manual?

Questions and answers

Related Manuals for White Outdoor Snow Boss 1150W

Summary of Contents for White Outdoor Snow Boss 1150W

  • Page 1 Federal laws apply on federal lands. A spark arrester for the muffler is available through your nearest engine authorized service dealer or contact the service department, P.O. Box 361131 Cleveland, Ohio 44136-9722. WHITE OUTDOOR PRODUCTS COMPANY P.O. BOX 361131 CLEVELAND, OHIO 44136-9722 PRINTED IN U.S.A.

  • Page 2: Table Of Contents

    Before you start assembling your new equipment, please locate the model plate on the equipment and copy the information from it in the space provided below. The information on the model plate is very important if you need help from your local authorized White Outdoor dealer.

  • Page 3: Section 1: Important Safe Operation Practices

    SECTION 1: IMPORTANT SAFE OPERATION PRACTICES WARNING: This symbol points out important safety instructions which, if not followed, could endanger the personal safety and/or property of yourself and others. Read and follow all instructions in this manual before attempting to operate this machine. Failure to comply with these instructions may result in personal injury.

  • Page 4: Maintenance And Storage

    The clutch levers must operate easily in both directions and automatically return to the disengaged position when released. Never operate with a missing or damaged discharge chute. Keep all safety devices in place and working. Never run an engine indoors or in a poorly ventilated area.

  • Page 5: Section 2: Assembling Your Snow Thrower

    SECTION 2: ASSEMBLING YOUR SNOW THROWER NOTE: Any reference in this manual to the left or right side of the snow thrower is observed from the operator’s position. Unpacking • Remove screws from the top sides and ends of the shipping crate.

  • Page 6: Final Adjustments

    Final Adjustments Auger Control Adjustment Check the adjustment of the auger control as follows: • Push forward on the auger control until the small rubber bumper contacts the upper handle. There should be slack in the cable. See Figure 5 . •...

  • Page 7: Section 3: Know Your Snow Thrower

    • Recheck the adjustment and repeat adjustment as necessary. • Retighten the jam nut to secure the cable when correct adjustment is reached. SECTION 3: KNOW YOUR SNOW THROWER Traction Control / Auger Control Lock Headlight Discharge Chute Auger WARNING: Read, understand, and follow all instructions and warnings on the machine and in this manual before operating.

  • Page 8: Section 4: Operating Your Snow Thrower

    Electric Chute-Rotation Switch The electric chute-rotation switch is located on the left side of the snow thrower dash panel. See Figure 7. To change the direction in which discharged snow is thrown, proceed as follows: • Push the toggle switch to the left to rotate the chute counterclockwise.

  • Page 9: Operating Tips

    • If your home electrical system is grounded, but a three-hole receptacle is not available, one should be installed by a licensed electrician before using the electric starter. • If you have a grounded three-prong receptacle, proceed as follows: • Rotate choke knob to OFF position and do not prime engine.

  • Page 10: Section 5: Making Adjustments

    snow. Adjust downward (to raise the shave plate) when using on gravel or crushed rock. SECTION 5: MAKING ADJUSTMENTS WARNING: NEVER attempt to make any adjustments while the engine is running, except where specified in the operator’s manual. Chute Assembly Adjustment The distance snow is thrown can be adjusted by adjusting the angle of the chute assembly.

  • Page 11: Drive Wheels

    Drive Wheels The wheels may be adjusted for two different methods of operation. The adjustment is made by placing the click pins in one of two different holes on the right side of the unit. See Figure 10. Figure 10 One Wheel Driving: Insert the click pin only through the outside hole of the axle (NOT the rim) on the right side of the snow thrower.

  • Page 12: Section 7: Servicing Your Snow Thrower

    Traction Control / Auger Control Lock The cams on the ends of the control rods which interlock the traction drive and auger drive controls must be lubricated at least once a season or every 25 hours of operation. The cams can be accessed beneath the handle panel.

  • Page 13: Replacing Friction Wheel Rubber

    • Drain the gasoline from the snow thrower, or place a piece of plastic film under the gas cap. • Tip the snow thrower up and forward so that it rests on its auger housing. • Remove the six self-tapping screws from the frame cover underneath the snow thrower.

  • Page 14: Off-Season Storage

    Drive Cover Screw Figure 16 • Holding the friction wheel assembly, slide the hex shaft out of the left side of the frame. The spacer on the right side of the hex shaft will fall and the sprocket should remain hanging loose in the chain. See Figure 17.

  • Page 15: Section 8: Trouble Shooting

    SECTION 8: TROUBLE SHOOTING Problem Engine fails to start Fuel tank empty, or stale fuel. Blocked fuel line. Choke not in ON position Faulty spark plug. Safety key not in ignition switch on engine. Spark plug wire disconnected. Primer button not being used properly. Fuel shut-off valve closed.
  • Page 16 Notes...

  • Page 17: Parts List

    Flat Washer, .76 x 1.5 x .060 741-0662 Flange Bearing, .75 x 1.0 x .59 741-0663 Flange Bearing, .503 ID x .75 OD 618-0415A Gear Ass’y Complete, 26” (850W) 618-0417A Gear Ass’y Complete, 30” (1150W) 737-3000 Grease Fitting, 3/16” Drive...
  • Page 18 Models 850W / 1150W For Reference Only For Reference Only...
  • Page 19 Models 850W / 1150W Ref. Part No. Part Description 684-0008A Shift Arm Assembly 710-0262 Carriage Bolt 5/16-18 x 1.5” 710-0449 Carriage Bolt 5/16-18 x 2.25” 710-0788 TT Screw 1/4-20 x 1” 710-0837 C-Sunk Screw #10-16x 0.625” 710-3008 Hex Screw 5/16-18 x .75”...
  • Page 20 Models 850W / 1150W...
  • Page 21 Models 850W / 1150W Ref. Part No. Part Description 712-0116 Lock Jam Nut 3/8-24 756-0178 Flat Idler 784-5632A Auger Idler Arm 710-0459A Hex Cap Screw 3/8-24 x 1.50 738-0281 Shoulder Screw 736-0167 Wave Washer 732-0611 Extension Spring 712-3068 Hex Nut 5/16-18 710-0276 Carriage Bolt, 5/16-18 x 1.00...
  • Page 22 Models 850W / 1150W IMPORTANT: For a proper working machine, use Factory Approved Parts. V-BELTS are specially designed to engage and disengage safely. A substitute (non OEM) V-Belt can be dangerous by not disengaging completely...
  • Page 23 Axle: .75 dia. x 12.2” Lg. Wheel Ass’y Comp 16.5” x 4.8” (850W) Wheel Ass’y Comp 16” x 6.5” (1130) Tire 16.5” x 4.8” x 4” (850W) Tire 16.0” x 6.5” x 8” (1150W) Tubeless Air Valve Rim Assembly (850W) Rim Assembly (1150W)
  • Page 24 Models 850W / 1150W Drive Clutch Cable Routed Below Axle And Hooked Here 34 32...
  • Page 25 Models 850W / 1150W Ref. Part No. Part Description 618-0043 Dogg Assembly: RH 618-0044 Dogg Assembly: LH 618-0303B Shift Assembly: Steerable Drive 656-0012A Friction Wheel Disc Assy. 684-0014B Shift Rod Assembly 684-0042B Bearing 784-5731A Transmission Frame Assembly 684-0131A Support Bracket Assembly 710-0599 Hex Washer Screw 1/4-20 x .5...

  • Page 28: P.o. Box

    Damage resulting from the installation or use of any accessory or attachment not approved by White Outdoor Products Co. for use with the product(s) covered by this manual will void your warranty as to any resulting damages.

This manual is also suitable for:

Snow boss 850w

Table of Contents
