Safety • Assembly • Operation • Tips & Techniques • Maintenance • Troubleshooting • Parts Lists • Warranty

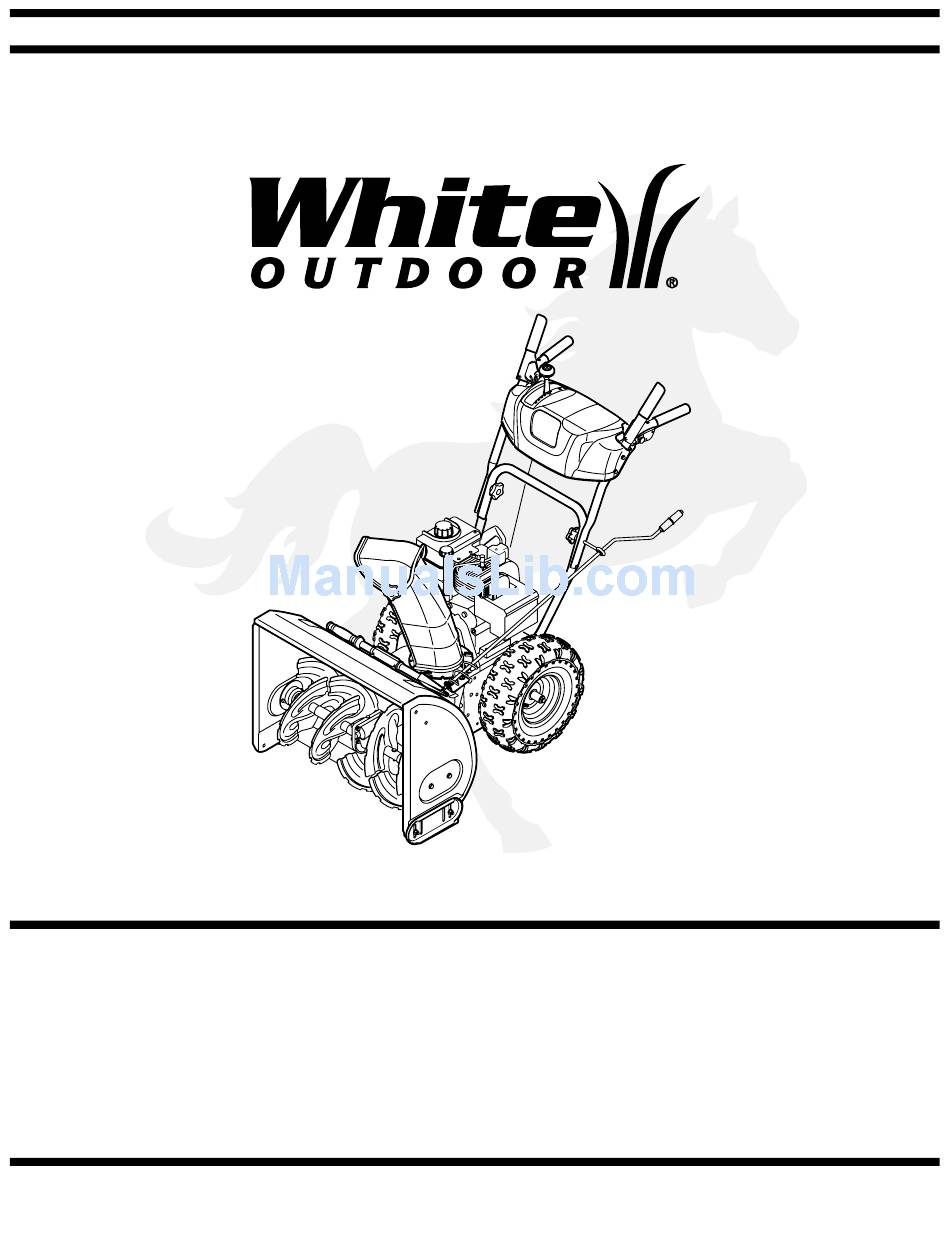

OPERATOR'S MANUAL
Two-Stage Snow Thrower — H-Style
IMPORTANT
READ SAFETY RULES AND INSTRUCTIONS CAREFULLY BEFORE OPERATION
Warning: This unit is equipped with an internal combustion engine and should not be used on or near any uniiproved forest-covered, brush-
covered or grass-covered land unless the engine's exhaust system is equipped with a spark arrester meeting applicable local or state laws (if any).
If a spark arrester is used, it should be maintained in effective working order by the operator. In the State of California the above is required by law
(Section 4442 of the California Public Resources Code). Other states may have similar laws. Federal laws apply on federal lands. A spark arrester
for the muffler is available through your nearest engine authorized service dealer or contact the service department, P.O. Box 361131 Cleveland,
Ohio 44136-0019.
PRINTED IN U.S.A
FORM NO. 769-01923A
MTD LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019
06/21/2006
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for White Outdoor 769-01923A
Summary of Contents for White Outdoor 769-01923A
- Page 1 (Section 4442 of the California Public Resources Code). Other states may have similar laws. Federal laws apply on federal lands. A spark arrester for the muffler is available through your nearest engine authorized service dealer or contact the service department, P.O. Box 361131 Cleveland, Ohio 44136-0019. PRINTED IN U.S.A FORM NO. 769-01923A MTD LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019 06/21/2006...
-
Page 2: Table Of Contents
This information will be necessary to use the web site or obtain assistance from your White Outdoor dealer. Please do NOT return the unit to the retailer from which it was purchased, without first contacting Customer Support. -
Page 3: Safety Labels
A chute clean-out tool is fastened to the top of the auger housing with a mounting clip. The tool is designed to clear a chute assembly of ice and snow. This item is fastened with a cable tie at the factory. Cut the cable tie before operating the snow thrower. -
Page 4: Safe Operation Practices
DANGER: This machine was built to be operated according to the rules for safe operation in this manual. As with any type of power equipment, carelessness or error on the part of the operator can Safe result in serious injury. This machine is capable of amputating hands and feet and throwing objects. Failure to observe the following safety instructions could result in serious injury or death. -
Page 5: Maintenance And Storage
(e.g. wheel weights, tire chains, cabs etc.). 20. If situations occur which are not covered in this manual, use care and good judgment. Contact your White Outdoor dealer or call (800) 949-4483 for the name of your nearest servicing dealer. -
Page 6: Setting Up Your Snow Thrower
Setting Up Your Snow Thrower 1. Observe the lower rear area of the snow thrower to be sure both cables are aligned with roller guides before pivoting the handle upward. NOTE: Reference to right 2. Secure the handle by tightening the plastic wing and left side of the machine knob located on both the left and right sides of the are observed from the... -
Page 7: Auger Control
5. Remove the flat washer and hairpin clip from the end of the chute directional control. Insert the end of the chute directional control into the lower bracket and secure with the flat washer and hair- pin clip just removed. If necessary, the lower bracket can be adjusted. -
Page 8: Operating Your Snow Thrower
Operating Chute Assembly Your Snow Thrower Clean Out Tool WARNING Read, understand, Augers and follow all instruc- tions and warnings on the machine and in this manual before operating. Now that you have set up your snow thrower for Use extreme care operation, get acquainted with its controls and when handling features. -
Page 9: Ignition Key
Auger Control The auger control is located on the left handle. Squeeze the control grip against the handle to engage the augers and start snow throwing action. Release to stop. Drive Control / Auger Clutch Lock The drive control is located on the right handle. Squeeze the control grip against the handle to engage the wheel drive. -
Page 10: Starting The Engine
Service the engine with gasoline and oil as instructed in the Tecumseh Engines manual packed separately with your snow thrower. Read instructions carefully. 1. Attach spark plug wire to spark plug. Make certain WARNING the metal loop on the end of the spark plug wire (inside the rubber boot) is fastened securely over the metal tip on the spark plug. - Page 11 Chute Clean-Out Tool The chute clean-out tool is conveniently fastened to the rear of the auger housing with a mounting clip. Should snow and ice become lodged in the chute assembly during operation, proceed as follows to safely clean the chute assembly and chute opening: 1.
-
Page 12: Chute Assembly
Making Adjustments WARNING Read, understand, and follow all instruc- tions and warnings on the machine and in this manual before operating. Never attempt to make any adjust- ments while the engine is running, except where speci- fied in operator’s manual. Auger Control To adjust the auger control, refer to page 13. -
Page 13: Drive Control
Drive Control When the drive control is released and in the disengaged “up” position, the cable should have very little slack. It should NOT be tight. Check the adjustment of the drive control as follows: 1. With the drive control released, push the snow thrower gently forward. -
Page 14: Maintaining Your Snow Thrower
Engine Refer to the separate Tecumseh Engines manual packed with your unit for all engine maintenance. Lubrication Engine Maintaining Refer to the separate Tecumseh Engines manual packed with your unit for all engine lubrication instruc- Your Snow tions. Gear Shaft Thrower The gear (hex) shaft should be lubricated at least once a season or after every 25 hours of operation. -
Page 15: Auger Belt Replacement
Auger Belt Replacement To remove and replace your snow thrower’s auger belt, proceed as follows: 1. Remove the plastic belt cover on the front of the engine by removing the two self-tapping screws. NOTE: Drain the gasoline from the snow thrower, or place a piece of plastic under the gas cap. -
Page 16: Drive Belt Replacement
Maintaining Your Snow Thrower NEVER replace the auger shear pins with anything other than OEM Part No.738-04124A replacement shear pins. Any damage to the auger gearbox or other components as a result of failing to do so will NOT be covered by your snow thrower’s warranty. -
Page 17: Friction Wheel Removal
Friction Wheel Removal If the snow thrower fails to drive with the drive control engaged, and performing the drive control cable adjust- ment on page 14 fails to correct the problem, the friction wheel may need to be replaced. Follow the instructions below. -
Page 18: Off-Season Storage
If the snow thrower will not be used for 30 days or longer, or if it is the end of the snow season when the last pos- sibility of snow is gone, the equipment needs to be stored properly. Follow storage instructions below to ensure top performance from the snow thrower for many more years. -
Page 19: Troubleshooting
1. Move choke lever to OFF position. 2. Clean fuel line; fill tank with clean, fresh gasoline. 3. Drain fuel tank. Refill with fresh fuel. 4. Contact White Outdoor Service Center. 1. Contact White Outdoor Service Center. 1. Stop engine immediately and disconnect spark plug wire. - Page 20 Style H 9 19...
-
Page 21: Illustrated Parts List
731-2635 Snow Removal Tool Mount 684-04057 Impeller Assembly, 12” Dia. 710-0347 Hex Screw, 3/8-16, 1.75, Gr5 710-0451 Bolt, Carriage, 5/16-18, .750 Gr1 710-0604A Screw, 5/16-18, 0.625 710-0703 Screw, Carriage, 1/4-20, .750, Gr5 712-04063 Nut, Flange Lock, 5/16-18, Nylon 712-04064 Nut, Flange Lock, 1/4-20, Nylon 712-04065 Nut, Flange Lock, 3/8-16, Nylon 10. - Page 22 Style H...
- Page 23 631-04133 Handle Assembly, Lock, LH 631-04134A Handle Assembly, Lock, RH 684-04105A Handle Ass’ y, Engagement LH 684-04106A Handle Ass’y, Engagement, RH 710-0224 Screw, #10-16, 0.500 710-1026 Screw, 1/4-20, 1.750 710-1233 Screw, Machine, #10-24, 1.375 712-04064 Nut, Flange Lock, 1/4-20, Nylon 720-0274 Grip, 1.0 ID x 5.0 10.
- Page 24 Style H 24 30 26 13...
- Page 25 656-04025A Disc Assembly, Friction Wheel 684-04153 Friction Wheel Assembly, 5.5 OD 684-04154 Support Bracket, Friction Wheel 684-04156 Shift Assembly, Rod 710-0627 Hex Screw, 5/16-24, .750, Gr5 710-0788 Screw, 1/4-20, 1.000 710-0896 Screw, 1/4-14 x .625 712-04065 Nut, Flange Lock, 3/8-16, Nylon 712-0413 Nut, Jam Lock, 5/8-18, Gr5, Nylon 10.
- Page 26 NOTES...
- Page 27 NOTES...
-
Page 28: Warranty
MANUFACTURER’S LIMITED WARRANTY FOR The limited warranty set forth below is given by MTD LLC with respect to new merchandise purchased and used in the United States, its posses- sions and territories. “MTD” warrants this product against defects in material and workmanship for a period of two (2) years commencing on the date of original purchase and will, at its option, repair or replace, free of charge, any part found to be defective in materials or workmanship.
