OWNER'S MANUAL
LG Digital
Signage
(Signage webOS Box)
Please read this manual carefully before operating your set and retain it
for future reference.
WP400
www.lg.com
Copyright © 2018 LG Electronics Inc. All Rights Reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WP400 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LG WP400

Summary of Contents for LG WP400

  • Page 1 OWNER’S MANUAL LG Digital Signage (Signage webOS Box) Please read this manual carefully before operating your set and retain it for future reference. WP400 www.lg.com Copyright © 2018 LG Electronics Inc. All Rights Reserved.

  • Page 2: Table Of Contents

    Mounting on a wall ............12 Installing on a monitor ..........13 - HDMI connections ............15 REMOTE CONTROL ....16 USING THE WP400 SET ..... 18 - Connecting to a PC............18 - External Device Connection ........18 - Using the Input List ............18 TROUBLESHOOTING ....

  • Page 3: Important Precautions

    Warning: This equipment is compliant with Class A of CISPR 32. In a residential environment this equipment may cause radio interference. IMPORTANT PRECAUTIONS Please read these safety precautions carefully before using the product. WARNING Failure to follow those warnings may result in death, serious injury or damage to the product or other property. CAUTION If you ignore the caution message, you may be slightly injured or the product may be damaged.
  • Page 4 • If you don’t intend to use the product for a long time, unplug the power cable from the product. - Layers of dust can cause a fire, or insulation deterioration can cause electric leakage, electric shock or fire. • Insert the power plug firm so it cannot come loose.

  • Page 5: Precautions For Installing The Product

    Do not add accessories that have not been designed for this display. • If you smell smoke or other odors or hear a strange sound from the product unplug the power cord and contact LG Customer Service. - If you continue to use without taking proper measures, electrical shock or fire can occur.

  • Page 6: Precautions For Moving The Product

    Precautions for Moving the Product WARNING • Make sure to turn off the product. - You may be electrocuted or the product can be damaged. • Make sure to remove all cables before moving the product. - You may be electrocuted or the product can be damaged. •...

  • Page 7: Precautions For Using/Cleaning The Product

    Do not attempt to disassemble, repair or modify the product yourself. - Fire or electric shock can occur. - Contact LG Customer Service for repair. • When cleaning the product, unplug the power cord and scrub gently with a soft cloth to prevent scratching. Do not clean with a wet cloth or spray water or other liquids directly onto the product.

  • Page 8: Licenses

    LICENSES Supported licenses may differ by model. For more information of the licenses, visit www.lg.com. The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

  • Page 9: Assembly And Preparation

    SuperSign Software & Manual - Downloading from the LG Electronics website. - Visit the LG Electronics website http://partner.lge.com and download the latest software for your model. How to use the ferrite core Use the ferrite core to reduce the electromagnetic interference in the power cable. Wind the power cable on the ferrite core once.

  • Page 10: Parts And Buttons

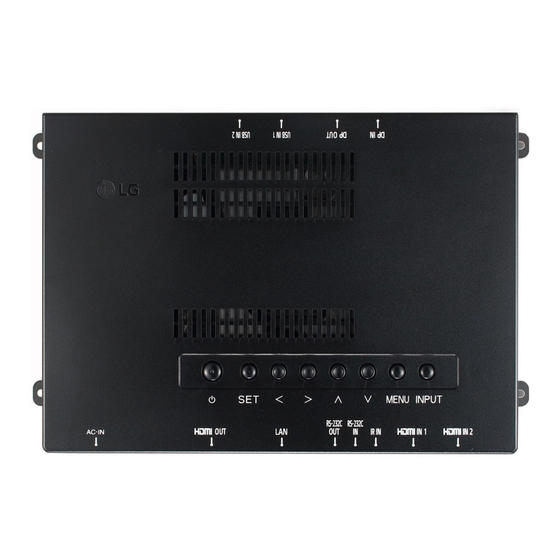

    Parts and Buttons The image may be different according to the model. • : Turns the power on or off. • : Displays the current signal and mode. • : Moves left and right. • : Adjusts the up and down. •...

  • Page 11: Front Panel

    Front Panel Rear Panel LED Indicator...

  • Page 12: Installation

    Installation Install the set using the screws supplied as accessories. Mounting on a wall 266.5 mm (10.4 inches) 139 mm (5.4 inches)

  • Page 13: Installing On A Monitor

    Align the WP400 along the four screw holes on the rear of the set and attach it to the rear of the set using the four screws provided.
  • Page 14 Installation complete...

  • Page 15: Hdmi Connections

    HDMI connections Use an HDMI cable to connect to the WP400. HDMI IN...

  • Page 16: Remote Control

    REMOTE CONTROL The descriptions in this manual are based on the buttons on the remote control. Please read this manual carefully to use the Signage webOS Box correctly. To install batteries, open the battery cover, place batteries (1.5 V AAA) matching terminals to the labels inside the compartment, and close the battery cover.
  • Page 17 Selects the Picture Mode. (HOME) Activates the Launcher. Enters the White Balance menu. (SETTINGS) Accesses the main menus or saves your input and exit menus. SuperSign menu key. Navigation Buttons Scrolls through menus or options. Selects menus or options and confirms your input. (BACK) Allows you to move back one step in the user interaction function.

  • Page 18: Using The Wp400 Set

    USING THE WP400 SET Connecting to a PC The WP400 does not include the monitor. You can connect WP400 to a monitor to view the picture on it. Your WP400 set supports the Plug and Play* feature. * Plug and Play: A PC will have a built-in driver for WP400, no extra software is needed.

  • Page 19: Troubleshooting

    TROUBLESHOOTING No image is displayed. Problem Resolution Is the product power cord connected? • Check if the power cord is correctly plugged into the power outlet. Does the ‘Invalid Format’ message • The signal from the PC (Graphics card) is out of the vertical or appear? horizontal frequency range of the product.
  • Page 20 Screen color is abnormal. Problem Resolution Screen has poor color resolution (16 • Set the number of colors to more than 24 bits (true color). Select [Control Panel] → [Display] → [Settings] → [Color Table] in Windows. colors). (The settings may differ depending on your operating system.) Screen color is unstable or mono-colored.

  • Page 21: Product Specifications

    PRODUCT SPECIFICATIONS The product specifications below may be changed without prior notice due to upgrade of product functions. “ ” refers to alternating current (AC), and “ ” refers to direct current (DC). Video signal Maximum resolution 3840 x 2160 @ 60 Hz - This may not be supported on some OS or graphics card types.
  • Page 22 Wireless module (LGSBWAC72) Specifications Wireless LAN (IEEE 802.11a/b/g/n/ac) Frequency range (MHz) Output power (Max.) (dBm) 2400 to 2483.5 5150 to 5725 14.5 5725 to 5850 14.5 • As band channels can vary per country, the user cannot change or adjust the operating frequency. This product is configured for the regional frequency table.
  • Page 23 HDMI/ DisplayPort (PC) Support Mode Resolution Horizontal frequency (kHz) Vertical frequency (Hz) 800 x 600 37.879 60.317 1024 x 768 48.363 1280 x 720 44.772 59.855 1280 x 1024 63.981 60.02 1680 x 1050 65.29 59.954 1920 x 1080 67.5 67.5 3840 x 2160 HDMI/ DisplayPort (DTV) Support Mode...
  • Page 24 Supplier’s Declaration of Conformity Trade Name Responsible Party LG Electronics USA, Inc. Address 1000 Sylvan Ave Englewood Cliffs, NJ 07632 (201)266-2215 Make sure to read the Safety Precautions before using the product. The model and serial numbers of the SET are located on the back and one side of the SET.
