Summary of Contents for Alert-it Rhythm 24

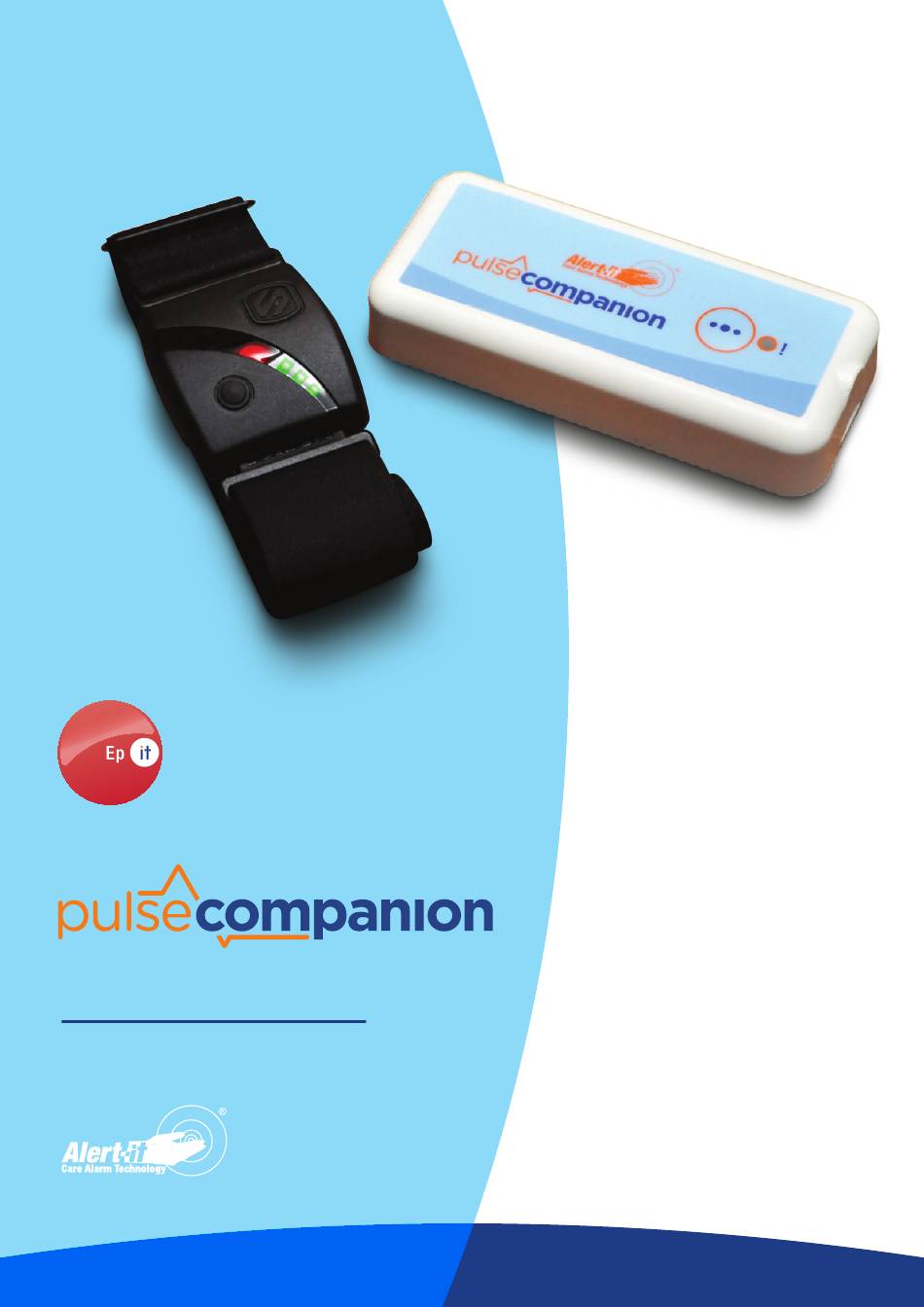

- Page 1 H A N D B O O K L E S S S T R E S S C A R I N G...
- Page 2 If you have any questions or require assistance in regards to the Pulse Companion or any other Alert-iT product, our experienced team are on hand to help. Please find contact details below. Don’t forget you can also join us on Facebook, Twitter and LinkedIn where you’ll find even more information...
-
Page 3: Table Of Contents
Contents Disclaimers Product Information Warranty Information In The Box Product Usage Quickstart Armband Pulse Companion Pager Configuration app and Smart Phone Compatibility How to use the App Scanning Setting the Thresholds Settings Advanced Settings Pairing armbands Using the Pulse Companion Armband Placement Changing the Armband due to low battery Changing the Armband... - Page 4 Contents Common Fault Conditions RF Fail: Radio Fail Alarm Pulse Companion Battery Low / Battery End Fault 28: Armband Battery Low Fault 26 Fault 18: Armband Lockup Pulse Companion ‘Status’ Light Armband LED Maintenance Instructions Routine Testing How to Clean the Devices Changing Batteries in the Pulse Companion Pager Function Disclaimers Continued...
-
Page 5: Disclaimers
The armband can give false readings when not worn (See page 26 for more details). Important safety information and risks Alert-iT cannot guarantee that the Pulse Companion will detect every single seizure and deliver alerts accordingly. The system is not meant to substitute your current seizure monitoring practices, but rather to serve as a supplement in expediting first-response time. -
Page 6: Product Information
Alert-iT at your own expense. After inspection by Alert-iT engineers, any equipment that is deemed to have been damaged, rather than failing due to a technical fault will only be repaired after you have agreed to being invoiced for the cost of repairs and delivery. -
Page 7: In The Box
In The Box The Pulse Companion Pack Contains: 1x Armband Sensor - P195A 1 x Sensor Charging Cradle 1 x Mains USB Charger for Sensor Includes 2 x AAA Non-rechargeable Batteries (fitted) 1 x Pulse Companion 2 x spare Batteries 1 x Advancer pager Includes 2 x AA Ni-MH Rechargeable Batteries 1 x 9v Pager Power Supply... -
Page 8: Product Usage
Product Usage The Pulse Companion provides a method of detecting seizure activity that typically only presents its-self in a change of heart rate. The armband used does not contain an accelerometer and will not detect shaking movements, it only provides reference heart rate readings. -
Page 9: Quickstart
Quickstart Armband On / Off Unpack box and turn on the armband sensor by pressing and holding its big button for 5 seconds, indication lights will appear. Adjust the sensor strap and fit it to the upper arm Not used Battery Level ensuring the sensor is not too tight and will be (Press “On / Off”... -
Page 10: Pager
The Pulse Companions settings can only be adjusted via the Smart Device App. Proceed to Page 11 for instructions on installing and using the smart device app. The Alert-iT app is compatible with the following iOS and Android devices: IOS: We support devices running iOS 10 or higher. -
Page 11: How To Use The App
How to use the App The “Alert-iT” configuration app is available on both iOS and android for free. Search for “Alert-iT” in either the “Google Play Store” or “Apple App Store” to find the app and install it. Note: After you have installed the app you may be prompted to allow the app to access your devices location. -
Page 12: Setting The Thresholds
How to use the App Setting the Thresholds Status Icons: = Monitoring Max Threshold = monitoring but low battery condition Current Highest BPM Seen = Disarmed Status = in fault condition icon Lowest BPM Seen = In alarm Min Threshold Settings Save changes Status... -
Page 13: Settings
How to use the App Settings After clicking the “Settings” button you will see the following information; “Nickname”: This changes the name that is advertised when scanning for the device. “Armband Battery %”: Displays the current battery level in the armband. “Pulse Companion Battery %”: Displays the current % battery level in the Pulse Companion. -
Page 14: Advanced Settings
How to use the App Advanced Settings After clicking the “Advanced Settings” button you will see the following information; Please Note: If a password is enabled, any changes here will require it to be entered “Radio Address” changes the address the pulse companion transmits. “Radio Type”: (Cannot be modified) Shows the radio type of the Pulse Companion. -
Page 15: Pairing Armbands
The Pulse companion will seek out and connect to armbands that are chosen in its “Paired Armbands” list. Please note: Alert-iT pre-pairs any armbands purchased with the Pulse Companion for you before shipment. If however you have purchased additional armbands since shipment OR an armband needs replacement you can do so here. -
Page 16: Using The Pulse Companion
Using the Pulse Companion You should now have the armband fitted on the user and the Pulse Companion paired correctly and configured with suitable thresholds. The light on the Pulse Companion will be blinking green every 4 seconds and the monitor name will appear on the pager screen every 8 seconds. -
Page 17: Changing The Armband Due To Low Battery
Using the Pulse Companion Changing the Armband due to low battery The battery in the armband should last 12 to 16 hours. When the battery in the armband gets low, “Fault 28” will be shown on the pager screen. Turn off the armband whilst still fitted by holding its big button for 5 seconds. Remove the armband Turn on and fit the new charged armband by holding its big button for 5 seconds. - Page 18 Reccomended operation Disconnecting armband The armband should be turned off before removing it from the arm. (Removing the armband first will trigger an Urgent alarm and will require further steps to return the monitor to standby mode). • After turning the armband off, hold the • •...
-
Page 19: Turning The Pulse Companion Off
Using the Pulse Companion Turning the Pulse Companion off The Pulse Companion should be left in standby mode (LED flashing red every 4 seconds) when not in use E.g. If not used during the day. See page 20 for permanent removal from service. Device Positioning The Pulse Companion needs to stay within 10 meters of the armband so it should typically be carried on your person or left on a bedside table. -
Page 20: Wall Mounting
Using the Pulse Companion Wall Mounting Remove the base by inserting a flat-headed screwdriver into the slot, apply gentle pressure and turn the screwdriver, the base will then pop away from the top. The two holes in the base can then be used to attach the device to a wall or surface. -
Page 21: Common Fault Conditions
Common Fault Conditions RF Fail: Radio Fail Alarm As the Pulse Companion is a “Safelink” enabled device, the pager is expecting to see its regular heartbeat signal every 8 seconds. If the pager does not see any heartbeat signal for 2 minutes it will raise a Radio Failure alarm “RF Fail”. This condition could occur if;... -
Page 22: Fault 26
Common Fault Conditions Fault 26: Pulse Companion LED = RED/GREEN/GREEN..The pager will display “Fault 26” if; The armband is too far away from the Pulse Companion (Range = 10m). • Ensure the devices are within range of each other then press the • •... -
Page 23: Pulse Companion 'Status' Light
Common Fault Conditions Pulse Companion ‘Status’ Light The Pulse Companion has a single Red/Green light. Light off Device is powered down Device is in standby Blinking red every 4 seconds • (Press • • button to start scanning) Blinking green every second Scanning for armbands Blinking green rapidly Armband discovered... -
Page 24: Maintenance Instructions
Routine Testing It is recommended to test the system daily by connecting to the Pulse Companion with the “Alert-iT” App and pressing the “Test” button. The pager should alarm for 3 seconds then reset or turn armband off and observe fault 26 shown on the pager. -
Page 25: Pager Function
“Turn Off” Select “Turn Off” with the up key and the pager will turn off. To snooze any active alarm / fault tunes press the “Up” arrow, this will snooze any active alarm calls for 5 minutes. See pager handbook for further details at; www.alert-it.co.uk/support/... -
Page 26: Disclaimers Continued
Scosche are not responsible for any health problems that may result from the use of the Rhythm 24 heart rate monitors. If you use the Rhythm 24 heart rate monitors, you agree that you do so at your own risk. -
Page 27: Important Information
The Alert-iT system has been designed with due regard to reliability and integrity. While it offers a highly vigilant monitoring method, it is always possible that a distress condition can go undetected for a variety of reasons (including malfunction) and in life threatening situations it is advisable to use the Alert-iT system in conjunction with additional monitoring techniques (e.g. -
Page 28: Pulse Companion Specification
The product complies with 93/42/EEC as a Class 1 Medical Device for use in a Home Healthcare environment. Hereby, Alert-iT Care Alarms declares that this product is in compliance with the Radio Equipment Directive (2014/53/EU). The product contains a radio transmitter compliant to EN 300-220-2 operating at 434.075 MHz wideband, 10mW power (Class 8) less than 1% duty cycle (Class 2). -
Page 29: Pager Specification
The product complies with 93/42/EEC as an essential accessory to a Class 1 Medical Device for use in a Home Healthcare environment . Hereby, Alert-iT Care Alarms declares that this product is in compliance with the Radio Equipment Directive (2014/53/EU). The system has a radio receiver compliant to EN 300-220-2 ‘Class 2’ operating at 434.075 MHz wideband. -
Page 30: Routine Testing Sheet
Routine Testing Sheet Serial Number: Test Signature Date... -
Page 31: Notes
Troubleshooting... - Page 32 Address: Alert-iT Care Alarms Fernie House Coalville Business Park Jackson Street Leicestershire LE67 3NR Call: +44 (0) 1530 239 900 Visit: www.alert-it.co.uk Social: AlertitCareAlarms Alert_iT_Care Alert-iT or join our supportive Epilepsy Forum UH1482A Pulse Companion Handbook v9.0 iT’s Designs Ltd...
Need help?
Do you have a question about the Rhythm 24 and is the answer not in the manual?
Questions and answers
We have had the alert-it companion for 18 months and it doesn't seem to keep its charge. We are putting the wearable part on our daughter at midnight and the battery is drained by 5am setting off the alarm. Her seizures occur during waking so this is concerning for us. Is there a way to reset the sensor so the battery will last longer? Considering the price of this product it is disappointing that its failing after such a short time. Thank you.
To reset the battery on the Alert-it Rhythm 24 (Pulse Companion), follow these steps:
1. Turn off the Pulse Companion.
2. Remove the base of the monitor to access the batteries.
3. Replace the 2x AAA batteries, ensuring correct polarity as marked in the case.
4. Turn the monitor back on by holding the ••• button for 3 seconds.
This process does not extend battery charge duration but ensures proper battery replacement and reset.
