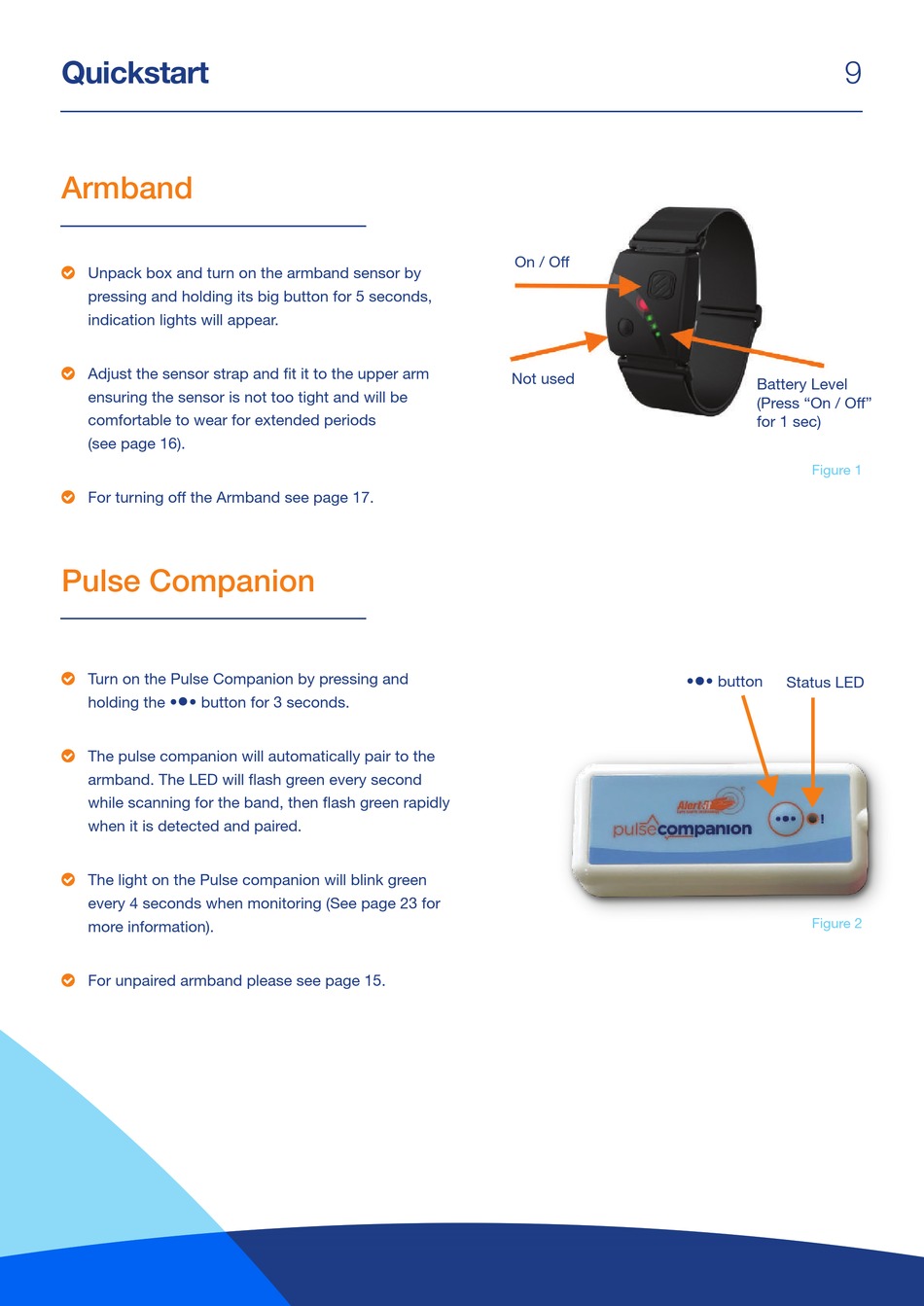

Quickstart

Armband

Unpack box and turn on the armband sensor by
`
pressing and holding its big button for 5 seconds,
indication lights will appear.
Adjust the sensor strap and fit it to the upper arm
`
ensuring the sensor is not too tight and will be
comfortable to wear for extended periods
(see page 16).
For turning off the Armband see page 17.
`

Pulse Companion

Turn on the Pulse Companion by pressing and
`
•
holding the • • button for 3 seconds.
The pulse companion will automatically pair to the
`
armband. The LED will flash green every second
while scanning for the band, then flash green rapidly
when it is detected and paired.
The light on the Pulse companion will blink green
`
every 4 seconds when monitoring (See page 23 for
more information).
For unpaired armband please see page 15.
`
On / Off
Not used
9
Battery Level
(Press "On / Off"
for 1 sec)
Figure 1
•
• • button
Status LED
Figure 2
