Prorack K431 Fitting Instructions

K431 FITTING KIT INSTRUCTIONS
These fitting instructions contain information specific for your vehicle. They
should be read in conjunction with your crossbar instructions.
Kit Contains
1 x Instructions
4 x Red Plastic Knobs with nuts
4 x Plastic Internal Blocks
4 x Grub Screws
1 x Allen Key 3mm
4 x Adaptor Plates
Items you will require that are not included:
1 x Tape measure
Whispbar Flush Bar pictured in these instructions, also applicable for Whispbar Through Bar Whispbar Flush Bar pictured in these instructions, also applicable for Whispbar Through Bar Whispbar Flush Bar pictured in these instructions, also applicable for Whispbar Through Bar Whispbar Flush Bar pictured in these instructions, also applicable for Whispbar Through Bar

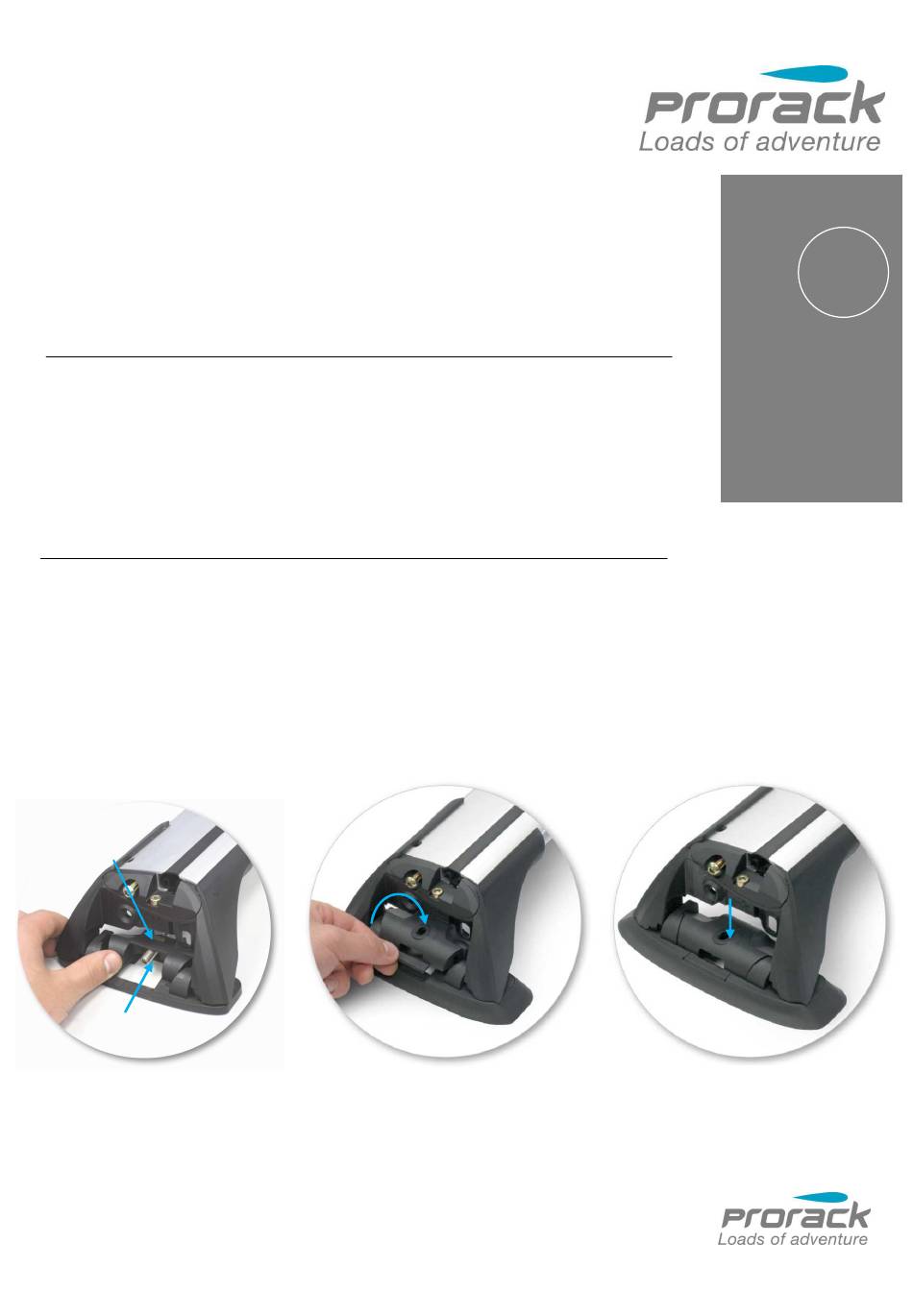

Clamp Block
Press this way
1.1
•
Remove crossbar and fitting kit parts
from the packaging
•
Follow steps 1 to 3 of crossbar assembly
instructions
•
Remove clamp block by pressing it
backwards
8 x M5 x 16mm Capscrews
8 x Spring Washers
2 x Pads Part № 11-04-224 (A)
2 x Pads Part № 11-04-225 (B)
Refer to the step 1.5 for the correct
position of pads.
Remove parts from box & check
Contact your Prorack dealer if any parts are missing or damaged
•
Select plastic internal block
(from fitting kit) and insert it
into foot
Important Note:
1.2
Page 1 of 4
75 75 75 75
Maximum
Whispbar
Load
Rating
When Fitted and loaded
correctly
Push Down
1.3
•
Repeat for all four legs
kg kg kg kg
