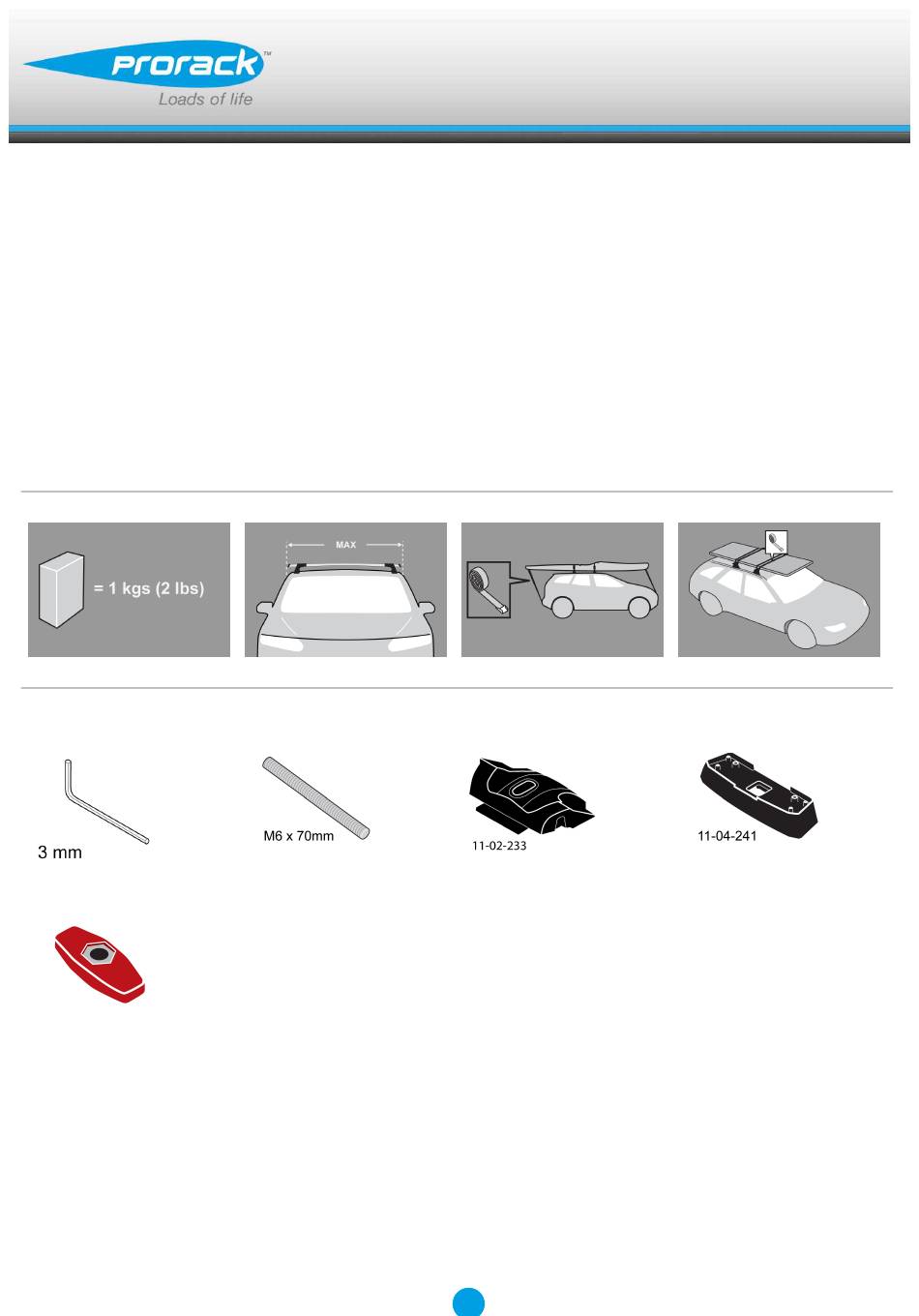

- Page 1 K436 Fitting Kit Fitting Instructions for Basic Carrier Revision No: 4D...
- Page 2 Fitting Kit K436 MAX kgs (lbs) Land Rover Discovery 3, 5dr SUV 04-05 75 kgs (165 lbs) 100 kgs (220 lbs) Discovery 3, 5dr SUV 04-09 75 kgs (165 lbs) 100 kgs (220 lbs) Discovery 3, 5dr SUV 04-09 75 kgs (165 lbs)
- Page 3 Fitting Kit K436 Discovery 3, 5dr SUV 04-05 (ZA) -330mm 250mm 840mm 950mm 935mm -13" 9 13/16ths" 33 1/16ths" 37 3/8ths" 36 13/16ths" Discovery 3, 5dr SUV 04-09 (NZ) -330mm 250mm 840mm 950mm 935mm -13" 9 13/16ths" 33 1/16ths" 37 3/8ths"...
- Page 4 Fitting Kit K436 Range Rover Sport, 5dr SUV 05-13 (CN) -200mm 380mm 940mm 1040mm 1030mm 1015mm -7 -7/8ths" 14 15/16ths" 37" 40 15/16ths" 40 9/16ths" 39 15/16ths" Range Rover Sport, 5dr SUV 06-12 (US) -200mm 380mm 940mm 1040mm 1030mm 1015mm -7 -7/8ths"...
-
Page 5: First Time Installation
Fitting Kit K436 First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. This kit fits type A, B, C and D. These instructions show type A crossbar fitted. They also apply to type B, C and D. - Page 6 Fitting Kit K436 Use hex screwdriver to reverse adjusting screw 10 turns. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment method. Ensure each end of the crossbar is adjusted equally. Adjust crossbar in or out to suit vehicle.
- Page 7 Fitting Kit K436 Tighten adjusting screw to 5 Nm (3.7 ft lb) hand tight. Remove plastic clamp block by gripping bar leg with fingers and push firmly with thumbs until clamp block drops out behind leg. Select plastic internal block (from fitting kit) and insert into foot.
- Page 8 Fitting Kit K436 Fit rubber pads (supplied with fitting kit) to foot. Pad may vary in shape to that shown. Make sure the pad fits into the holes underneath the foot. Repeat for all legs. Fitment NOTE: Land Rover Discovery - Do not use...
- Page 9 Fitting Kit K436 Place crossbar foot over grubscrews. Ensure the pads are in the correct position and the clamp threads pass through the crossbar feet. Tighten the plastic knob. The side with the nut showing should be facing up.
- Page 10 Fitting Kit K436 In the fully tightened position, the knobs should be parallel with the vehicle. Repeat for all four positions. Check crossbar is securely attached to the vehicle. Use keys to fit and lock covers CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars.
-
Page 11: Maintenance
Fitting Kit K436 Maintenance Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order. - Page 12 Fitting Kit K436 Check and replace worn out or defective parts. Keep the product clean and maintained. Never drive into a car wash with the roof rack system fitted. Lubricate locks and adjusting screws at regular intervals. Remove the products from the vehicle when not in use.
-
Page 13: Warranty And Disclaimer
Make a claim as soon as practicable by contacting the Prorack dealer from whom you purchased the product, who will give you instructions on how to proceed. If you are unable to contact the Prorack dealer, or the dealer is not able to remedy the defect, you should contact Yakima as soon as practicable at: Call: 0800 4776 722 (NZ) or 1800 143 548 (AU) Email: warranty@yakima.co.nz or warranty@yakima.com.au... - Page 14 Yakima or the Prorack dealer will be borne by you. Following receipt of the product and purchase invoice or receipt, Yakima or the Prorack dealer must inspect the product to determine whether the claim falls within the warranty. If: 4.1 the claim falls within the warranty, Yakima will remedy any defects in materials or workmanship becoming apparent during the...
