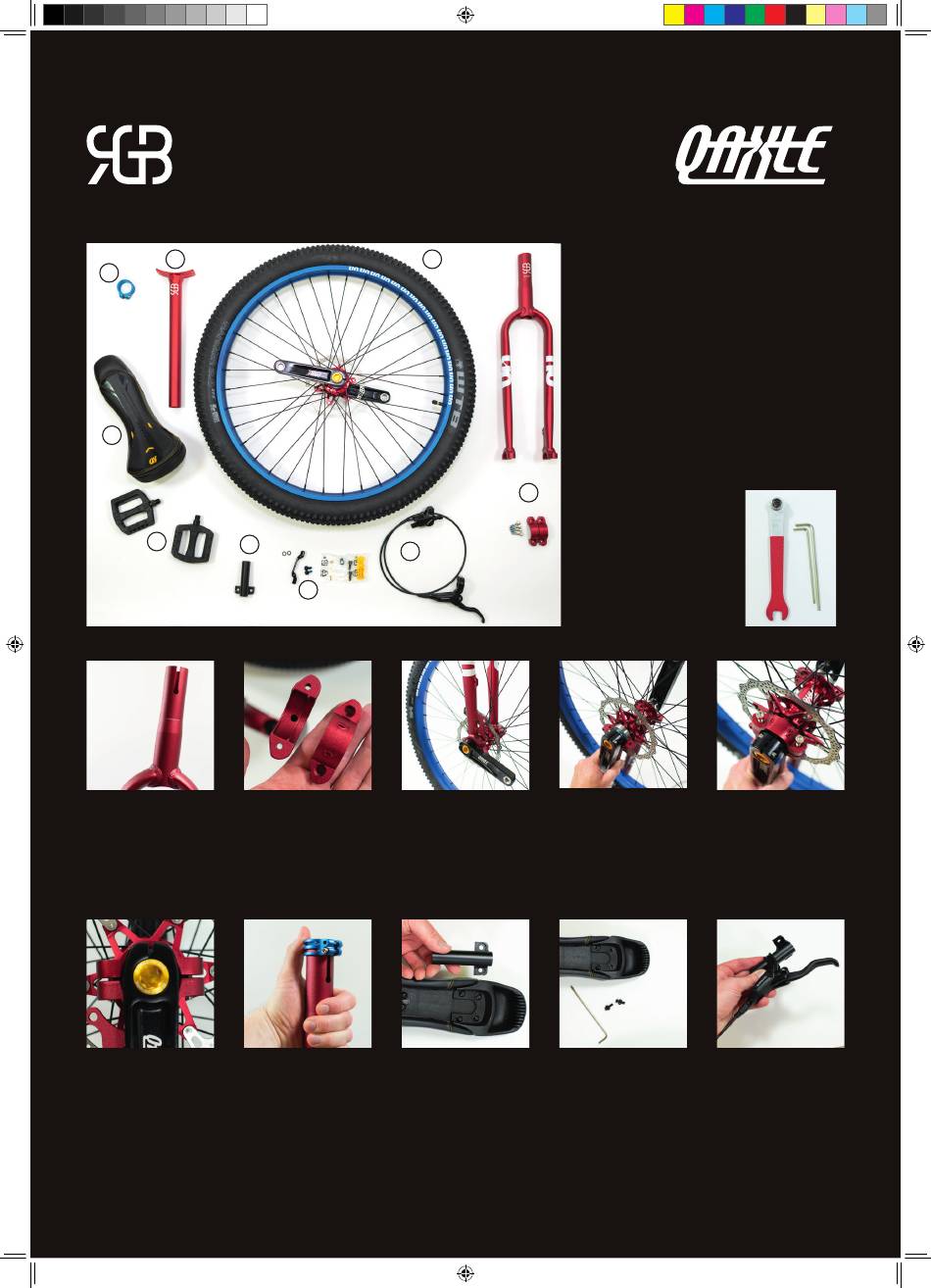

QU-AX RGB Assembly Instructions

Assembly
instructions
2
1
9
8
1) Take the frame and
find out where the
backend is: the slot
is the rear side. The
disc-brake-mount is
then left.
6) tighten them in a
way that both sides
show an equal slot
between cup & frame.
The wheel should still
turn smoothly.
rgb Anleitung.indd 1
7
5
6
2) Have a look at the 3) Put the frame on the
bearing clamps - they wheel, On the inside of
also have a direction to the left cranks should
put on. be an „L", the disc
should be lefthanded.
7) slide the seatclamp 8) now it is time to
with the slotted side on mount the handle
the slotted side of the mount brake bracket
frame until it stops. on the saddle
Congratulations to your new #rgb unicycle!
3
First, you should start by unpacking the
box-content and identify the following (19" ver-
sion w/o brake-components):
1) seatclamp in black, red, green or blue
2) seatpost in black, red, green or blue
3) wheelset with tire, cranks and brake-rotor
with rim in black, red, green or blue
4) frame in black, red, green or blue, bear-
ing-shells, 4 screws
5) Shimano-brake incl. two fixing bolts
6) brake-caliper adapter IS > PM incl. 2 bolts,
2 thin washers for adjustment
7) brake-lever-mount, partialy mounted unter
the saddle already
4
8) pedals
9) saddle
To assemble, you will need
the following tools:
15 mm wrench, a 4 and a
5 mm hex-key, flat screw-
driver or tire-lever.
4) Put the frame with
the seattube on the
ground (just turn it
round the wheel) to ac-
cess the bearing-shells.
9) take out the two
bolts on the front fixing
the saddle handle with
a 4 mm hex-key
5) Put the shells on the
counterpart like in 2),
and insert the M6x25
screws with the blue
nylok on.
10) slide the brake-le-
ver on the brake-lever
mount and tighten it
in a way that it can
still move in case of
a crash but firmly
enough that it dows
not move while riding /
braking.
