Skyscraper Mightee Mount™ - with SKCU, SKRA
For ALL 96" units (SKMM8, SKMS8, SKCU8, SKRA8, SKTR8, SKX8) or taller, the uprights are split in two sections.
Each upper section will have to two pre-attached joining rods sticking out of the bottom.
1. Attach each upright (or bottom upright section if upright is in two sections) to each base using screws
provided.
2. FOR THE TWO-SECTION UPRIGHTS ONLY: See step 2 on page 1.
3. Place graphic in the upright channel.
4. Fasten graphic into place using headless set screws provided.
5. Attach next upright to graphic.
6. Fasten graphic into place using headless set screws provided.
NOTE: Model shown below may differ from your model, but assembly instructions remain the same.

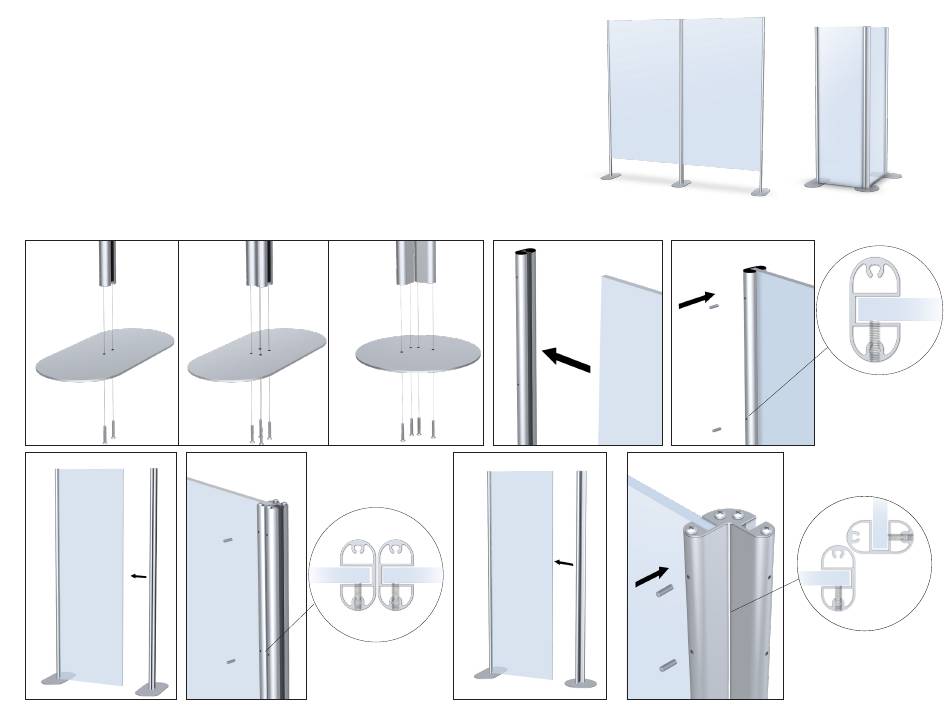

1. SKMM Base
1. SKCU Base
5. SKCU Upright
6. SKCU Upright
1. SKRA Base
3.
5. SKRA Upright
SKMM7 with SKCU7 shown
SKMM6 with SKRA6 shown
4.
6. SKRA Upright
