Testrite Visual XSD Series Manual

Led double sided light box

Download this manual

Charisma™ LED Double Sided Light Box - XSD Series

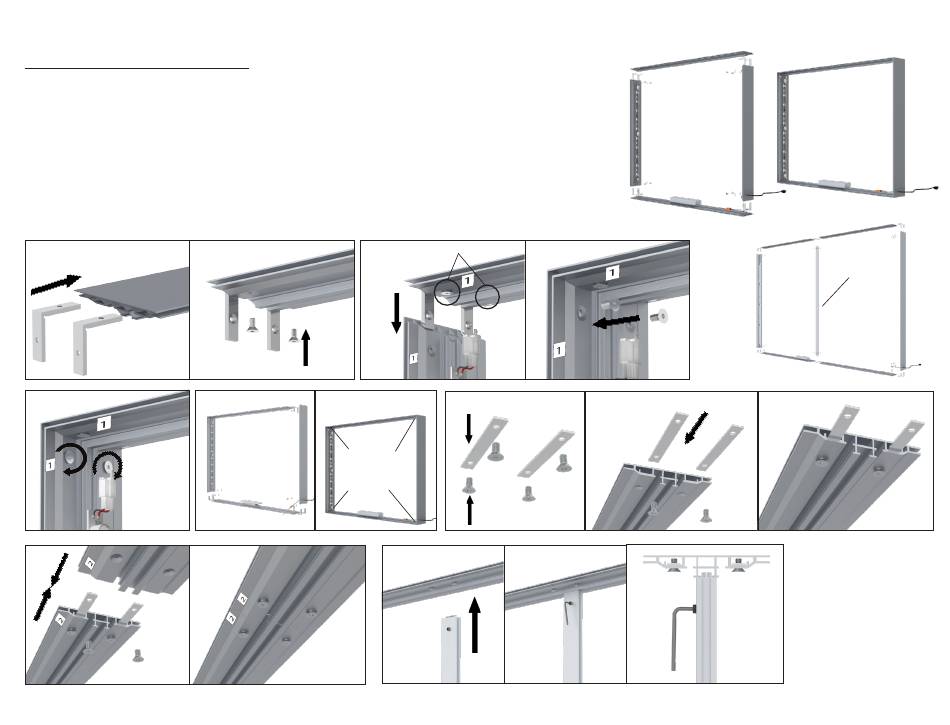

Page 1 - Assemble the Frame

First start by assembling corners. There are three (2) brackets per corner. All extrusion sections are numbered

to identify which pieces go together, 1 with 1, 2 with 2, etc.

1. Insert the bent bracket into the extrusion where shown. Tighten the first screw on the bracket ~75% only.

Take the mating extrusion piece with matching number, guide the corner brackets in and tighten the

second pair of screws ~75%. Do not fully tighten.

2. Repeat assembly steps for the three remaining corners. Fully tighten all bracket screws.

3. For larger boxes, sides may be built in multiple sections. These sections end in a straight cut (NOT a 45⁰

angle). Use the two (2) straight brackets to connect the two adjoining sections. The screws will be tightened

from the inside of the frame. Sections can be identified with matching numbers.

4. If provided, place center support bar bracket into frame channel and use the Allen key to expand the

bracket inside the channel to secure it in place.

1a.

1c.

Tighten

screws only

~75%

Corner 3

3b.

1b. Tighten screws only ~75%

Corner 2

Fully tighten

all bracket

screws

Corner 4

3a.

Support Bar

Version: 3

Page 1 of 5

Need help?

Do you have a question about the XSD Series and is the answer not in the manual?

Page 1 Charisma™ LED Double Sided Light Box - XSD Series Page 1 - Assemble the Frame First start by assembling corners. There are three (2) brackets per corner. All extrusion sections are numbered to identify which pieces go together, 1 with 1, 2 with 2, etc.
Page 2 Charisma™ LED Double Sided Light Box - XSD Series Page 2 - Connect Electrical Components 1. At each break in the extrusion, identify the orange or white electrical connector. Then connect the white female connectors to their matching male connectors and the orange female connector to their matching male connector.
Page 3 Charisma™ LED Double Sided Light Box - XSD Series Page 3 - Mounting 1. HANG: the frame using the pre-mounted eyebolts, after installing graphic (see next page for graphic installation). 2. BASES: Mount the frame to the bases using the hardware provided.
Page 4 Charisma™ LED Double Sided Light Box - XSD Series Page 4 - Install the Graphic 1. Plug frame into wall outlet. 2. To install the graphic, take the corner with the pull tag on it and press about 6”-10” of silicone into the frame channel corner A.
Page 5 Charisma™ LED Double Sided Light Box - XSD Series ELECTRICAL NOTE: This sign is intended to be installed in accordance with the Page 5 - Repair Instructions - Light Replacement: requirements of Article 600 of the National Electrical Code and/ 1.
