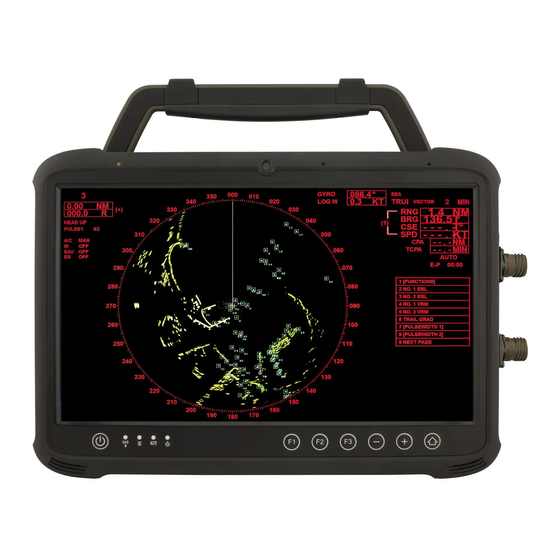

- Page 1 M133KML(HB) Series Military Ultra-Rugged Tablet Gen. Intel® Core™ i5-7200U Kaby Lake, 2.5 GHz (up to 3.1 GHz) Windows® 10 IoT Enterprise Quick Start Guide Version 1.0 Document Part No. 91521110107C Please read this instructions before operating the device and retain them for future reference.
-
Page 2: Table Of Contents
13.3" Military Ultra-Rugged Tablet M133KML(HB) Series Quick Start Guide Contents Chapter 1: Read Me First 1.1 Advisory Conventions 1.2 Safety Information 1.3 Handling and Maintenance Chapter 2: Getting Started 2.1 Overview 2.2 Unpacking 2.3 Description of Parts 2.4 LED Indicators 2.5 Combination Keys (Keyboard Key Emulation) -
Page 3: Chapter 1: Read Me First
Chapter 1: Read Me First Chapter 1: Read Me First 1.1 Advisory Conventions Four types of advisories are used throughout the user manual to provide helpful information or to alert you to the potential for hardware damage or personal injury. Note: A note is used to emphasize helpful information Important:... -
Page 4: Safety Information
13.3" Military Ultra-Rugged Tablet M133KML(HB) Series Quick Start Guide 1.2 Safety Information Do Not Expose the Battery Pack to Excessive Precaution on Battery Pack Heat, or Extreme Heat (Near Fire, in Direct Précaution avec le bloc-pile Sunlight for example) Generation of heat, ignition or rupture may result [FR] Ne pas exposer le bloc-pile à... - Page 5 Chapter 1: Read Me First General Product Safety Sécurité générale produits Do not block any ventilation openings. Do not Use only with its transport carriage, stand, place the product against a wall or in an tripod, console or table specified by the enclosed space as doing so might impede the manufacturer or sold with the product.
-
Page 6: Handling And Maintenance
13.3" Military Ultra-Rugged Tablet M133KML(HB) Series Quick Start Guide 1.3 Handling and Maintenance Gently wipe the display with a soft, lint-free cloth. Do not use alcohol or detergent on the product. General Guideline [FR] Essuyer délicatement l'écran avec un Guide Général chiffon doux non pelucheux. -
Page 7: Chapter 2: Getting Started
Chapter 2: Getting Started Chapter 2: Getting Started Congratulations on purchasing Winmate® Military Ultra-Rugged Tablet Computer M133KML(HB) Series. The rugged design allows you to use it in harsh outdoor environments. This quick start guide tells you step by step how to get the Tablet Computer up and running. -
Page 8: Description Of Parts
13.3" Military Ultra-Rugged Tablet M133KML(HB) Series Quick Start Guide 2.3 Description of Parts Dimensions: 338.5 x 240 x 44 mm Front: Left: Right: No Item Description Item Description 13.3-inch display with Protects I/O ports from 13.3” PCAP optical bonding and 10-... - Page 9 Chapter 2: Getting Started Rear: Top: Bottom: Item Description Battery Spring-loaded slider that Release latches the battery in. Latch to lock the battery in Battery place once the battery is Lock Latch inserted. Not spring-loaded. 7.4V, typ. 10280 mAh Li- Polymer Battery (2S2P), 11 Hours operating time Battery...
-
Page 10: Led Indicators
13.3" Military Ultra-Rugged Tablet M133KML(HB) Series Quick Start Guide 2.4 LED Indicators The M133KML (HB) Series Military Ultra-Rugged Tablet Computer has four LED status indicators located on the front side. Item Icon Description Power Indicator Blue– Tablet is ON No light– Tablet is OFF Battery Status Orange–AC adapter is plugged in and charging... -
Page 11: Chapter 3: First-Time Operation
Chapter 3: First-Time Operation Chapter 3: First-Time Operation 3.1 Quick Installation Guide To start using the tablet computer for the first time: • Install the SD card (If needed). • Install the SIM card (For WWAN equipped devices). • Install the battery. •... -
Page 12: Inserting Battery Pack
13.3" Military Ultra-Rugged Tablet M133KML(HB) Series Quick Start Guide Installing WWAN module and inserting Micro SIM card: 1. Disconnect any cords connected to the tablet computer. 2. Remove the service window in the rear by unscrewing four screws. 3. Remove the screw that is securing the WWAN module. -
Page 13: Using Hot-Swap Battery Feature
Chapter 3: First-Time Operation To remove the battery pack: 1. Shut down the tablet computer (or put it to sleep). Disconnect any cords connected to the tablet. 2. Turn the tablet computer over, back facing up. 3. Locate the Battery Lock Latch and push it to the “Unlocked” position. 4. - Page 14 13.3" Military Ultra-Rugged Tablet M133KML(HB) Series Quick Start Guide Finally, plug the AC power cord into the electrical outlet. Power/ RS-2232 Cable...
-
Page 15: Connecting To Serial Devices
3.7 Connecting to Serial Devices The M133KML(HB) Series tablet computer has MIL-STD-38999 connector for Power/ RS-232/422/485 Port. Use Power/ RS-232 external cable supplied with the tablet to connect the M133KML(HB) Series tablet computer to a serial device. Power/ RS-232 Cable... -
Page 16: Connecting To Ethernet Networks/ Usb Devices
3.8 Connecting to Ethernet Networks/ USB Devices The M133KML(HB) Series tablet computer has MIL-STD-38999 connector for LAN/ USB 2.0 port. Use LAN/ USB2.0 external cable supplied with the tablet to connect the M133KML(HB) Series tablet computer to either Ethernet (LAN) networks or USB device. -
Page 17: Kickstand Installation
Chapter 3: First-Time Operation 3.9 Kickstand Installation Important: Notice that kickstand is an optional accessory and may not be present in your device. Contact your sales representative for more information. Perform the following to install a kickstand: 1. Turn the tablet computer over, so the back of the device is facing up. 2. -
Page 18: Chapter 4: Operating The Device
13.3" Military Ultra-Rugged Tablet M133KML(HB) Series Quick Start Guide Chapter 4: Operating the Device 4.1 HotTab Introduction HotTab provides quick access to the tablet’s functions and features, such as setting up powering on/off built-in devices, programming function key. When operating system starts up, HotTab starts and runs in the background. - Page 19 Chapter 4: Operating the Device Icon Description Allows users to configure short cut to quickly access programs with a few tabs. Shortcuts Allows users to take a picture or record a video. User can also adjust setting related to camera in this menu option. Camera Enables/disables tablet computer’s hardware functions.
-
Page 20: Using Physical Function Keys (Hotkeys)
13.3" Military Ultra-Rugged Tablet M133KML(HB) Series Quick Start Guide 4.2 Using Physical Function Keys (Hotkeys) The function key mapping menu option allows user to change the physical function buttons, F1, F2 and F3. Users can change what application will be launched with short press or long press of keys. -
Page 21: Changing Touch Mode
Chapter 4: Operating the Device 4.3 Changing Touch Mode The M133KML(HB) ultra-rugged tablet supports three built-in operating modes, for users to choose under different usage scenarios, when any mode is chosen; the background of the icon will become green. Mode Description In Hand/Rain mode the touchscreen rejects false inputs from liquid drops. -
Page 22: Using Wireless Wan (3G Or 4G/Lte)
13.3" Military Ultra-Rugged Tablet M133KML(HB) Series Quick Start Guide Double-click a network to connect to it. Provide required authentication information if needed. To check the connection status, observe wireless network connection status icon in the Windows notification area. The more bars the icon shows, the better the wireless LAN connection strength is. -
Page 23: Turning On/Off The Led Indicators
Chapter 4: Operating the Device Item Status Color Description Orange BT is enabled. White BT is disabled. If the Wi-Fi function is disabled (white), tap on the BT icon to enable it (orange). Click the Bluetooth icon in the Windows notification area. A contextual menu for BT is displayed. To add a device, tap on Add a Bluetooth Device. -
Page 24: Using Camera
13.3" Military Ultra-Rugged Tablet M133KML(HB) Series Quick Start Guide 4.9 Using Camera The M133KML(HB) ultra-rugged tablet has 2 MP front camera and rear camera with auto-focus and LED light. Use cameras for data capturing purposes. To take photos or videos: 1. -
Page 25: Chapter 5: Troubleshooting
Chapter 5: Troubleshooting Chapter 5: Troubleshooting 5.1 Basic Troubleshooting Problem Solution The removable battery is • Make sure the AC adapter is properly connected, and that the not charging. removable battery is properly inserted. Nothing appears on the The tablet computer may be in sleep mode. Press the power button •... -
Page 26: Appendix
13.3" Military Ultra-Rugged Tablet M133KML(HB) Series Quick Start Guide Appendix Appendix A: Hardware Specifications Model Name M133KML(HB) Display Specifications Size 13.3-inch Resolution 1920x1080 Brightness 500 nits Contrast Ratio 1000:1 Viewing Angle 89/89/89/89 Bonding Optical bonding for sunlight viewability Touch Projected capacitive multi-touch... - Page 27 Appendix Continued Model Name M133KML(HB) Environment Operating Temperature -10°C to 50°C (14°F to 122°F) Storage Temperature -20°C to 60°C (-4°F to 140°F) Operating Humidity 30% to 80% RH, non-condensing IP Rating IP65 Shock MIL-STD-810G Method 516.6 Procedure Vibration MIL-STD-810G Method 514.6 Procedure I Drop MIL-STD-810G Method 516.6, 4 ft ESD (Contact/Air): 12kV/12kV...
- Page 28 Winmate Inc. 9F, No.111-6, Shing-De Rd., San-Chung District, New Taipei City 24158, Taiwan, R.O.C www.winmate.com Copyright © 2018 Winmate Inc. All rights reserved.
