OVERVIEW
This Wi-Fi module is intended to be installed in a compatible JCI thermostat. Please consult JCIThermostats.com for a
complete listing of compatible thermostats.
At minimum, the first 4 tasks of the 5 below must be successfully completed to access your thermostat remotely from a
browser. The 5th step is optional, although highly recommended, and is only needed to access your thermostat from a
compatible mobile device using the Skyport app.
THE 5 TASKS ARE:
1.
Installation of the module into a JCI Premium Series thermostat.
2.
Connection to a local Wi-Fi access point with Internet access. This is made easy with the help of the
Configurator app. (Downloaded from your mobile device's app store)
3.
Creation of a Skyport account with confirmation of a Skyport Messenger generated verification email.
4.
A 6-digit code obtained from the thermostat entered into a Skyport account.
5.
Download and install the Skyport app on your mobile device from your device's app store.
INSTALLATION OF THE MODULE
1.
Separate the front housing from the backplate
of the thermostat.
When stat is NOT mounted on wall...
3.
Carefully press
the front housing
with installed Wi-Fi
module back on to
the backplate.

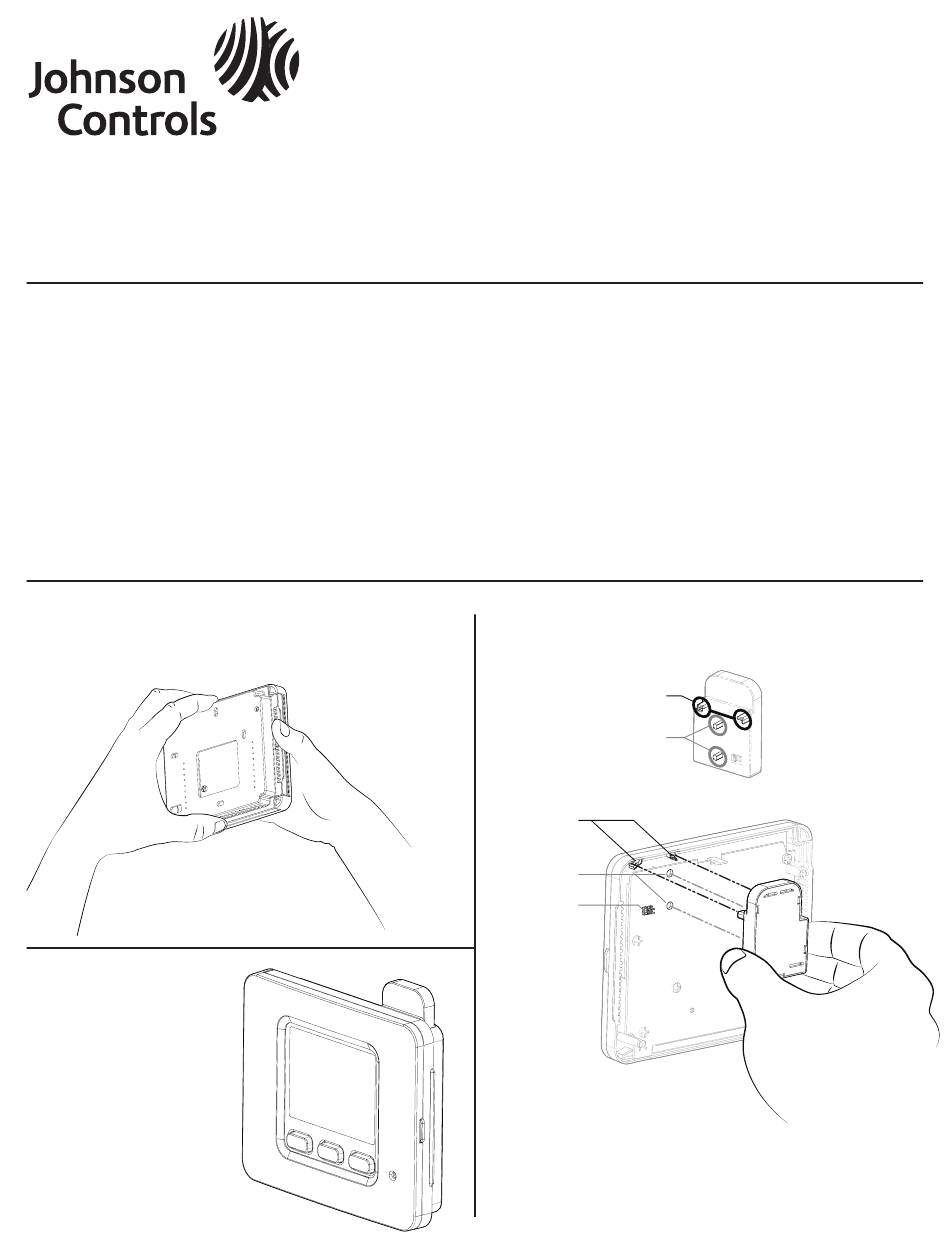

Installation Instructions
2.
Install the Wi-Fi module as shown onto the
printed circuit board.
HOUSING PINS
HOUSING PINS
PCB PINS
PCB PINS
HOUSING PIN GUIDE
HOUSING PIN GUIDE
PCB PIN HOLES
PCB PIN HOLES
HEADER PIN CONNECTOR
HEADER PIN CONNECTOR
FOR MODULE
FOR MODULE
model ACC-E-WIFI
