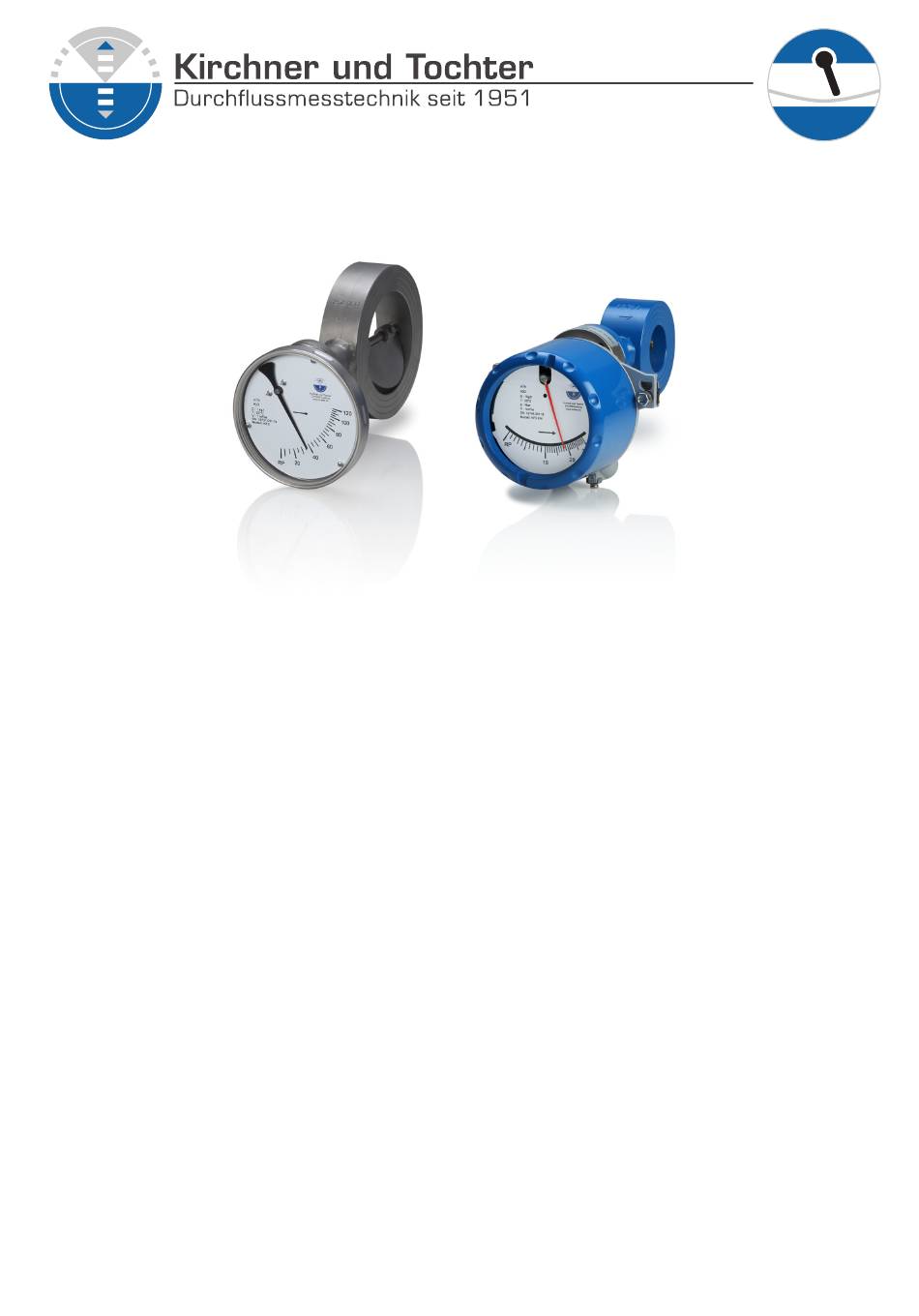

Assembly and operating Instructions

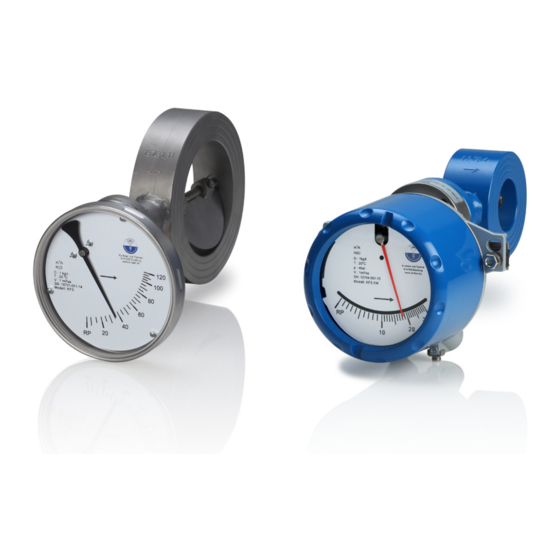

Flap-type Flow Meter
For use of the KFS device in hazardous areas, refer to the
"Supplementary installation and operating instructions - flap-type
Fon: +49 2065 9609-0 · Fax: +49 2065 9609-22
KFS-RK1, KFS-RK2
KFS-IK1, KFS-IK2
KFS-IKS1, KFS-IKS2
KFS-EM, KFS EMZ
KFS Ex
KFS-IK1 Ex, KFS-IK2 Ex
KFS-EM Ex, KFS EMZ Ex
flow meter KFS ... Ex"!
A. Kirchner & Tochter GmbH
KFS
Dieselstraße 17 · D-47228 Duisburg
Internet: www.kt-flow.de · e-mail: info@kt-flow.de
Version 6.3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KFS Series and is the answer not in the manual?

Questions and answers

Related Manuals for Kirchner und Tochter KFS Series

Summary of Contents for Kirchner und Tochter KFS Series

  • Page 1 Assembly and operating Instructions Flap-type Flow Meter KFS-RK1, KFS-RK2 KFS-IK1, KFS-IK2 KFS-IKS1, KFS-IKS2 KFS-EM, KFS EMZ KFS Ex KFS-IK1 Ex, KFS-IK2 Ex KFS-EM Ex, KFS EMZ Ex For use of the KFS device in hazardous areas, refer to the "Supplementary installation and operating instructions - flap-type flow meter KFS ...

  • Page 2: Table Of Contents

    Contents Contents General ........................4 Foreword ......................4 Exemption from liability ..................4 Safety ........................4 Symbol and meaning ..................4 General safety directions ..................4 Intended use .....................5 Information for Operator and operating personnel ...........5 Regulations and directives ................5 Compliance with the IP degree of protection ............5 Note for the use of equipment in Ex-proof version ...........6 Notice as required by the hazardous materials directive ........6 Transport and storage ....................6...
  • Page 3 Flap-type flow meters 6.3.1 Versions ....................18 6.3.2 Electrical signal output KFS-EM ...............18 6.3.3 Compliance with IP-degree of protection ..........19 Electrical connection KFS-EM ................20 6.4.1 HART® communication with ESK4 ............22 6.4.2 ESK4 - Loop Check Mode ................23 6.4.3 Technical Data EM ..................24 Plug-in contact unit IK1, IK2, IKS1, IKS2 ............25 6.5.1 Electrical connection .................25...

  • Page 4: General

    Exemption from liability Kirchner und Tochter accepts no liability for any damage or interruptions of operation resulting from human error, failure to comply with these installation and operating instructions, improper performance of installation and repair work, use of spare parts other than those from the original manufacturers or use of the KFS devices other than for the intended purpose.

  • Page 5: Intended Use

    Flap-type flow meters Intended use The KFS devices are designed and intended for measuring the flow of liquids and gases. They may only be installed between flanges in the pipeline. Select the KFS device model on the basis of the nominal diameter and nominal pressure at the site and also the kind of fluid product concerned;...

  • Page 6: Note For The Use Of Equipment In Ex-Proof Version

    In accordance with the law concerning handling of waste (critical waste) and the hazardous materials directive (general duty to protect), we would point out that all flow meters returned to Kirchner und Tochter for repair are required to be free from any and all hazardous substances (alkaline solutions, acids, solvents, etc.).

  • Page 7: Installation, Start-Up And Maintenance Of The Mechanical Part

    Flap-type flow meters Installation, start-up and maintenance of the mechanical part Preparatory work Have ready flanges and fastening materials as specified in EN 1092-1 for mounting the device between flanges. Between the flanges, include a distance of ring thickness plus 4 mm for the gaskets. Refer to assembly dimensions in sect.

  • Page 8: Start-Up

    Start-up Pressurize the measuring pipeline. Avoid water hammer or flow separation. Check the flange connections for leak-tightness and retighten bolted connections if necessary. Test the local indicator on the device with varying volumetric flow rates, starting with the maximum value. Maintenance The device is normally maintenance-free.
  • Page 9 Flap-type flow meters Do not change the original orientation of the flap (maintaining the direction of rotation appropriate to the indicator part ). The flap requires a minimum of 1 mm clearance on both sides (risk of jamming and sparking). Hazardous areas: Do not on any account remove the labelling on the scale casing containing information on explosion protection.

  • Page 10: Compliance With Ip Protection - Kfs With Standard Indicator Part

    5.4.1 Compliance with IP protection - KFS with standard indicator part When carrying out assembly work on the indicators (KFS, KFS-IK1, KFS-IK2, KFS-IKS1, KFS-IKS2, KFS-RK1, KFS-RK2), and to comply with the IP degree of protection, you should wear rubber gloves or similar expedient in order to obtain a maximum torque when tightening the bayonet joint.

  • Page 11: Setting The Pointer Reference Point - Kfs-Em

    Flap-type flow meters 5.4.4 Setting the pointer reference point - KFS-EM Tools needed: 1x flat-tip screwdriver ● Loosen the housing cover by turning it counter-clockwise and than remove it. ● With the flat-tip screwdriver, hold the pointer spindle in the resting position of the indicator part use your other hand to move the pointer against the frictional force of the pointer-fastening to the point on the scale marked "Rp".

  • Page 12: Installation, Start-Up And Maintenance Of Devices With Electrical Add-On Equipment

    Installation, start-up and maintenance of devices with electrical add-on equipment The installation, commissioning and maintenance of the mechanical part, see sect. 5 Installation and wiring work may only be carried out by qualified electricians. In hazardous areas the following installation standards must be observed: EN 60079-14 EN 60079-17 Preparatory work for installation and maintenance...

  • Page 13: Setting The Switching Points

    Flap-type flow meters 6.2.2 Setting the switching points The contact switching points are easy to adjust after removing the perspex hood. Use a finger to move the setpoint pointer of the switch to the appropriate point on the scale. Then check the switching point by moving the pointer beyond the set switching point.

  • Page 14: Kfs-Ik1 , Kfs-Ik2

    6.2.4 KFS-IK1 , KFS-IK2 Series IK built-in electrical signal transmitters are non-contacting, inductive make and break contacts which operate when a control vane moved by the setpoint pointer dips into and out of the slot initiator. The change in signal is used for driving a control device via an isolation switching amplifier.
  • Page 15 Flap-type flow meters Terminal assignment Terminal assignment Contact IK-1 Contact IK-2 Terminal assignment at right angle plug A. Kirchner & Tochter GmbH Dieselstraße 17 · D-47228 Duisburg Fon: +49 2065 9609-0 · Fax: +49 2065 9609-22 Internet: www.kt-flow.de · e-mail: info@kt-flow.de -15- Version 6.3...

  • Page 16: Kfs-Ik1 With Atex Approval

    6.2.5 KFS-IK1 with ATEX approval The Operator is required, as a matter of principle, to take note of the details given in the type examination certificate (TÜV 15 ATEX 7805 X). The contact IK Ex operates on the same principle as the above-mentioned in sect. 6.2.4. Devices with this contact satisfy the requirements of Directive 2014/34/ EU (ATEX) and are permitted to be operated in Zone 1 hazardous areas, provided they are fed from a certified and matched intrinsically safe circuit.

  • Page 17: Kfs-Iks1, Kfs-Iks2

    Flap-type flow meters 6.2.6 KFS-IKS1, KFS-IKS2 Built-in electrical signal transmitters of the IKS series are non-contacting make and break contacts which operate when a control vane actuated by the setpoint pointer dips into and out of the slot initiator. The signal change can be processed directly in a PLC system.

  • Page 18: The Indicator Part M40

    The indicator part M40 6.3.1 Versions KFS-M40 local mechanical indicator KFS-M40-IK1 with one inductive limit value switch KFS-M40-IK2 with two inductive limit value switches KFS-M40-IKS1 with one electronic limit value switch KFS-M40-IKS2 with two electronic limit value switches KFS-EM with 4 ... 20 mA output KFS-EM-IK1 with 4 ...

  • Page 19: Compliance With Ip-Degree Of Protection

    Flap-type flow meters 6.3.3 Compliance with IP-degree of protection The measuring device meets all requirements of protection category IP66/68. Therefore it is essential to observe the following points: ● Use only original gaskets. They must be clean and free of any damage. Defective gaskets must be replaced.

  • Page 20: Electrical Connection Kfs-Em

    Electrical connection KFS-EM The plug-in type connection terminals of the ESK4 module in the M40 indicator part can be removed to connect the cables. Terminal connection pluggable; < 2,5 mm² Type of connection 2 wire current sink - polarity reversal protection only for connection to extra-low voltage according to SELV or PELV ...
  • Page 21 Flap-type flow meters  Terminal connection  Converter supply isolator with electrical isolation  Power supply (see supply isolator information)  Measuring signal 4...20 mA  External load, HART® communication Connections at hazardous locations Before installation in hazardous location read the Supplementary Installation and Operating Instructions - Flap-type flow meter KFS ...

  • Page 22: Hart® Communication With Esk4

    6.4.1 HART® communication with ESK4 HART® communication is not obligatory in order to operate the ESK4. When HART® communication is carried out with the ESK4, the analogue measured data transmission (4...20 mA) is not impaired in any way. Exception for multidrop operation. In multidrop mode, a maximum of 15 devices with HART®...

  • Page 23: Esk4 - Loop Check Mode

    Flap-type flow meters Self monitoring - Diagnostics During both start-up and operation, a wide variety of diagnostic functions are performed cyclically in the ESK4 / ESK4A in order to guarantee function reliability. When an error is detected, a failure signal (high) is activated (current >...

  • Page 24: Technical Data Em

    ● Press and hold the microswitch  for more than 6 seconds to activate loop check mode . The current output jumps to constant 4mA. ● Change the current output from constant 4 to constant 20 mA as often as you like by briefly pressing it (less than 6 seconds) to check the function of the measuring circuit.

  • Page 25: Plug-In Contact Unit Ik1, Ik2, Iks1, Iks2

    Flap-type flow meters Plug-in contact unit IK1, IK2, IKS1, IKS2 INFO: KFS-M40-IK/IKS and KFS-EM may be combined! Indicator M40:  contact unit IK/IKS  EM current output 4 … 20 mA The flap-type flow meter KFS can be equipped with a maximum of two inductive limit value switches.
  • Page 26  2-wire limit switch SC3,5-NO-Y NAMUR  3-wire limit switch SB3,5-E2  Terminal connection MIN contact  Terminal connection MAX contact  3-wire load  NAMUR isolated switching amplifier  3-wire power supply Electrical connection of limit contact in 2-wire technology Terminal assignment for SC3,5-N0-Y Contact Plug colour...

  • Page 27: Setting The Limit Value

    Flap-type flow meters 6.5.2 Setting the limit value Setting is made directly via the contact pointers  and : 1. Unscrew housing cover. scale opening 2. Move scale to the side. 3. Slightly loosen locking screw . 4. Slide scale back up to point where it snaps into place.

  • Page 28: Technical Data

    6.5.5 Technical Data KFS‑...‑IK1/2 2-wire SC3,5-N0-Y Switching element NAMUR NC Nominal voltage U Current consumption: Pointer vane not sensed ≥ 3 mA Pointer vane sensed ≤ 1 mA Ambient temperature -25 ... +100 °C EMV according NE21 SIL according IEC 61508 Ex-approval PTB 99 ATEX 2219X only with intrinsically safe isolating switch amplifier...

  • Page 29: Replacement - Retrofitting An Esk4 And Its Calibration

    3. As last the connector 11/12 is inserted Desired changes of the measuring range, medium temperature, medium, density, viscosity or pressure is desired can be carried out at Kirchner und Tochter. A. Kirchner & Tochter GmbH Dieselstraße 17 · D-47228 Duisburg Fon: +49 2065 9609-0 ·...

  • Page 30: Retrofitting A Second Limit Value Switch

    Retrofitting a second limit value switch The retrofit kit consists of the required contact pointer and integrated contact. The connecting cable is fitted with the integrally moulded plug. 1. Unplug the contact unit from the module rack. 2. Remove locking screw . Caution: Spring ...
  • Page 31 Flap-type flow meters The flow totalizer ESK4-T (EMZ) is the combination of the analogue current output ESK4 (EM) and the display module ESK4-IO. Both modules are installed together in the M40 display part, the ESK4-IO can only be used together with the ESK4. An LC display indicates the measured value with units resp.

  • Page 32: Component Overview For Electrical Retrofit

    Component overview for electrical Retrofit Limit switch board IK1/IKS1 MIN Limit switch board IK1/IKS1 MAX Limit switch board IK2/IKS2 MINMAX Standard scale Scale with cutout for LC-Display (ESK4-T) Sensor module ESK4 (4…20 mA) ESK4 I/O LCD module Cover for ESK4-T Ribbon cable between modules for ESK4-T Terminal connector for ESK4: 11/12 for 4 …...

  • Page 33: Service

    Service All devices with defects or deficiencies should be sent directly to our repair department. In the service area of the Kirchner und Tochter homepage (www.kt-flow.de) you will find the declaration of decontamination as download and more information about returns.

  • Page 34: Technical Data

    Technical Data General technical data Measuring accuracy 5 % FS Scale in physical units, e.g.: l/h, m³/h Length of scale max. 95 mm Measuring range min. 1:10 Degree of protection, Standard: IP66; M40: IP68 (KFS-M40) indicator part Corrosion protection for epoxy paint, kiln-dried, traffic blue steel version (RAL 5017), satin finished...

  • Page 35: Materials

    Flap-type flow meters Materials Material, ring Wetted internals Wetted gasket S355 1.4571 Sil 4400 1.4571 1.4571 Sil 8800 1.4571 EPDM 1.4571 EPDM PVDF 1.4571 Indicator part KFS-M40 scale casing stainless steel 1.4301 aluminium painted pointer aluminium painted aluminium painted scale aluminium coated aluminium coated screen...

  • Page 36: Measuring Ranges H

    Measuring ranges H Standard measuring ranges [m³/h] H O at 20 °C 0,5 - - 12 0,5 - 1,8 - 18 - 30 0,6 - - 10 - 20 - 30 - 50 0,8 - - 20 - 35 - 50 - 70 - 20 - 40...

  • Page 37: Measuring Ranges Air

    Flap-type flow meters Measuring ranges air Standard measuring ranges [m³/h] air at STP minimum range maximum range 1000 2200 3000 3000 3000 1000 4000 1200 5000 at STP: at standard conditions (0 °C and 1013 mbar abs.) intermediate measuring ranges possible The measuring ranges for the series KFS-EM differ slightly from the above values.
  • Page 38 ASME flange Weight [kg] KFS-IK KFS-EM * DN d connection Steel (ASME) (ASME) (ASME) 1“ 1¼“ 1½“ 50 102 2“ 65 122 2½“ 80 138 3“ 100 158 4“ 125 188 5“ 150 212 6“ 200 268 11,4 8“ 250 320 13,0 10“...

  • Page 39: M12 Right Angle Plug

    Flap-type flow meters M12 Right angle plug M12 x 1 Right angle plug field-wireable female connector, Connector M12 x 1, angled Number of poles 4-pole, A-coding Contacts metal, CuZn, optalloy-plated Contact carriers plastic, PA, black Grip plastic, PBT, black Seal plastic, FKM Degree of protection IP67 only tightened with screws...

  • Page 40: Spare Parts, Accessories

    Spare parts, accessories 10.1 KFS with standard idicator part and limit value switches A. Kirchner & Tochter GmbH Dieselstraße 17 · D-47228 Duisburg Fon: +49 2065 9609-0 · Fax: +49 2065 9609-22 Internet: www.kt-flow.de · e-mail: info@kt-flow.de -40- Version 6.3...
  • Page 41 Flap-type flow meters KFS with standard indicator part Note: In the explosion-proof versions a grounding cable for connection to the potential equalization system is placed on the back of the indicator part (not shown here). Indicator part KFS-IK1, KFS-IK2, KFS-IKS1, KFS-IKS2, KFS-RK1, KFS-RK2 Item Qty Description Item Qty...

  • Page 42: Kfs-Em

    10.2 KFS-EM Item Qty Description housing cover hexagon screw pointer pointer shaft magnet housing gasket rear wall scale with nameplate feather wave hexagon screw M8 ring screws (flap) flap Note: In the explosion-proof versions a grounding cable for connection to the potential equalization system is placed on the back of the indicator part (not shown here).

  • Page 43: Assembly Aid Kfs-M40/Em (Optional)

    Flap-type flow meters 10.3 Assembly aid KFS-M40/EM (optional) The special design of the assembly aid prevents excessive torque when tightening the M40 housing cover. Tightening and loosing gets safer and easier. The installation aid is available on request. housing cover assembly aid guidance groove A.
  • Page 44 The devices from Kirchner und Tochter have been tested in compliance with applicable EC/EU CE-regulations of the European Community. The respective declaration of conformity is available on request. Subject to change without notice. The current valid version of our documents can be found at www.kt-flow.de.
