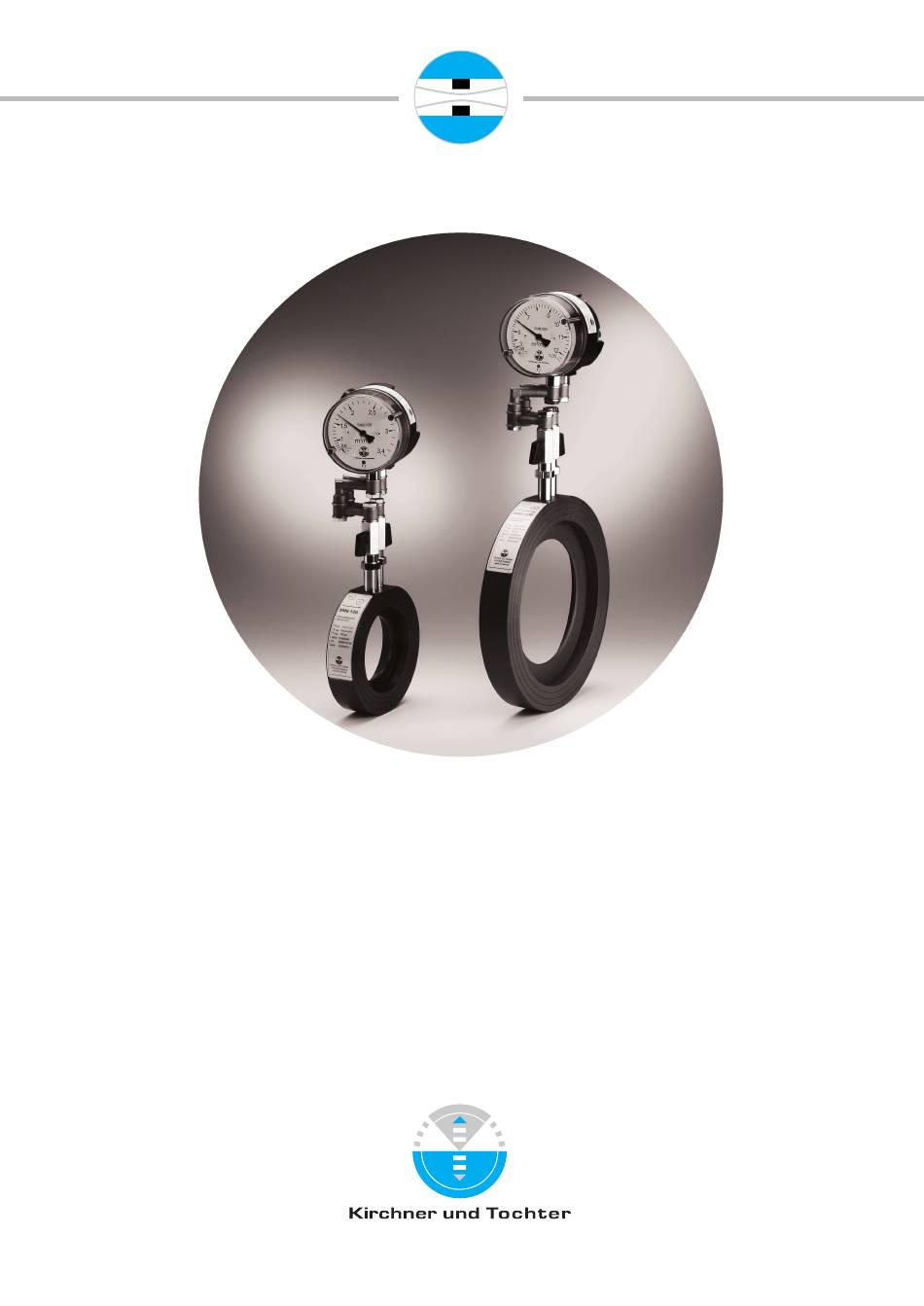

- Page 1 Sprinkler measuring orifice Assembly and operating instructions Sprinkler measuring orifice SMB/SMB-OE A. Kirchner & Tochter GmbH Dieselstraße 17 · D-47228 Duisburg Fon: +49 2065 9609-0 · Fax: +49 2065 9609-22 Internet: www.kt-web.de · e-mail: info@kt-web.de Version 2.1...
-
Page 2: Table Of Contents
Sprinkler measuring orifice Table of contents 1 General Preface ......................1 Exclusion of liability ..................1 2 Safety General safety information ................1 Proper use ....................2 Explanation of pictographs and signs ............... 2 Information on safety for owner and operators ..........2 Regulations and guidelines ................ -
Page 3: General
Hazards by electric energy or released observed. media energy must be prevented. Exclusion of liability Kirchner und Tochter will not accept any liability for damage or disruptions caused by operating errors, non- observance of these assembly and operating instructions, inexpert... -
Page 4: Proper Use
Kirchner und Tochter only. the regulations on the prevention of... -
Page 5: Description
Sprinkler measuring orifice Description Field of application The sprinkler measuring orifice SMB is a measuring device employed to measure the flow rate in pipework of stationary sprinkler systems. Design and function Due to physical reasons, dif ferent pressure potentials are found on both sides of the orifice (5). -
Page 6: Installation Variants
Sprinkler measuring orifice Installation direction of flow Installation direction of flow from left to right from right to left Installation direction of flow Installation direction of flow from top to bottom from bottom to top Ill. 2 Installation variants Thanks to the special articulated design, the dial gauge of the sprinkler measuring orifice pivots by 180 degrees in both directions. -
Page 7: Installation
Sprinkler measuring orifice Installation Installation may be effected by trained personnel only! Preparation for installation • Verify the local conditions and the direction of flow inside the pipework at the place of installation of the sprinkler measuring orifice. • M a k e s u r e t h a t t h e... -
Page 8: Installation Of The Dial Gauge
Sprinkler measuring orifice The flow direction has to coincide with the hand on the measuring orifice. I n s e r t t h e r e m a i n i n g s c r e w s a n d u n i f o r m l y t i g h t e n a l l... -
Page 9: Commissioning
Sprinkler measuring orifice Commissioning Zero-point adjustment In case the hand of the dial gauge is not within the range of the rest position marked RP with the flow cut off, the sprinkler measuring orifice has to be readjusted as follows: •... -
Page 10: Maintenance
Sprinkler measuring orifice Maintenance Disposal T h e s p r i n k l e r m e a s u r i n g o r i f i c e i s For a better environment. maintenance-free. In order to warrant Please help us protect our environment a reliable operation and a long service b y d i s p o s i n g o f t h e p a r t s u s e d i n... -
Page 11: Technical Data
Sprinkler measuring orifice Technical data 10.1 General technical data VdS approval G 4990049 Measuring principle Differential pressure metering at orifice Materials: Orifice hard-coated aluminum Screwed connections nickel-plated brass, 1.4308 Ball valves nickel-plated brass Dial gauge Aluminum Scale in m³/min or % at SMB-OE Measuring accuracy 2.5% FS max. -
Page 12: Inlet And Outlet Sections
Sprinkler measuring orifice 10.4 Inlet and outlet paths Ill. 8 The optimum accuracy is obtained, if the pipe configuration conforms to the VdS guidelines. The following inlet and outlet sections that must not contain any valves, knees, elbows, changes in cross-section or similar, apply to the various SMB models. When using pumps creating fluctuations in the volume flow (possible with centrifugal pumps driven by a diesel engine), we recommend to extend the inlet section from 10 d to 18 d. -
Page 13: Dimensions
Sprinkler measuring orifice 10.5 Dimensions SMB 100 /min SMB 100 3,3m /min 0,6m /min 16bar Anerkennung Nr.: G XXXXXXX Ser. Nr.: 100000000 Kirchner und Tochter D-47228 Duisburg URL www.kt-web.de Ill. 9 Model [mm] [mm] [mm] 84.1 SMB 100 108.9 SMB 150 161.8... -
Page 14: Installation Kits
Sprinkler measuring orifice 10.6 Installation kits Quantity Designator installation kit DN 80 hexagon bolt DIN 933 - M16 x 110 - 8.8 galvanized nut DIN 934 - M16 - 8 washer DIN 125 - 17 - A2 seals Ø 133 x Ø 86 x 2 DN 100 hexagon bolt DIN 933 - M16 x 110 - 8.8 galvanized nut DIN 934 - M 16 - 8... -
Page 15: Spare Parts
Sprinkler measuring orifice Spare parts Bill of parts Pos. Qty. Designator Material Dial gauge Measuring orifice hard-coated AI Joining piece CuZn nickel-plated Straight joint 1.4308 L-type joint 1.4308 Screw CuZn nickel-plated Double-threaded nipple CuZn nickel-plated Ball valve CuZn nickel-plated Sealing ring CuZn nickel-plated/NBR Clear-view cover Perspex... -
Page 16: Kirchner & Tochter Gmbh Dieselstraße 17 · D-47228 Duisburg
CE-regulations of the European Community. The respective declaration of conformity is available on request. The Kirchner und Tochter QM-System will be certified in accordance with DIN-EN-ISO 9001:2000. The quality is systematically adapted to the increasing demands.
