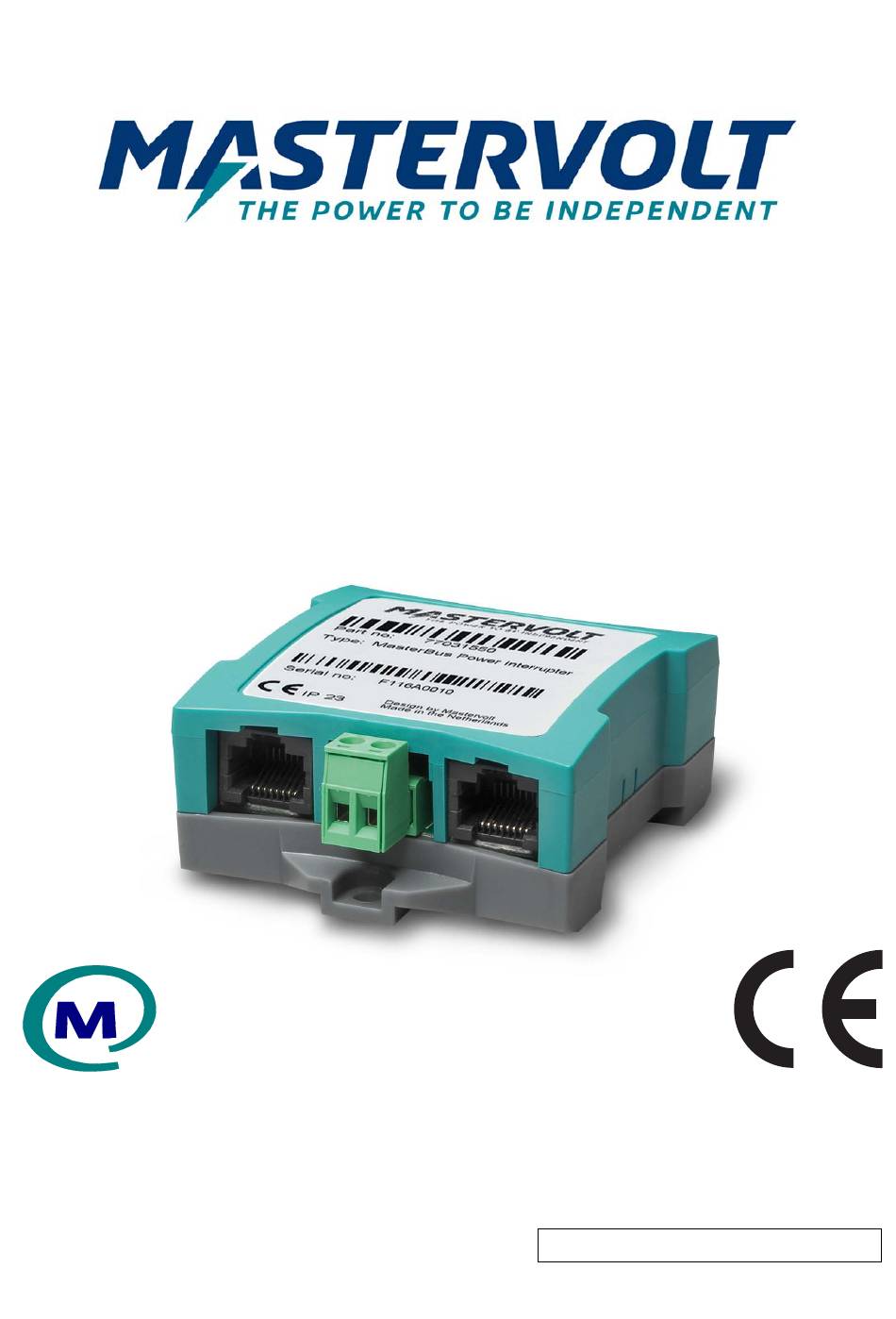

USERS MANUAL / GEBRUIKERSHANDLEIDING
BETRIEBSANLEITUNG / MANUEL D'UTILISATION
MANUAL DE UTILIZACION / INSTRUZIONI PER L'USO

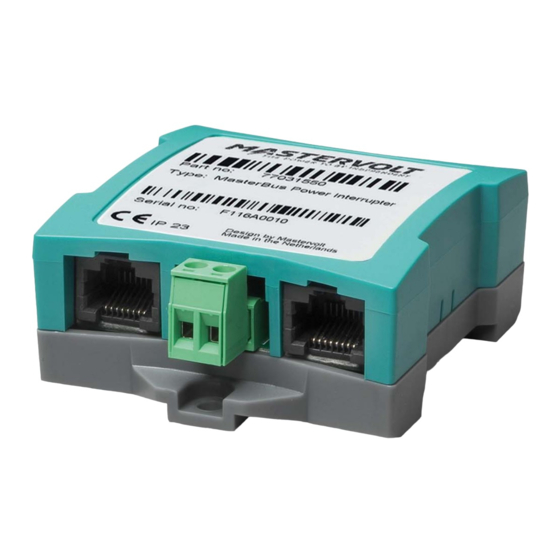

MasterBus Power Interrupter
Switch off (part of) MasterBus network for power saving
MASTERVOLT
Snijdersbergweg 93,
1105 AN Amsterdam
The Netherlands
Tel.: +31-20-3422100
Fax.: +31-20-6971006
ENGLISH:
PAGE 1
www.Mastervolt.com
Copyright © 2015 Mastervolt v 1.0 May 2015
Advertisement
Related Manuals for Mastervolt MasterBus Power Interrupter
Summary of Contents for Mastervolt MasterBus Power Interrupter
- Page 1 MANUAL DE UTILIZACION / INSTRUZIONI PER L’USO MasterBus Power Interrupter Switch off (part of) MasterBus network for power saving MASTERVOLT Snijdersbergweg 93, 1105 AN Amsterdam The Netherlands Tel.: +31-20-3422100 Fax.: +31-20-6971006 ENGLISH: PAGE 1 www.Mastervolt.com Copyright © 2015 Mastervolt v 1.0 May 2015...
- Page 2 On/ Off/ Last Event commands Activate The MasterBus Power Interrupter can be switched on (Activated) or off (Standby) with this Event command. MPC stop Do not use. MPC reduce Do not use. May 2015 / MasterBus Power Interrupter / EN...
- Page 3 Functional scheme of the MasterBus Power Interrupter. Operation. One (free choice) of the MasterBus connectors The MasterBus Power Interrupter can be used to should be connected to a MasterBus powering make a segregation between powering and non- device, like a MasterBus USB Interface or Mass powering devices on a MasterBus network.
- Page 4 4 SPECIFICATIONS Model: MasterBus Power Interrupter Article number: 77031550 Delivery also includes: MasterBus cable, MasterBus Terminating device, User’s manual Function of instrument: Switching off (part of) MasterBus network for power saving Languages available: English Power consumption: 132 mW MasterBus Powering: Din rail mounting: Yes, Din rail 30 mm [1.2 inch]...
