Summary of Contents for Mastervolt MASS SYSTEMSWITCH 10

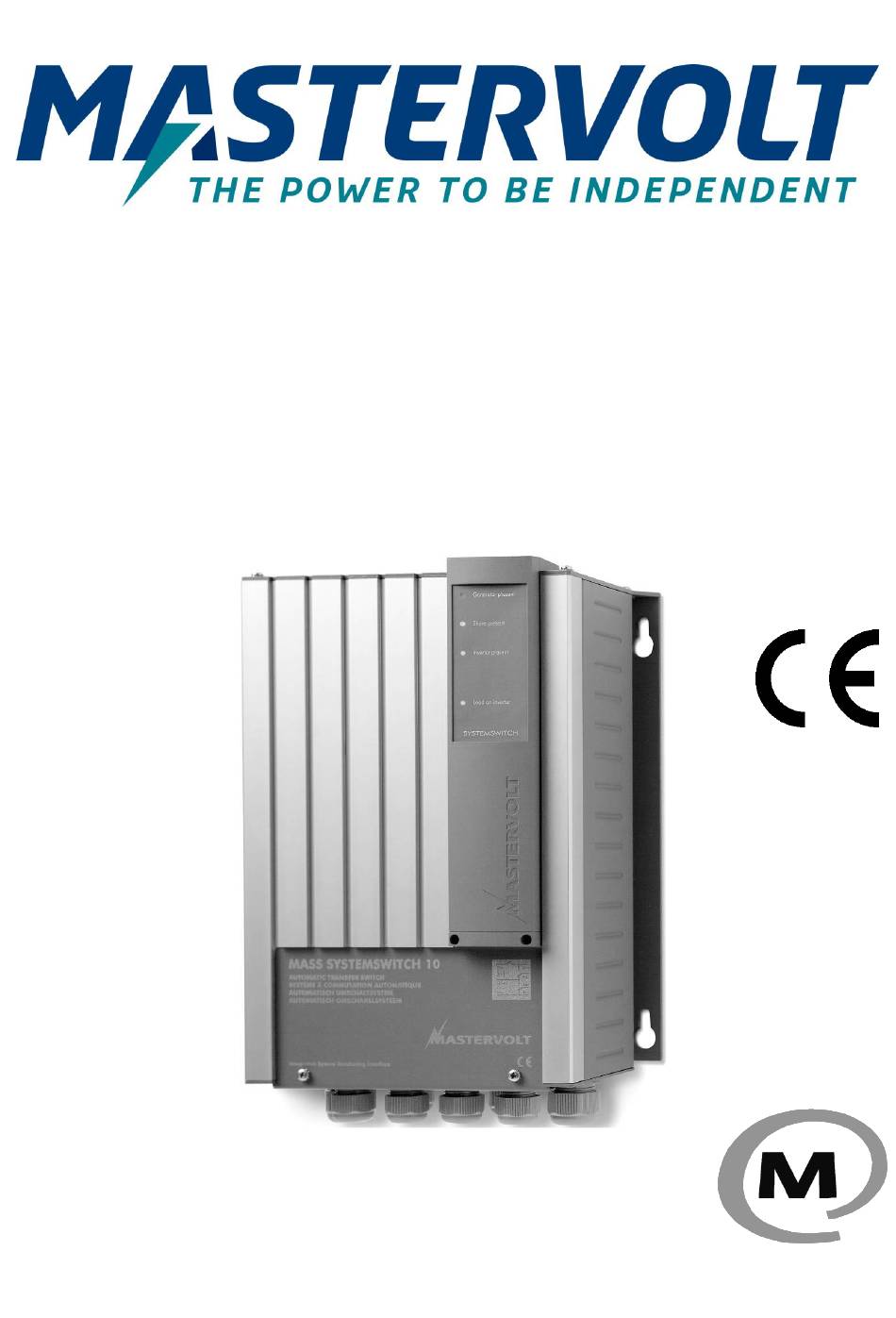

- Page 1 MASS SYSTEMSWITCH Automatic AC transfer switch USER AND INSTALLATION MANUAL 10000015201/03 To download this manual in other languages, please visit our website: www.mastervolt.com...
-
Page 2: Table Of Contents
Mass Systemswitch 16 kW (230V) – User and Installation Manual TABLE OF CONTENTS 1 GENERAL INFORMATION ........3 General ............. 9 Use of this manual ........... 3 Environment ............. 9 Guarantee Specifications ......... 3 Tools required for installation ......9 Quality ............. -
Page 3: General Information
Mass Systemswitch 16 kW (230V) – User and Installation Manual 1 GENERAL INFORMATION The MASTERVOLT Mass Systemswitch is the heart of the QUALITY AC installation. It is designed to take over manual During the production and prior to their delivery, all our switching between three different power sources. -
Page 4: Safety Guidelines And Measures
Use other than as mentioned under 2 is not and pay careful attention when installing the Mass considered to be consistent with the intended Systemswitch. Avoid short circuiting. purpose. MASTERVOLT is not liable for any damage resulting from the above. May 2007 / Mass Systemswitch / EN... -
Page 5: How It Works
Mass Systemswitch 16 kW (230V) – User and Installation Manual 3 HOW IT WORKS SOURCE PRIORITY AC INPUTS The Mass Systemswitch switches the right AC power Three AC-sources can be connected to the Mass source to the output(s). Therefore the Mass Systemswitch Systemswitch: is equipped with a source priority. -
Page 6: Inverter Only Output (No Break)
MONITORING AND CONTROL 3.4.1 Remote control panel (optional) For remote operation Mastervolt offers a wide range of The LED indicators on the front of the cabinet indicate the intelligent remote control panels that can be connected to status your AC installation. The meaning of the LEDs is the Mass Systemswitch, giving you a status overview of explained in figure 2. -
Page 7: Masterbus (Optional)
Power network: fully decentralized data network communication between Mastervolt devices such as the inverter, battery charger, generator, batteries and many Inverter Short break more. See section 5 for details. LOAD ON INVERTER MODE Figure 4: Load on inverter mode is ON, while power from... - Page 8 Mass Systemswitch 16 kW (230V) – User and Installation Manual Maximum available shore or Switching on level of the load generator power on inverter mode Load Actual shore or generator load Inverter load Time Load on inverter mode active Run time of the load on inverter mode Switching on delay time (shore load only)
-
Page 9: Installation
Mass Systemswitch 16 kW (230V) – User and Installation Manual 4 INSTALLATION WARNING Be sure that all AC power sources are switched disconnected during installation. WARNING External fuses and earth leakage switches must be integrated in the wiring of all inputs and outputs of the Mass Systemswitch. -
Page 10: Ground Connections
Mass Systemswitch is connected to the system ground. ground. Using an isolation transformer will solve this Connect the inverter’s earth terminal (PE) to the hull or the problem. Mastervolt can provide a suitable transformer. chassis. For safety reasons it is very important that all ground... -
Page 11: Inputs
Mass Systemswitch 16 kW (230V) – User and Installation Manual Figure 8 INPUTS 4.10 OUTPUTS See figure 8 and the table below to connect the AC power The output terminals are situated on the right hand side. sources. Refer to section 3.2 for additional information Connect the load to the terminals as indicated in figure 8 about the AC inputs. -
Page 12: Remote Panel (Optional)
4.13.1 MasterBus (optional) During first commissioning the Mass Systemswitch will be See figure 8. If a Mastervolt remote control panel is recognized by the MasterBus network automatically. The applied, you can fix the wires of the 10x0.5 mm² cable remote control panel of the MasterBus network will from the remote panel to the remote control connector (ref indicate that a new device was found. -
Page 13: Masterbus
For central monitoring and control of the connected target (see Generator devices Mastervolt offers a wide range of panels which manual) show full status information of your electrical system at a See section 6.3.4 for the list of events sources and section glance and a push of a button. -
Page 14: How To Set Up A Masterbus Network
As all powering devices are galvanically isolated, Connections between the devices are made by multiple powering devices are allowed. standard straight UTP patch cables. Mastervolt can supply these cables. Do not make ring networks. As with all high speed data networks, MasterBus needs a terminating device on both ends of the network. -
Page 15: Specifications
(AC available on all inputs) Power consumption: < 1VA (only inverter power available) Connection for optional Yes, see www.mastervolt.com for an overview of available models Mastervolt remote panel: Compatible with MasterBus Yes, see section 6.3 for settings LED indications: AC source present for each input, AC output present for each output and Load on inverter On: 12…22ms / Off: 4…19ms... -
Page 16: Dimensions
Mass Systemswitch 16 kW (230V) – User and Installation Manual DIMENSIONS All dimensions are in millimeters. Figure 12: dimensions of the Mass Systemswitch... -
Page 17: Masterbus
Mass Systemswitch 16 kW (230V) – User and Installation Manual MASTERBUS 6.3.1 Menu level 2: Monitoring Adjustable Value Meaning Default range Load on inverter See section 3.6 Auto Auto/On/Off Shows name of the input that supplies electric power to the short Generator/ Short break src (read only) -
Page 18: Menu Level 3: Configuration
Mass Systemswitch 16 kW (230V) – User and Installation Manual 6.3.3 Menu level 3: Configuration Factory Value Meaning Adjustable. range setting General Language that is displayed on a monitoring device connected English/ Nederlands/ Language English to the MasterBus Deutsch/ Français Device Name of this device. -
Page 19: List Of Event Sources
Mass Systemswitch 16 kW (230V) – User and Installation Manual 6.3.4 List of event sources Below the list of event sources of the Mass Systemswitch is shown. These event sources can be used to initiate an event command at another device that is connected to the MasterBus. Event source Description Actual power at the Generator input is more than 80% of the Generator power setting (see section... - Page 20 N86 W12500 Westbrook Crossing 42 Apollo Drive, Rosedale 1105 AN AMSTERDAM Menomonee Falls, WISCONSIN 53051 AUCKLAND 0632 The Netherlands New Zealand +31 (0)20 34 22 100 +1 800 307 6702, Option 1 + 64 9 415 7261 info@mastervolt.com technical@marinco.com enquiries@bepmarine.com...
