VIBIA Suite 6010 Assembly Instructions Manual

SUITE
Design by Jordi Vilardell & Meritxell Vidal.
Reference
6010.
Application
Floor Lamps
Installation type
Surface
Description

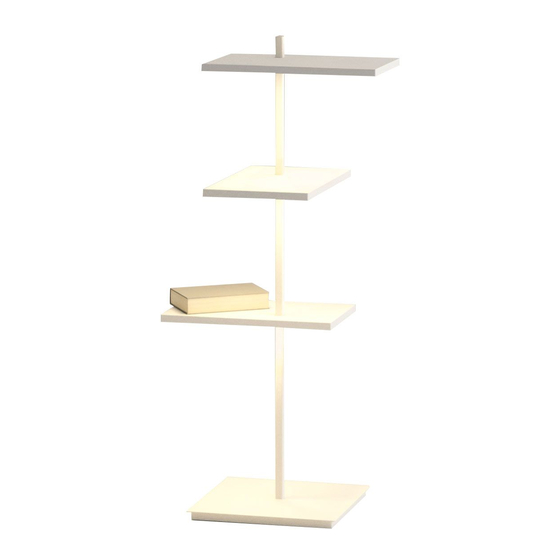

Suite is a floor lamp that boasts different functions, where matter and light are integrated in a
single body. Suite boasts different stands, as well as LED lighting and a USB charging station.
Designed by Jordi Vilardell & Meritxell Vidal. Available in two finishes: dark brown and white.
Diffuser
Polycarbonate diffuser
Materials
Shelf: Aluminum
Diffuser: Polycarbonate
Vertical tube: Steel
Base: Steel
Finish
6010-14 Matt dark-brown lacquer (RAL 8019)
6010-93 Matt white lacquer (RAL 9016)
Sketch
Electrical characteristics
6 x LED STRIP 24V 1,63W
VIBIA LIGHTING, S.L.U. Barcelona, 72 - 74. 08820 El Prat de Llobregat (Barcelona - Spain). Tel 934 796 970. Fax 934 796 973.
vibia@vibia.com www.vibia.com
2700K CRI >80 791 lm 81 lm/W
Led
418 lm 43 lm/W
Fixture:
CV - Contant Voltage 220-240V 50Hz
Driver included:
NO DIM
Electronic dimming
Technical characteristics
- LED on/off switch under the shelf
- USB charging connection
Physical characteristics
1 Box / 0.73 x 0.54 x 1.39 m. / Vol. 0.4445 m³ /
Gross weight 34.9 kg. / Net weight 19.7 kg.
Installation and assembly
Please, see the installation manual
Light distribution
Indirect lighting
Lamp that emits an upward or backward beam that is reflected by the ceiling or wall.
Photometric data
Total 9.8 W
Certificates
