2-1-2 WIRELESS LAN INDICATOR DISPLAY

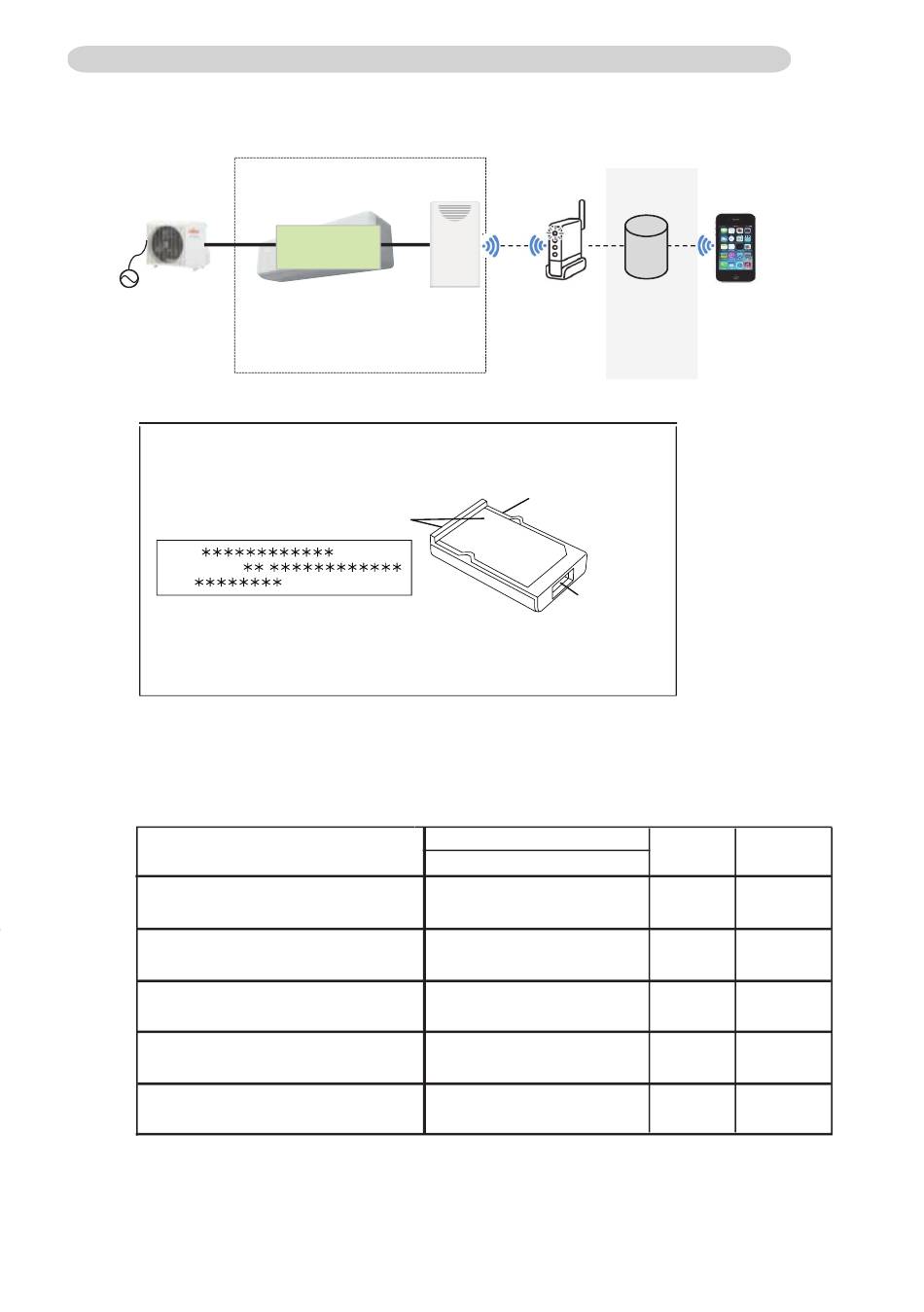

1. WIRELESS LAN CONTROL system layout

Indoor unit
Outdoor unit

2. NAME OF PARTS

MAC:
SSID :AP-WF
PIN:

3. WIRELESS LAN ADAPTER INDICATOR

Please refer the flashing pattern as follows.
W-LAN LED (orange) operate as follow according to the error contents.
Error Contents
External Communication Error
(Communication Error of between
Indoor Unit to Wireless LAN adapter)
Network Communication Error
(Communication Error of between
Wireless LAN Router to Wireless LAN adapter)
Network Communication Error
(Communication Error of between
Wireless LAN Router to CLOUD)
Communication Error
("Trou. 29" and "Trou. 32" are simultaneous Error)
Wireless LAN adapter Non-Energized
*: On; Connection information with router is available, Off; Connection information with router is unavailable.
Controller PCB
Parts：
Wireless LAN
adapter
Wireless LAN label
-
Wireless LAN adapter Indicator
Internet
Wireless
LAN
router
Wireless LAN adapter
Connection port
LED (Orange)
On or Off *
Flashing slow
On/Off=7sec/2sec
On
Flashing slow
On/Off=7sec/2sec
Off
02-02
CLOUD Mobile App
(Mobile device)
Trouble
Error Code
shooting
18 29
No Error
30
No Error
31
18 32
18 33
