Ozobot Evo Quick Start Manual page 3

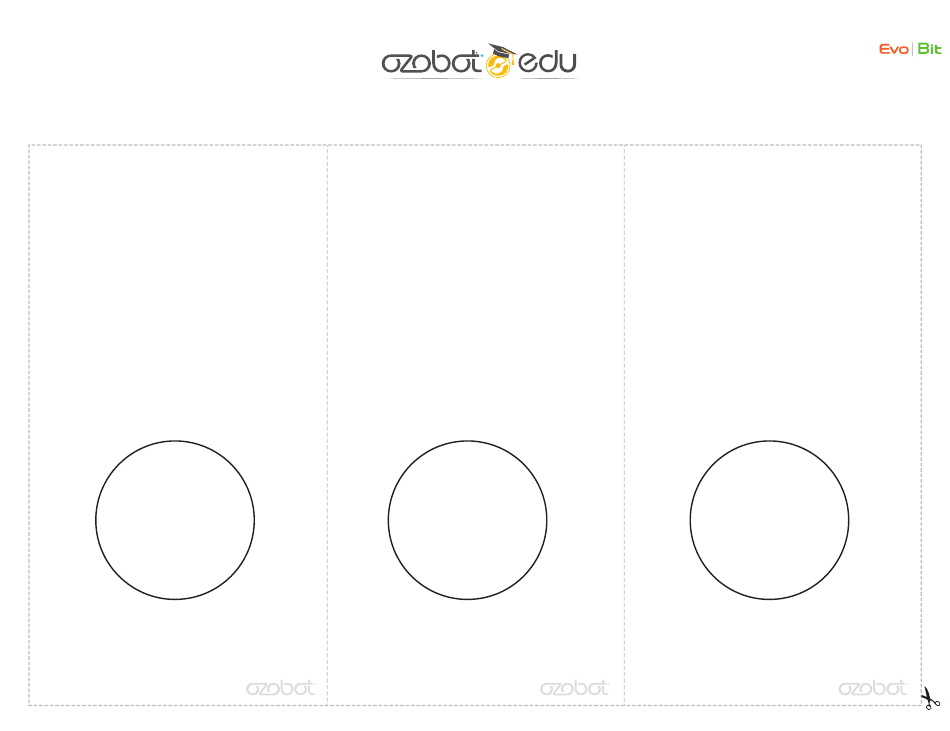

These calibration dots can be re-used for play on
paper with Evo or Bit. Cut along the dotted lines
and fill circles in with black marker.
Note: Do not laminate as your bot cannot
properly calibrate on a laminated surface.
CALIBRATION DOT
How to Calibrate:
1. Make sure bot is powered off, then place it in
the black circle.
2. Press & hold bot's Power Button for 2-4 sec.
until top light blinks white. Then, release
Power Button.
3. Your bot blinks green when calibrated. If bot
blinks red, start over from step 1. Evo also
spins during calibration.
4. Press the Power Button to turn Bit back on.
Evo powers on automatically after calibrating.
Fill in with
black marker
© Ozobot Inc.
CALIBRATION DOT
TEMPLATES
CALIBRATION DOT
How to Calibrate:
1. Make sure bot is powered off, then place it in
the black circle.
2. Press & hold bot's Power Button for 2-4 sec.
until top light blinks white. Then, release
Power Button.
3. Your bot blinks green when calibrated. If bot
blinks red, start over from step 1. Evo also
spins during calibration.
4. Press the Power Button to turn Bit back on.
Evo powers on automatically after calibrating.
Fill in with
black marker
ozobot.com
CALIBRATION DOT
How to Calibrate:
1. Make sure bot is powered off, then place it in
the black circle.
2. Press & hold bot's Power Button for 2-4 sec.
until top light blinks white. Then, release
Power Button.
3. Your bot blinks green when calibrated. If bot
blinks red, start over from step 1. Evo also
spins during calibration.
4. Press the Power Button to turn Bit back on.
Evo powers on automatically after calibrating.
Fill in with
black marker
