Add tensioner assembly

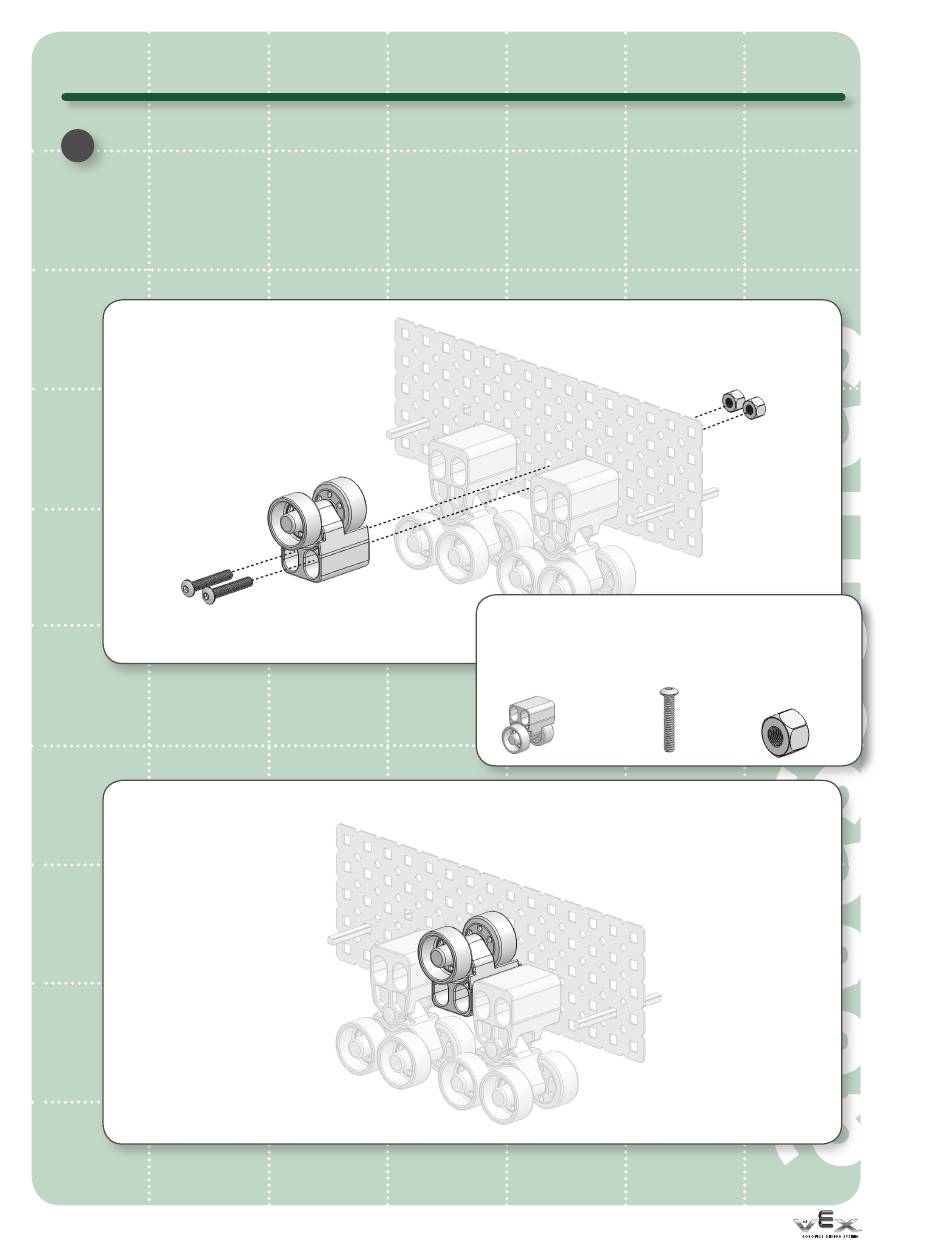

Add one tensioner assembly to the support structure as shown.
Note that the tensioner should be flush with the right bogey
wheel assembly. Secure the tensioner to the support structure using
two 8-32x1" screws and two keps nuts. The oblong holes in the
tensioner assembly will allow you to adjust the tension of the tracks
once you've finished assembling the system.
Your assembly should now look like this:
tank tread kit • 4
continued
Inventor's Guide insert
Parts needed in this step:
8-32 x 1"
single bogey
screw
wheel assembly
(tensioner)
x 1
keps nut
x 2 x 2
