2.5 STEP 4: Sensors Data

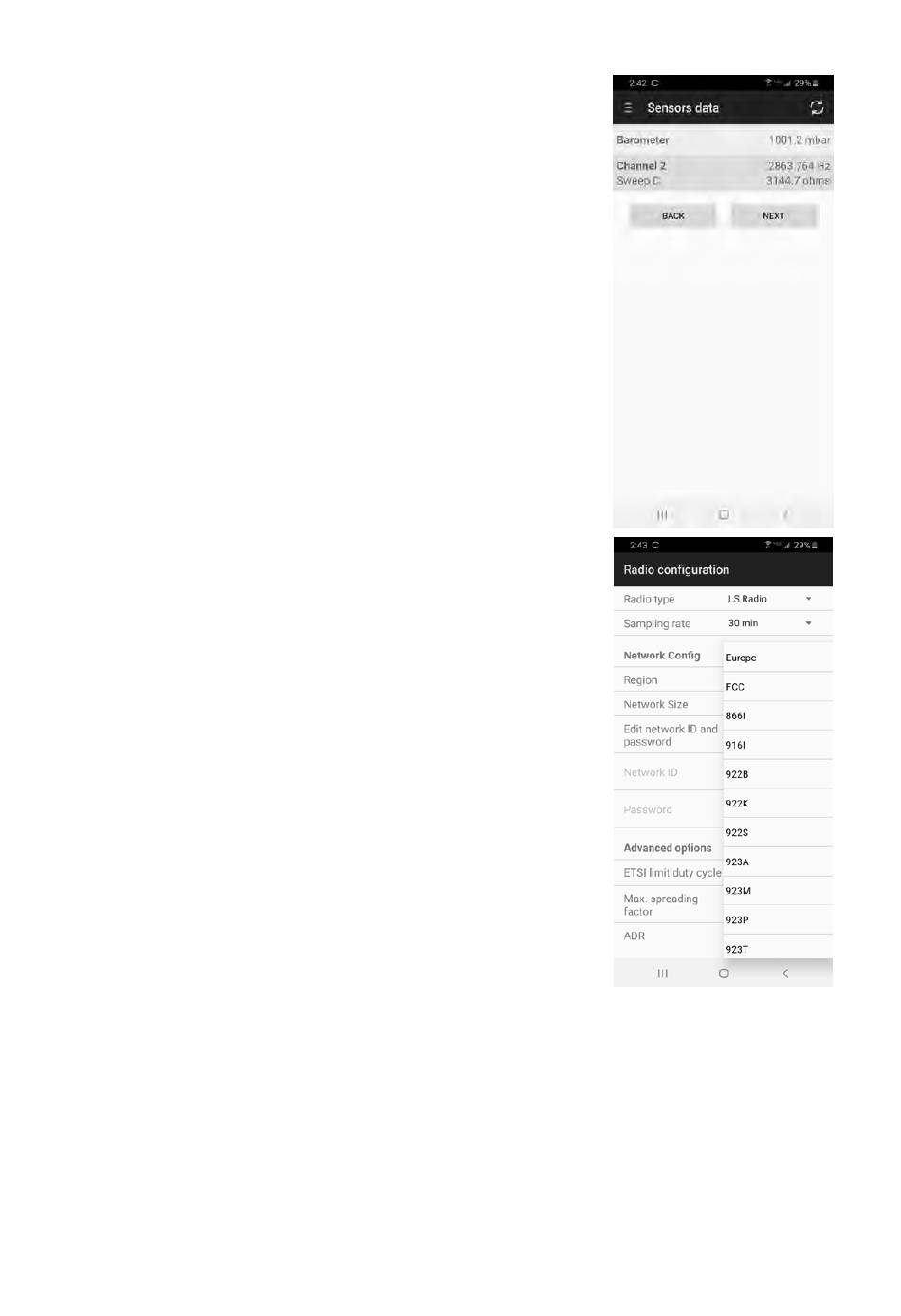

The "Sensors data" screen displays the current readings of sensors
connected to the datalogger. Here, you can verify that the sensor is
connected correctly by checking if the reading is consistent.
The node takes a new reading every time the refresh button is pressed.
Bear in mind that taking a reading might take some time,
particularly when reading RS485 chains of digital sensors.

2.6 STEP 5: Radio configuration

In this step, you select the radio settings.
Enable "Radio" and select the correct region of radio frequency.
For successful communication, the same region must be applied in the
gateway radio configuration.
Enter the network ID and password provided in the ​ G ateway
Information Sheet ​ . All messages are encrypted with the network
password.
Advanced Options: Default configuration parameters should be suitable
for the majority of networks.
See the Radio specification chapter of the Gateway User Guide or ​
Annex 01: GTecLink Gateway Radio Specifications v1.8​ for more
details on radio models and settings.
Bear in mind that the GTecLink app saves and maintains Radio settings
to simplify configuration of all the nodes in a network. To modify these settings, Radio must be enabled
again.
