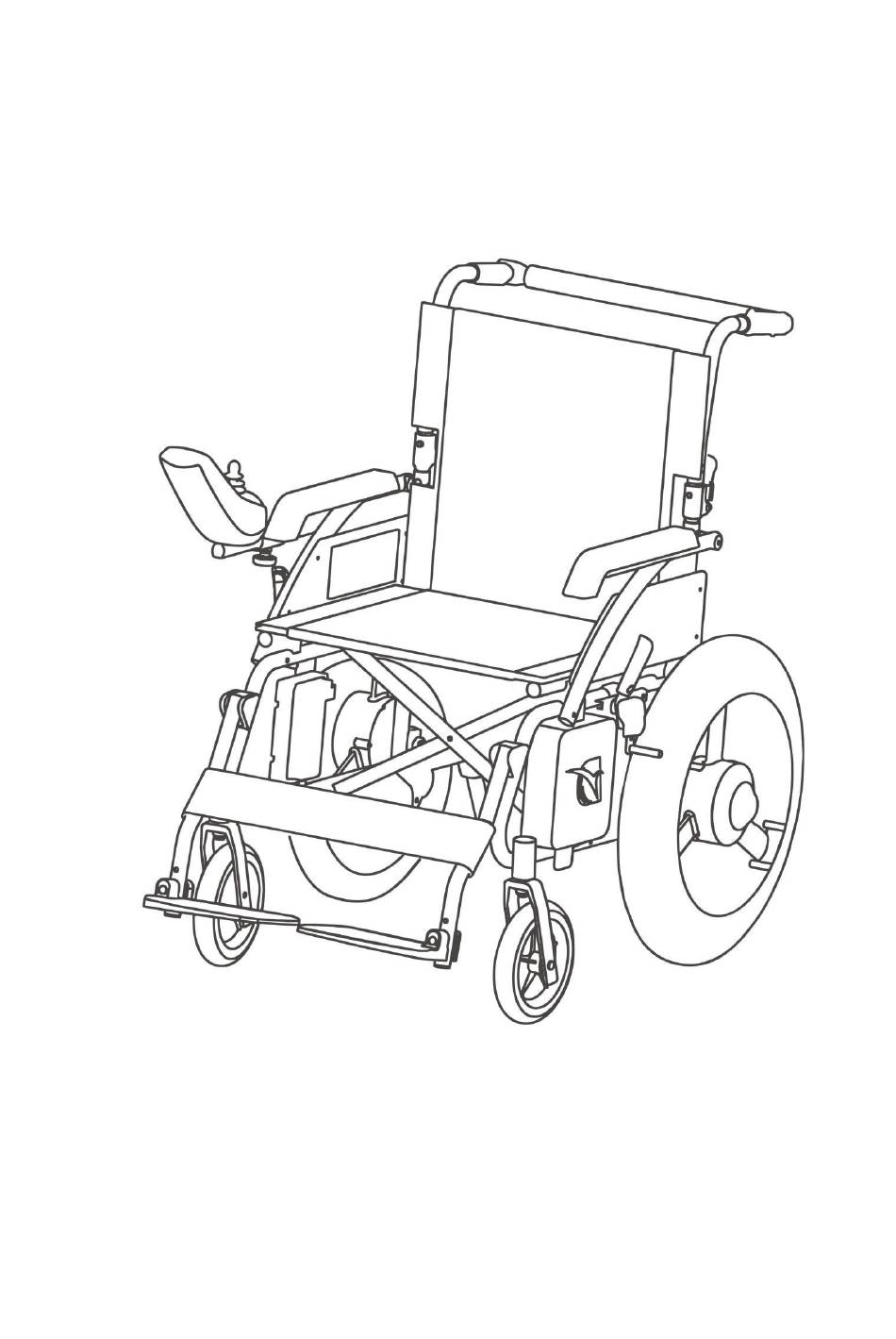

- Page 1 Electric Wheelchair User Manual DY01112 Version：A/0 - 1 -...
- Page 2 Safety Guide ●.For correctly using the wheelchair, please be sure to read carefully the note of Safety Guide . ●.If cooperation won’t to follow this instruction, the product may be damaged,the people may be injured, or even be life-threatening. ●.If it is necessary for the patient or his family member to use the wheelchair directly, the family member should read and understand the introduction well before using.
- Page 3 10.When lifting a wheelchair, please grasp the fixed connection of the wheelchair, instead of grasping the moving parts, such as foot brackets. 11.When parking in the course of driving, just release the controller handle and reset, the electric wheelchair will automatically brake. When parking on the slope, the electric wheelchair can automatically brake on the slope.
- Page 4 Content Ⅰ.Summary Ⅱ.Scope of application Ⅲ.Product performance, security feature,main structure and composition Ⅰ).Main structural composition and specification parameter Ⅱ).Function summary Ⅲ).Operation of wheelchair Ⅳ.Instruction,announcement Ⅴ.Product maintenance Ⅵ.Interpretation of the patterning,symbol,abbreviation,etc. Used in the labeling of medical device Ⅶ.Error code description Ⅷ.Circuit diagram - 4 -...
- Page 5 Ⅰ.Summary This manual is applicable to electric wheelchairs, including safety precautions, function instructions and maintenance information of various models. The patterning in this manual is only for the users' reference. Please refer to the real object for actual use. Ⅱ.Scope of application This product is used for the elderly,the disabled and other group with weak ability to walk (except for the group that can not judge the walking environment),especially suitable for indoor, courtyard,...
- Page 6 *The graphics in this manual is only for the users' reference . Please refer to the real object for actual use. Ⅱ). Function Summary The wheelchair has both safety and convenience in design. Its main functions are listed as follows: 1.Folding aluminium alloy frame;...
- Page 7 2.Folding 1.Folding the footplate upside 2.Lift the cushion from the middle position 3.Controller Installation The controller is installed on the right by default (if you need to adjust the installation position, you need to remove the fixing screws of the holder first, and then switch to the left for installation). First unscrew the knob, insert the fixing rod into the slot of the fixed bracket, move the fixing rod back and forth to the appropriate position as needed, then screw in the knob and tighten it, then connect the control line connector and control box on the controller.
- Page 8 Figure 4 Remove the screw below the left handrail as shown in Figure 5-1 (left) (the screw is the front one of the left handrail), and reinstall the screw to the position below the right handrail corresponding to the position in the left side. Re-tighten the screws by replacing the removed the controller holder with the screw hole under the left armrest.
- Page 9 1-Joystick 9-Play/pause key 2-Power Switch 10-Bluetooth key 3-Ralte-limiting less 11-Estimated remaining mileage 4-Rate-limiting plus 12-Real-time speed 5-Volume key plus 13-Relaxation icon 6-FM 14-Electronic capacity 7-Volume key less 15-Grear 8-Horn key ●Joystick: as figure 1, it is available for controlling and speed with the joystick. ●Power Switch: as figure 2, turn on the power switch , the wheelchair is power on when hear a”Drop”...
- Page 10 3.Intelligent Brake when Lower Power 1)The wheelchair is available with two driving modes, electric and manual. When the electric wheelchair is turned on, the electric mode is automatically activated; in the off state, it is the manual mode. When the user stops, please tighten the left and right rear brakes. 2)During the trip, if the power is less than 10%, it will automatically switch to the speed limit (speed drop below 1.5km/h).
- Page 11 When get up from a wheelchair, When getting on and off the wheelchair, don't stand feet directly on attention to fix the rear wheel brake first the footplates to avoid overturning. prevent the rear sliding,then lift the footplate to ensure safety Ⅴ.Product Maintaince 1.Preventability Checking ...
- Page 12 2. Conditions and methods for product storage and transportation Stored in a well ventilated room, the ambient temperature is -10 ° C ~ 45 ° C, the relative humidity is not more than 93%, no harmful gases, flammable, explosive substances and corrosive gases are allowed.
- Page 13 - 13 -...
