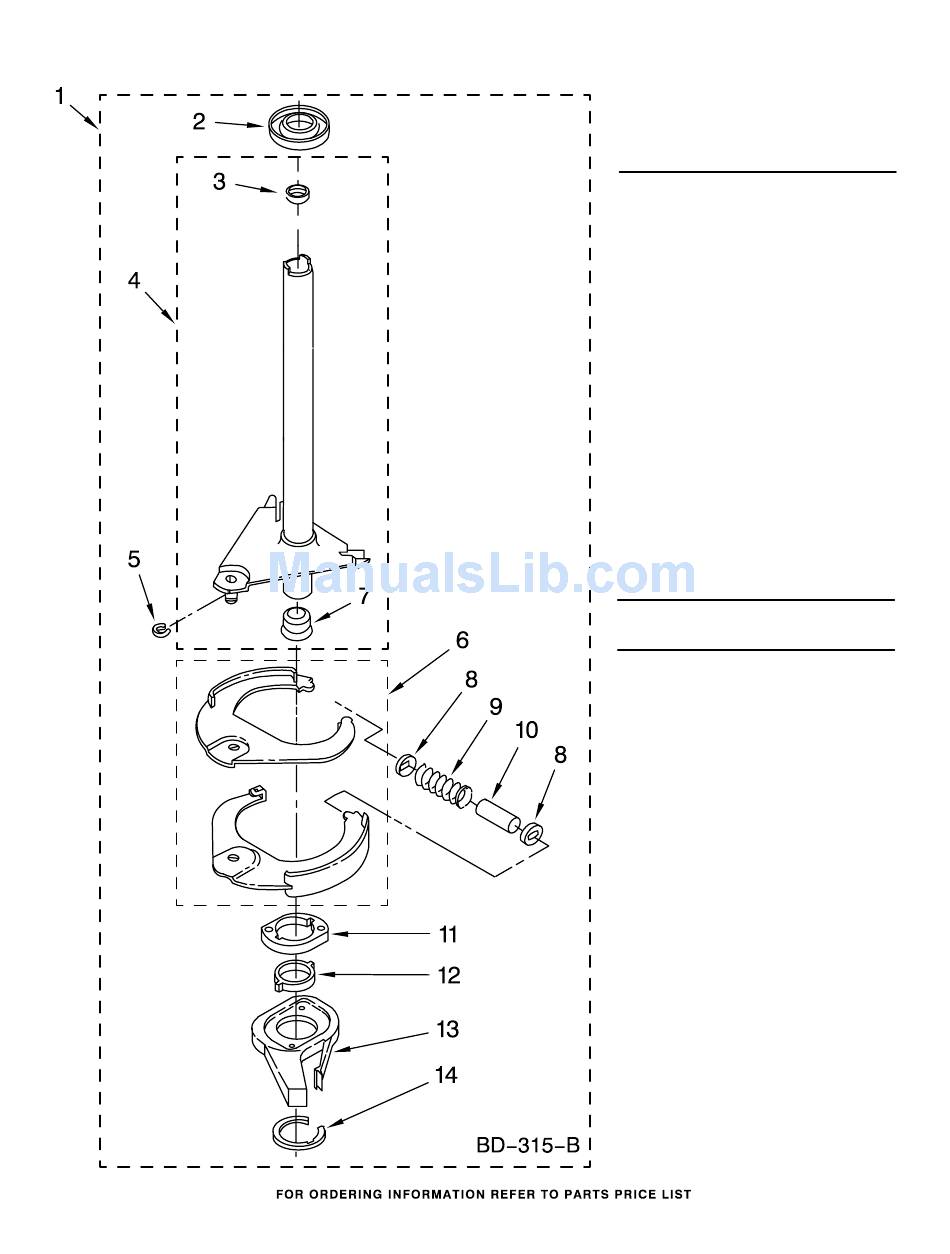

BRAKE AND DRIVE TUBE PARTS

For Model: 3RGSC9400RL0
(Pewter)
Illus. Part
No.
1
2
3
4
5
6
7
8 3353956
9
10 3355360
11
12
13
14
11
No. DESCRIPTION
388952 Brake And Drive
Tube (Complete)
62658 Ring, Thrust
356427 Seal, Drive Tube
64027 Tube, Basket
Drive (Includes
Illus. 3, 4, 5 & 9)
64035 Ring, Retaining
64232 Shoe, Brake (2)
62703 "T" Bearing,
Spin Tube
Cap, Brake
Spring (2)
387806 Spring, Brake
Sleeve, Brake
Spring
661516 Cam, Brake
Release
63022 Sleeve, Cam
64194 Driver, Brake
Cam
90368 Ring, Retaining
FOLLOWING PARTS
NOT ILLUSTRATED
285208 Lubricant
(Use Only In
Brake Shoe
Assembly On
Roller & Pin)
