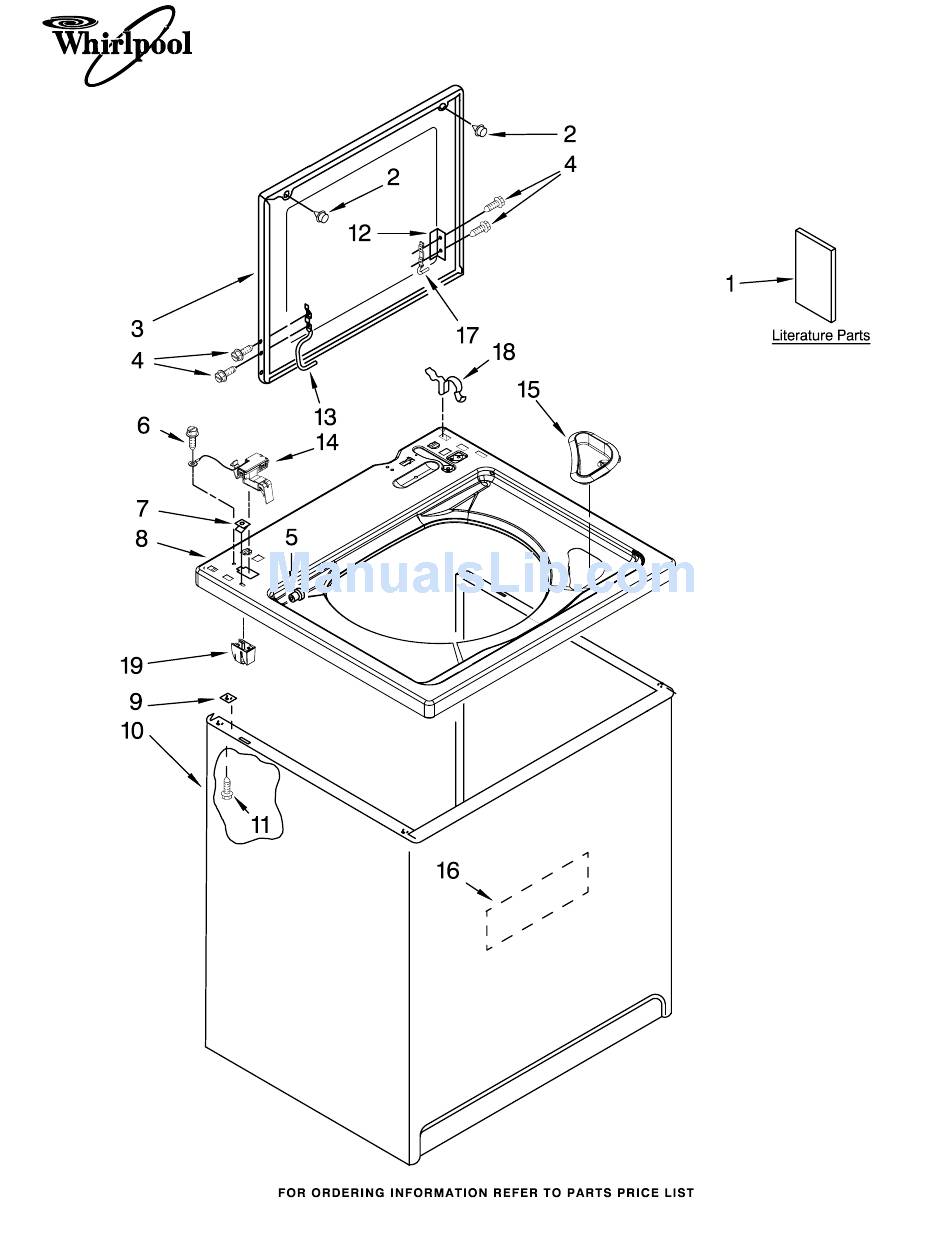

Page 1: Top And Cabinet Parts
TOP AND CABINET PARTS AUTOMATIC WASHER For Model: 3RLSQ8033SW2 (White/Grey) 6−09 Litho in U.S.A. (drd)(bay) Part No. W10280205 Rev. A... - Page 2 TOP AND CABINET PARTS For Model: 3RLSQ8033SW2 (White/Grey) Illus. Part DESCRIPTION Literature Parts W10131577 Installation Instructions W10131573 Use & Care Guide W10215726 Wiring Diagram W10131548 Installation & User Guide 9724509 Bumper, Lid (2) 3 W10171315 Lid 4 W10119828 Screw, Lid Hinge...
-
Page 3: Controls And Rear Panel Parts
CONTROLS AND REAR PANEL PARTS For Model: 3RLSQ8033SW2 (White/Grey) W10280205... - Page 4 (1−1/16 x 5/8) 11 W10080280 Screw, 8−18 x 3/8 12 W10213199 Switch, Water Level 8544893 Bracket, Control 14 W10111552 Cord, Power 8559337 Strain Relief, Power Cord For Model: 3RLSQ8033SW2 (White/Grey) Illus. Part DESCRIPTION 8541780 Cap, End (L.H.) 17 W10080580 Screw, Ground...
-
Page 5: Agitator, Basket And Tub Parts
AGITATOR, BASKET AND TUB PARTS For Model: 3RLSQ8033SW2 (White/Grey) W10280205... - Page 6 AGITATOR, BASKET AND TUB PARTS For Model: 3RLSQ8033SW2 Illus. Part 8575076 Dispenser 2 W10003790 Screw & Washer 3363003 Clothes Mover 3951632 Agitator 8528150 Tub Ring & Gasket 3976308 Gasket, Tub Ring 3354845 Clip, Agitator 3952374 Bearing, Driven 3951682 Cam, Driven...
-
Page 7: Brake, Clutch, Gearcase, Motor And Pump Parts
BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS W10280205 For Model: 3RLSQ8033SW2 (White/Grey) Illus. Part DESCRIPTION 1 W10117003 Brake & Drive Tube (Complete) (Refer to Page 11 For Further Breakdown) 63292 Washer, Spin Tube Thrust 3 W10080230 Ring, Spin Tube Support... -
Page 8: Machine Base Parts
MACHINE BASE PARTS For Model: 3RLSQ8033SW2 (White/Grey) Illus. Part DESCRIPTION 1 W10080750 Screw, Bracket Mounting (10−32 x 5/8) 64067 Bracket, Spring Outer (2) 63907 Spring Suspension,(3) 4 W10117005 Support & Brake, 64065 Bracket, Spring Outer (L.F.) 63466 Link, Leveling Mechanism (2) -
Page 9: Wiring Harness Parts
WIRING HARNESS PARTS For Model: 3RLSQ8033SW2 (White/Grey) W10280205... - Page 10 (Half−Harness) 3390496 Clip, Harness 389379 Retainer, Harness Timer, Block Disconnect 3948614 Natural 352089 Black FOR COMPLETE WIRING HARNESS REFER TO CONTROL AND REAR PANEL PARTS PAGE For Model: 3RLSQ8033SW2 (White/Grey) Illus. Part DESCRIPTION 62889 Receptacle, Terminal (3−Way) 353424 Plug, Terminal (3−Way)
-
Page 11: Brake And Drive Tube Parts
BRAKE AND DRIVE TUBE PARTS W10280205 For Model: 3RLSQ8033SW2 (White/Grey) Illus. Part DESCRIPTION 1 W10117003 Brake And Drive Tube (Complete) 62658 Ring, Thrust 356427 Seal, Drive Tube 4 W10117001 Tube, Basket Drive 5 W10083190 Ring, Retaining 6 W10116995 Shoe, Brake (2) 8546462 "T"... -
Page 12: Gearcase Parts
GEARCASE PARTS For Model: 3RLSQ8033SW2 (White/Grey) GC−221 Illus. Part DESCRIPTION 1 W10116916 Gearcase (Complete) 285202 Cover, Gearcase 3349985 Seal, Gearcase Cover 285195 Sealer, Gasket (.20 Fl. Oz.) (6 ml) 63320 Pinion, Spin (Includes Item 25) 356427 Seal, Spin Pinion 7 W10116913 Shaft, Agitator... -
Page 13: Optional Parts (Not Included)
OPTIONAL PARTS (NOT INCLUDED) W10280205 For Model: 3RLSQ8033SW2 (White/Grey) Illus. Part DESCRIPTION PAINT, TOUCH−UP (1/2oz.) 72017 White PAINT, PRESSURIZED SPRAY (12 oz.) 350938 Primer, Gray 350930 White PAINT, BULK (1 qt.) 799344 White (Uncut) 350572 Oil, Gearcase (16 Oz.) LUBRICANT...
