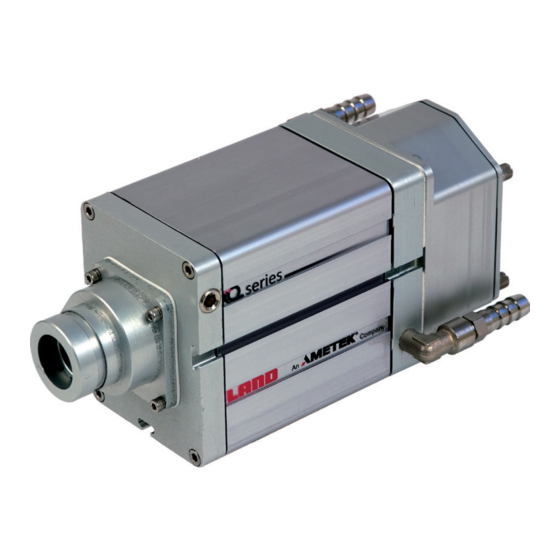

- Page 1 series Thermometer User Guide Issue 6 30 April 2018 Publication Nº 806609 Language: English © Land Instruments International, 2011 - 2018...
- Page 2 IMPORTANT INFORMATION - PLEASE READ Health and Safety Information Read all of the instructions in this booklet - including all the WARNINGS and CAUTIONS - before using this product. If there is any instruction which you do not understand, DO NOT USE THE PRODUCT.
- Page 3 Web: www.ametek-land.com For further details on all AMETEK Land offices, distributors and representatives, please visit our website. Return of Damaged Goods IMPORTANT If any item has been damaged in transit, this should be reported to the carrier and to the supplier immediately.
- Page 4 Thermometer User Guide series...
-
Page 5: Table Of Contents
User Guide Thermometer Contents Introduction General Introduction About IQ Series Thermometers Nomenclature Specifications Hardware Configuration Thermometer variants Configuration Laser Alignment Instrument Setup and Configuration IQ Series Configurator Software Thermometer Installation Basic Variant Thermometers Standard Variant Thermometers Enhanced and Premium Variant Thermometers... - Page 6 Thermometer User Guide series...
-
Page 7: Introduction
Series thermometer. It is important to check all equipment with which you have been supplied, and read all the literature provided with the Land IQ Series thermometer before using the thermometer for the first time. Additionally, keep all supplied literature readily available, for reference when the equipment is in general use. -
Page 8: Nomenclature
Thermometer User Guide 1.3 Nomenclature The Instrument detail label is on the rear face of the IQ Series thermometer. The instrument Type specifies the thermometer variant and variant options. The instrument Serial Number is a unique number incorporating the manufacture date code. -
Page 9: Specifications
User Guide Thermometer Specifications Model Operating range: 1022 to 3182°F 482 to 2372°F 392 to 2012°F 1292 to 3182°F 550 to 1750°C 250 to 1100°C 200 to 1100°C 700 to 1750°C Specified range: 1112 to 3182°F 572 to 2372°F 482 to 2012°F 1382 to 3182°F 600 to 1750°C 300 to 1300°C... - Page 10 Thermometer User Guide Notes for IQR Thermometers • IQR ratio thermometers have an internal heater that must be warmed up before valid temperature readings can be produced. This can take typically 2 to 3 minutes at room temperature, followed by a further stabilisation time of 2 to 3 minutes before a fully reliable reading is available.
-
Page 11: Hardware Configuration
User Guide Thermometer Hardware Configuration IQ Series thermometers offer simple analogue ‘plug & play’ and digital methods of communication. The features available on your IQ series thermometer will depend upon what feature set has been supplied. 3.1 Thermometer variants 3.1.1 Basic Variant Features IQ x B variant thermometers are specially designed to offer the maximum in simplicity and economy. -
Page 12: Configuration
RS485 communications converter, in relation to this method of connection. Ask for a quote for Part Nº 806730. These instructions detail how to install and use the IQ Series Windows Configurator Software. This allows a IQ Series thermometer to be configured from any laptop or PC having an RS485 connection. - Page 13 RS485 port NOTE The 1 to 1 (Address 0) mode must not be used if more than one iQ series thermometer is connected to the RS485 port. The 1 to 1 mode enables communication with the thermometer, regardless of the user-settable thermometer address.
-
Page 14: Laser Alignment
DO NOT attempt to disassemble the laser unit or any of its mounting components. The S, E and P variant IQ Series thermometers are fitted with a laser alignment utility, which can be used to align the thermometer accurately on the required target. - Page 15 User Guide Thermometer There are four methods of activating the laser alignment utility in the IQ Series thermometer: • the laser switch on the rear face of the thermometer (See Fig. 4-1); • a direct connection between pin Com and LSRin on the electrical connector on the rear face of the thermometer.
-
Page 16: Instrument Setup And Configuration
• Address - the configurator address (1 to 254), default set to 1 • 1 to 1 (Address 0) - used when only one IQ Series thermometer is connected to the RS485 port Note The 1 to 1 (Address 0) mode must not be used if more than one SOLOnet thermometer is connected to the RS485 port. - Page 17 User Guide Thermometer The 1 to 1 mode enables communication with the thermometer, regardless of the unreasonable thermometer address. Where multiple thermometers are to be connected to a shared RS485 bus, the instruments should first be configured separately and given a unique address, so that each thermometer on the shared bus will have a separate address.
- Page 18 Thermometer User Guide Fig. 5-1 Configurator with IQ1, IQ2 or IQ5 thermometer connected IMPORTANT: Please note radiation safety warning, where this symbol appears LASER RADIATION DO NOT STARE INTO BEAM CLASS 2 LASER PRODUCT 1mW MAX OUTPUT AT 650nm IEC 60825-1:2007 Page 12 series...
- Page 19 User Guide Thermometer Fig. 5-2 Configurator with IQR thermometer connected IMPORTANT: Please note radiation safety warning, where this symbol appears LASER RADIATION DO NOT STARE INTO BEAM CLASS 2 LASER PRODUCT 1mW MAX OUTPUT AT 650nm IEC 60825-1:2007 Page 13 series...
- Page 20 Save As - saves the current configuration file with a new file name Exit - closes the IQ Series Configurator Thermometer Apply - applies any changes made to the thermometer Read - reads and displays the...
- Page 21 User Guide Thermometer Item Description User set? Function Thermometer Instrument serial number Address The RS485 address of the thermometer. To change the address, type the required address in the text box, then click on Apply (Item 13). Note that in order to maintain communication between the configurator and the thermometer, either the configurator address...
- Page 22 Thermometer User Guide Item Description User set? Function Output Uses an ‘AZAR’ system (adjustable zero, adjustable range). Allows the user to set the current output to operate over a reduced span within the operating range of the instrument. Maximum Sets the upper limit of the temperature Temperature span Sets the lower limit of the temperature...
- Page 23 User Guide Thermometer Item Description User set? Function Alarms Two configurable alarm functions. Alarm 1 and Alarm 2 - each alarm has the following options: AL1 Level (°) Set alarm 1 temperature level Mode - Low Alarm: indicates when the process temperature falls below the set specified limit High Alarm: indicates when the...
- Page 24 Thermometer User Guide Item Description User set? Function Read/Apply Apply - applies any changes made to the thermometer Read - reads and displays the parameters set in the thermometer Obscuration Up Scale - drives the output upscale if Drive Mode (used the target is excessively obscured.
-
Page 25: Thermometer Installation
User Guide Thermometer Thermometer Installation A key design feature of IQ Series thermometers is the flexibility of data access and the ease of instrument installation. Every IQ Series thermometer (regardless of feature variant supplied) is configured for plug and play operation straight out of the box. -
Page 26: Standard Variant Thermometers
IQ1 S – 0.82 • IQ2 S – 0.86 • IQ5 S – 0.97 • IQR S – 1.00. Fig. 6-2 IQ Series Thermometer Standard variant electrical connections Fig. 6-3 IQ Series Thermometer Enhanced and Premium variant electrical connections Page 20 series... -
Page 27: Enhanced And Premium Variant Thermometers
Four terminals are provided for the thermometer onboard RS485 communications. Connection to these terminals by a PC with an RS485 port enables use of the bundled IQ series configuration software. From the software interface, many more configuration parameters are available. Refer Section 5.1 of this User Guide, or to the IQ Windows Configuration Software... -
Page 28: Using The Brainboxes Usb/Rs485 Convertor
Thermometer User Guide 6.3 Using the Brainboxes USB/RS485 convertor For configuring the IQ digital models, you can use an RS485 connection and the IQ setup software. In 4-wire transmission (full duplex RS485), 4 wires run from TXD or RXD on the master to the opposite (TXD or RXD) on the slave(s). -
Page 29: Time Functions
User Guide Thermometer Time Functions Time functions are available when using Enhanced and Premium feature variant thermometers only. 7.1 Averager Fast averager response speed Slow averager response speed Time Fig. 7-1 Graphical representation of the Averager time function The Averager time function can be used to ‘smooth’ the temperature output signal in relation to the temperature input. -
Page 30: Peak Picker
Thermometer User Guide 7.2 Peak Picker The Peak Picker function can be used to monitor the highest temperature measured by the thermometer. This feature is useful especially for moving targets and/or where the target is obscured partially by moving machinery. The Peak Picker time function utilises the following features: Mode - In ‘Reset’... -
Page 31: Track And Hold
User Guide Thermometer 7.3 Track and Hold The Track and Hold time function is useful especially for measuring intermittent processes e.g. items on a conveyor belt. The presence of a ’hot’ object can be used to activate the ‘Track’ function, which causes the output to display the temperature of the object. - Page 32 Thermometer User Guide Remote switch CMDin Peak Picker Track & Hold Switch open Peak Pick Track Switch closed Reset Hold Note Remote switch can be replicated by voltage Vin. Where: >+3.0V = Switch open <+1.5V = Switch closed Fig. 7-4 ‘CMD’ (Command) input control via a remote switch CMDin Potential-free contacts...
-
Page 33: Emissivity
User Guide Thermometer Emissivity All IQ Series thermometers are factory configured for remote emissivity control using a 0-20mA input across the EMin terminals. Use the table below to calculate the input current required for your desired emissivity/non greyness setting. Values in between those quoted in the table can be found by interpolation. - Page 34 Enhanced and Premium variant thermometers also have the capability to set the emissivity/non greyness digitally. This is done using either the bundled IQ series configuration software or using an appropriate RS485 enabled device sending the thermometer the correct digital messages (see Appendix A –...
-
Page 35: Refractories
User Guide Thermometer 8.1 Refractories Material IQ Series variant Alumina 0.30 0.30 Brick 0.80 0.80 White refractory 0.30 0.35 Silica 0.55 0.60 Sillimanite 0.60 0.60 Ceramics 0.40 0.50 Magnesite Fig. 8-1 Typical emissivity values for Refractories 8.2 Alloys Material IQ Series variant Brass 0.20... -
Page 36: Metals
Thermometer User Guide 8.4 Metals Material IQ Series variant Aluminium 0.13 0.09 Oxidised 0.40 0.40 Chromium 0.43 0.34 Oxidised 0.75 0.80 Cobalt 0.32 0.28 Oxidised 0.70 0.65 Copper 0.06 0.05 Oxidised 0.85 0.85 Gold 0.05 0.02 Iron & Steel 0.35 0.30... -
Page 37: Maintenance, Servicing & Calibration
User Guide Thermometer Maintenance, Servicing & Calibration IQ Series thermometers do not have any user serviceable parts and therefore require minimal maintenance to ensure trouble-free operation. 9.1 Maintenance Although IQ Series thermometers require no regular maintenance programme, it is essential that they are kept clean and free from contaminants at all times. - Page 38 Thermometer User Guide Page 32 series...
- Page 39 This protocol applies to Enhanced and Premium variant thermometers only. This is a multi-drop, 4-wire, RS485 serial protocol. It requires the IQ Series thermometer address to be set from 1 to 254. Addresses 0 and 255 always get a response, therefore in multi-drop applications these must not be used.
- Page 40 Thermometer User Guide e.g. With EKO set to 1 (message sent from user to set emissivity to 0.999) {STX} 0x01 address ‘S’ ‘A’ ‘E’ ‘M’ ‘S’ ‘9’ ‘9’ ‘9’ {ETX} The reply from the unit is: {STX} 0x01 address ‘E’ ‘M’...
- Page 41 User Guide Thermometer ADDR Parameter value being requested (ASCII) ADDR Value of requested parameter (ASCII) Fig. A-1 RS485 ‘Read data’ protocol ADDR Parameter value being modified (ASCII) SPACE New parameter value (ASCII) SPACE Fig. A-2 RS485 ‘Write data’ protocol Page 35 series...
- Page 42 Thermometer User Guide User Accessible Commands Changing parameters causes the internal processor to set the new parameter value on its next task cycle. The new value is held in volatile system RAM and will be lost if the internal processor is switched off. A command is provided to commit changes of configuration parameters to system non volatile memory.
- Page 43 User Guide Thermometer Function READ Range Resolution Default Comments response example example 0001 SAAVR Averager 0-15 0001 Intervals: response 0000 0s time 0001 50ms 0002 100ms 0003 150ms 0004 250ms 0005 500ms 0006 1s 0007 2s 0008 4s 0009 8s 0010 16s 0011 32s 0012 64s...
- Page 44 Thermometer User Guide Page 38 series...
- Page 45 User Guide Thermometer User Accessible Commands (continued) The use of text-based flags is designed specifically for use with a Windows- based configuration tool. The flags are also compatible with terminal programs. This is used to transfer the data directly into sequential files, under Windows, for subsequent manipulation.
- Page 46 Thermometer User Guide RAIFO 3 Contact report - text strings <x chars [start] [start] [Contact information] [Contact information] Land Land Instruments International Address Dronfield S18 1DJ, UK Tel: +44 (0)1246 417691 [end] [end] Function READ Range Resolution Default Comments response example Thermo- 01: IQ_1...
- Page 47 User Guide Thermometer Function READ Range Resolution Default Comments response example 0000 SALSR 1 0, 1 Laser 1 = Laser on control Auto turn off Over- 0000 0, 1 0 = In range range 1 = Over-range 0010 SAPOF Ppick off 0-100 100 steps of 0.1 delay...
- Page 48 Thermometer User Guide Function READ Range Resolution Default Comments response example 0000 Under- 0, 1 0 = in range range 1 = under-range Bobbin Ratio bobbin temp temp °C IRT min IRTmin IRTmin IRT range fixed temp IRT max 1700 IRTmax IRTmax IRT range fixed...
- Page 49 User Guide Thermometer Appendix B User Calibration - IQ Series Enhanced and Premium Variant Thermometers Only CAUTION If the user calibration is adjusted away from its default value of 1000, the factory calibration will be no longer valid. However, returning the value to 1000 will restore the factory calibration.
- Page 50 Thermometer User Guide Determine what temperature correction you would like to apply – ∆T (ensure that you start with user calibration = 1000) Look up the thermometer %/C sensitivity (S) in the appropriate table – linearly interpolating between values if required. Calculate the required User_Calibration: User_Calibration = 1000 + Θ...
- Page 51 User Guide Thermometer %/C tables for IQ Series Thermometers %/C for IQ Series Thermometers Temperature 1.429 3.29 1.169 2.74 0.974 2.32 0.824 1.99 0.706 1.72 0.612 1.50 0.535 2.22 1.33 0.472 1.97 1.18 0.420 1.76 1.06 0.375 1.59 0.95 0.338 0.100...
- Page 52 Thermometer User Guide Page 46 series...
- Page 53 PRODUCT WARRANTY Thank you for purchasing your new product from Land Instruments International. This Land manufacturer’s ‘back-to-base’ warranty covers product malfunctions arising from defects in design or manufacture. The warranty period commences on the instrument despatch date from the Land Instruments International Ltd.
- Page 54 PRODUCT WARRANTY EXCLUSIONS FROM WARRANTY It should be noted that costs associated with calibration checks which may be requested during the warranty period are not covered within the warranty. Land reserve the right to charge for service/calibration checks undertaken during the warranty period if the cause is deemed to fall outside the terms of the warranty.
