Tyco Electronics AMP NETCONNECT AMPTRAC 1933443-1 Instruction Sheet

Push Tab
(2 Places)
Tray
(Shown Out of Cover)
1. INTRODUCTION
Patch Panel Drawer 1933443–1 is used for housing
singlemode and multimode fiber optic connections.
The drawer fits into a standard 483 mm [19 in.]
Electronic Industries Alliance (EIA) rack or equipment
cabinet. Read these instructions thoroughly before
starting installation.
Dimensions in this instruction sheet are in
NOTE
millimeters [with inches in brackets]. Figures and
i illustrations are for reference only and are not
drawn to scale.
To obtain information on AMP NETCONNECT
products, call PRODUCT INFORMATION at the
number at the bottom of this page, or visit the
AMP NETCONNECT website at
www.ampnetconnect.com.
Reasons for reissue of this instruction sheet are
provided in Section 5, REVISION SUMMARY.
2. DESCRIPTION
(Figure 1)
Each drawer consists of a cover and a tray. The cover
features two mounting brackets (with four 6–32
screws and four washers). Included are four 12–24
and four 10–32 cross–recessed screws for mounting
the drawer to the rack or equipment cabinet.
AMP NETCONNECT logo is a trademark of Tyco Electronics.
E
2008 Tyco Electronics Corporation, Harrisburg, PA
All International Rights Reserved
TE logo and Tyco Electronics are trademarks.
*Trademark. Other products, logos, and company names used are the property of their respective owners.
AMP NETCONNECT* AMPTRAC
1U 24-Port Patch Panel Drawer
1933443-1
Cable Exit
Opening
Cable Tie-Down
Bar (4 Places)

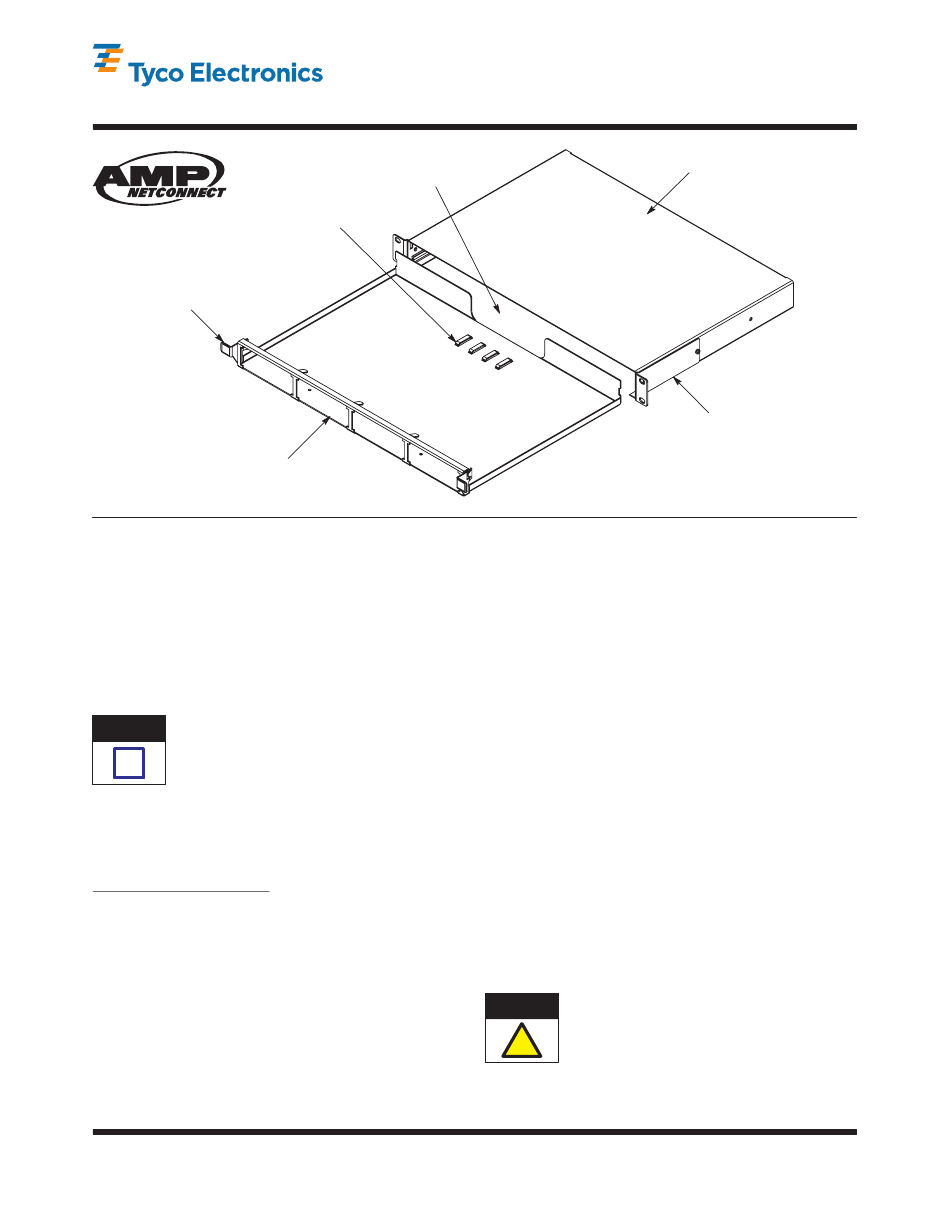

Figure 1
TOOLING ASSISTANCE CENTER 1-800-722-1111
PRODUCT INFORMATION 1-800-522-6752
The tray features two push tabs, four housing
openings, four cable tie–down bars, and a cable exit
opening. The bars are used for securing up to 24
pre–terminated cable to the tray (three releasable
wire ties are included for this use). When the tray is
closed, the push tabs "click" onto the cover to secure
the tray to the cover.
Also included is a cable management kit (containing
eight network saddles and two spiders). The kit is
used for facilitating cable routing within the tray.
The drawer accepts four 6–port front loadable
interface housings or cassettes (available separately).
3. INSTALLATION
3.1. Open the Tray
Simultaneously push both push tabs slightly inward,
and slide the tray open. To remove the tray from the
cover, slide the tray open until it stops, then tilt the
tray slightly up and out of the cover.
3.2. Mount the Enclosure
ALWAYS use safe lifting techniques. NEVER lift
CAUTION
more than you can manage comfortably. Lifting
guidelines are available from the Occupational
!
Safety and Health Administration (OSHA).
1. Remove the tray from the cover, and set aside.
This controlled document is subject to change.
For latest revision and Regional Customer Service,
visit our website at
Instruction Sheet
408-8808
11 SEP 08 Rev C
Cover
Mounting Bracket
(2 Places, Positioned for
Front Mounting)
1
of 4
www.tycoelectronics.com
LOC B
