Installation And Mounting (C3900 Speaker); Replacement Parts And Accessories - Code 3 C3100 Installation And Operation Instructions

Installation and Mounting (C3900 Speaker):

Step 1. Refer to the Ford 2013+ PI Sedan Service Manual and remove the front fascia from the vehicle.
Step 2. Install the single or dual speakers to the Speaker Mounting Plate by threading two (2) ¼"-20 X 1 ¼" Phillips pan head machine
screws with two (2) ¼" split lock washers for each speaker body through the holes in the main bracket and into the threaded holes in the
back side of the speaker body (See Figure 4). Tighten the screws until the lock washers fully flatten out but do not over tighten.
Note: Make sure the speakers are mounted in the correct orientation with the word "BOTTOM" at the bottom of the assembly (See
Figure 4 for correct speaker orientation). Caution: Severe damage could occur to the speaker if it is not mounted in the proper
orientation.
Step 3. Locate the speaker assembly with the speaker mounting plate behind the vehicle's bumper cross member and the speakers on top of
the cross member facing forward as shown in Figure 2.
Note: Figures 2 & 3 show the dual C3100 assembly, but the remaining steps are the same for all versions single or dual, C3100 or
C3900.
Step 4. Position the two (2) speaker bracket clamps over the front of the vehicles bumper cross member and thread two (2) ¼"-20 X 1 ¼"
Phillips pan head machine screws with two (2) ¼" split lock washers for each clamp through the slots in the clamps and into the threaded
inserts in the speaker clamp plate (See Figures 2 and 3).
Step 5. Tighten the screws until the lock washers fully flatten out and the clamps are tight up against the vehicle's bumper cross member.
Step 6. Connect the unit wires to customer supplied wires & route to the desired power source.
Replacement Parts and Accesories:
Description
C3900 Speaker
C3100 Speaker
Main Speaker Mounting Plate
Speaker Mounting Clamps
#12 x 1" Phillips Pan Head Screw
1/4" Star Tooth Lock Washer
1/4"-20 x 1 1/4" Phillips Pan Head Screw
1/4" Split Lock Washer
"BOTTOM"
C3900 DUAL SPEAKER VERSION
Part No.
140-1533-00
S71684
220-1163-00
220-1179-00
321-0126-00
T03745
"BOTTOM"
MAIN SPEAKER
MOUNTING PLATE
C3900 SINGLE SPEAKER VERSION

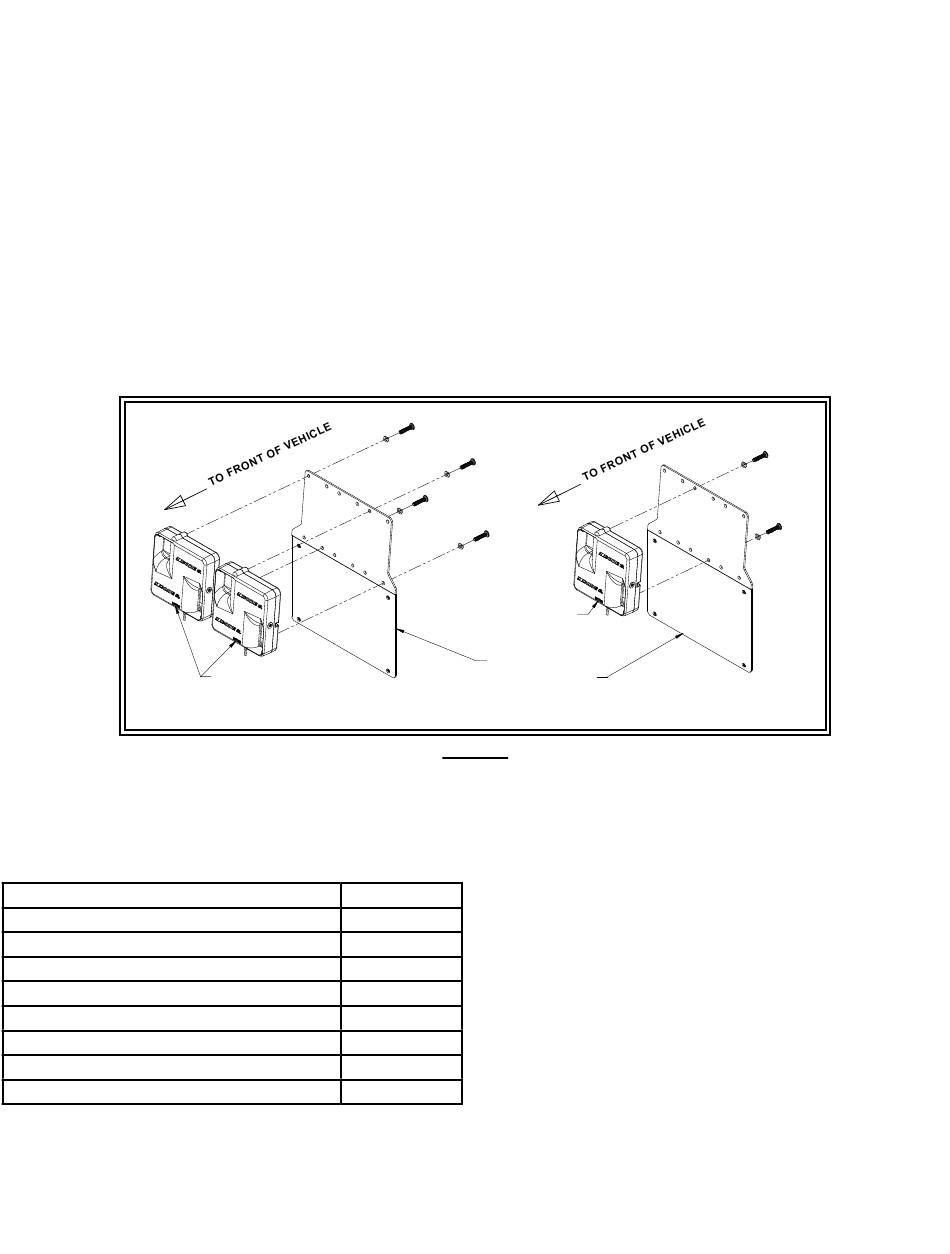

Figure 4
T11247
T11253
