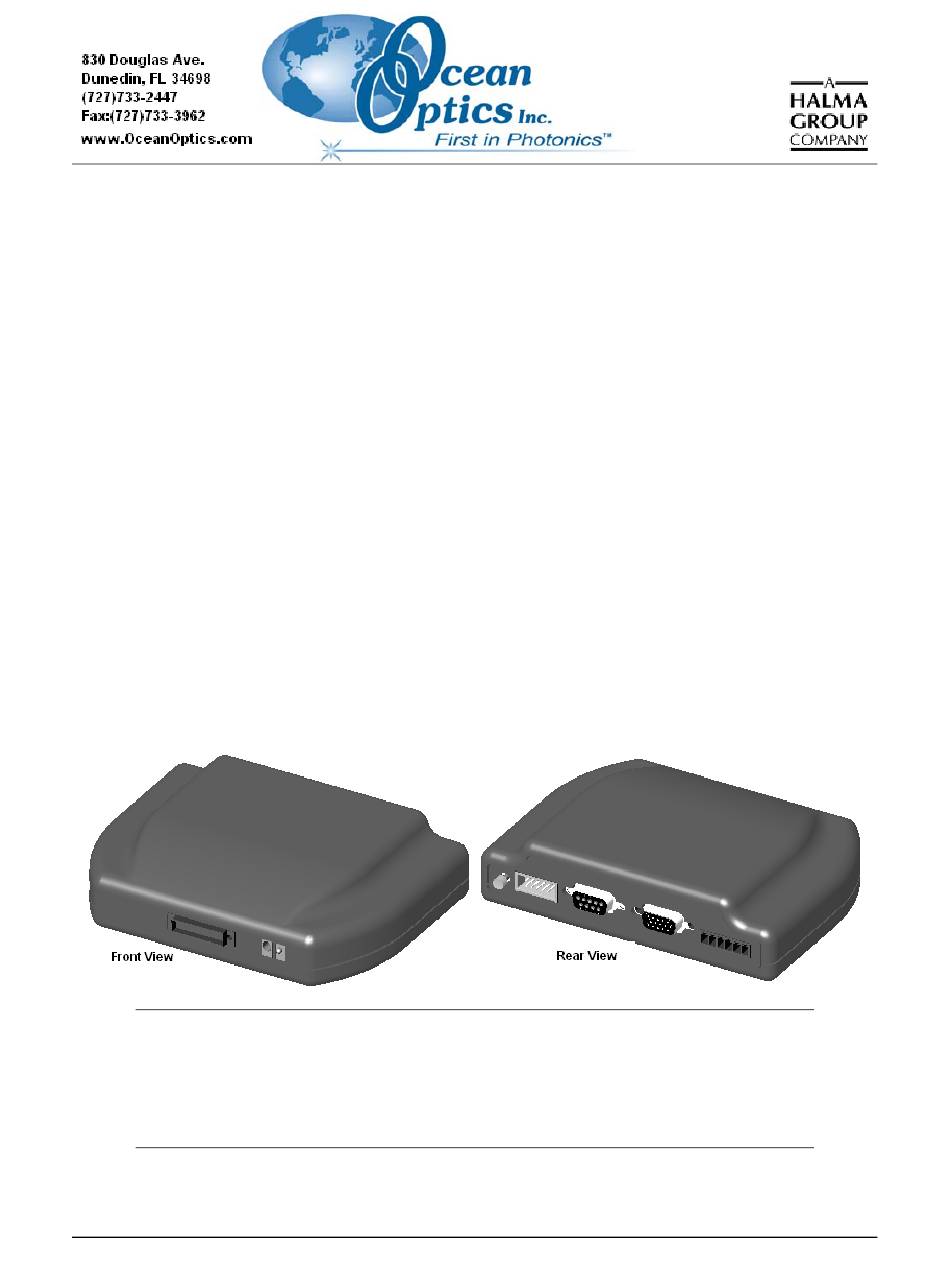

Installation and Operation Instructions
Description
The Ocean Optics Breakout Box (HR4-BREAKOUT) is a passive module that separates the signals
from their 30-pin port to an array of standard connectors and headers, enabling easy access to a variety
of features found in Ocean Optics' HR2000+, HR4000, and QE65000 Spectrometers. In addition to
the accessory connector, the breakout box features a circuit board based on a neutral breadboard
pattern that allows custom circuitry to be prototyped on the board itself.
The Breakout Box allows multiple interfaces to the spectrometer, such as the following:
DB-15 light sources
RS-232 interface
GPIO
External triggering
Analog Input/Output
The Breakout Box is compatible with HR4000 Spectrometers with Revision B or
greater. HR4000 Spectrometers with serial numbers beginning with HR4A are not
compatible with the HR4000 Breakout Box.
212-00000-000-01-0805
Breakout Box
Note
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Ocean Optics HR4000 and is the answer not in the manual?

Questions and answers

Summary of Contents for Halma Ocean Optics HR4000

  • Page 1 Breakout Box Installation and Operation Instructions Description The Ocean Optics Breakout Box (HR4-BREAKOUT) is a passive module that separates the signals from their 30-pin port to an array of standard connectors and headers, enabling easy access to a variety of features found in Ocean Optics’ HR2000+, HR4000, and QE65000 Spectrometers. In addition to the accessory connector, the breakout box features a circuit board based on a neutral breadboard pattern that allows custom circuitry to be prototyped on the board itself.
  • Page 2: Parts Included

    HR4-BREAKOUT Installation and Operation Instructions Parts Included The Ocean Optics HR4000 Breakout Box ships with the following items: • Breakout Box (HR4-BREAKOUT) • Breakout Box Accessory Cable (HR4000-CBL-BB) - A 1-foot, 30-pin ribbon cable that connects the spectrometer to the breakout box.
  • Page 3 HR4-BREAKOUT Installation and Operation Instructions Supplying Power to the Breakout Box The Breakout Box can be powered by • The spectrometer via its USB port, or • A separate 5V power supply (ADC-USB-SER). This power supply and serial cable must be purchased separately.
  • Page 4 HR4-BREAKOUT Installation and Operation Instructions Breakout Box Specifications 30-Pin Connector Pinout Information When facing the 30-pin connector on the front of the Breakout Box, pin numbering is as follows: Power 30-Pin Connector Pinout Diagram Table 1: 30-Pin Connector Pinout Information Pin # Function Input/Output...
  • Page 5 HR4-BREAKOUT Installation and Operation Instructions Pin # Function Input/Output Description SPI Master In Slave Out (MISO) signal for communication to SPI Data In Input other SPI peripherals General purpose software-programmable, digital GPIO (4) Input /Output input/output (channel number) TTL output pulse used as a strobe signal – Has a Single Strobe Output programmable delay relative to the beginning of the...
  • Page 6 HR4-BREAKOUT Installation and Operation Instructions J2 Connector Pinouts Use the J2 connector for light source accessory connection. Pin # Description Pin # Description J2-1 Single_strobe J2-9 GPIO-9 J2-2 ContStrobe J2-10 GND_SIGNAL J2-3 V5_SW J2-11 J2-4 ExtTrigIn J2-12 J2-5 ExtTrigIn J2-13 LampEnable J2-6 GPIO-8...
  • Page 7 HR4-BREAKOUT Installation and Operation Instructions Pin # Description Pin # Description J4-1 No Connection J4-6 No Connection J4-2 J4-7 No Connection J4-3 J4-8 No Connection J4-4 No Connection J4-9 No Connection J4-5 GND_SIGNAL J5 Connector Pinouts Use the J5 connector for internal breakout for custom circuitry. Pin # Description Pin #...
  • Page 8: Mechanical Diagrams

    HR4-BREAKOUT Installation and Operation Instructions Pin # Description J7-1 VUSB J7-2 ExtTrigIn J7-3 GND_SIGNAL J7-4 A_OUT J7-5 GND_SIGNAL J7-6 A_IN Mechanical Diagrams 212-00000-000-01-0805...
  • Page 9 HR4-BREAKOUT Installation and Operation Instructions 212-00000-000-01-0805...
  • Page 10 HR4-BREAKOUT Installation and Operation Instructions 212-00000-000-01-0805...
