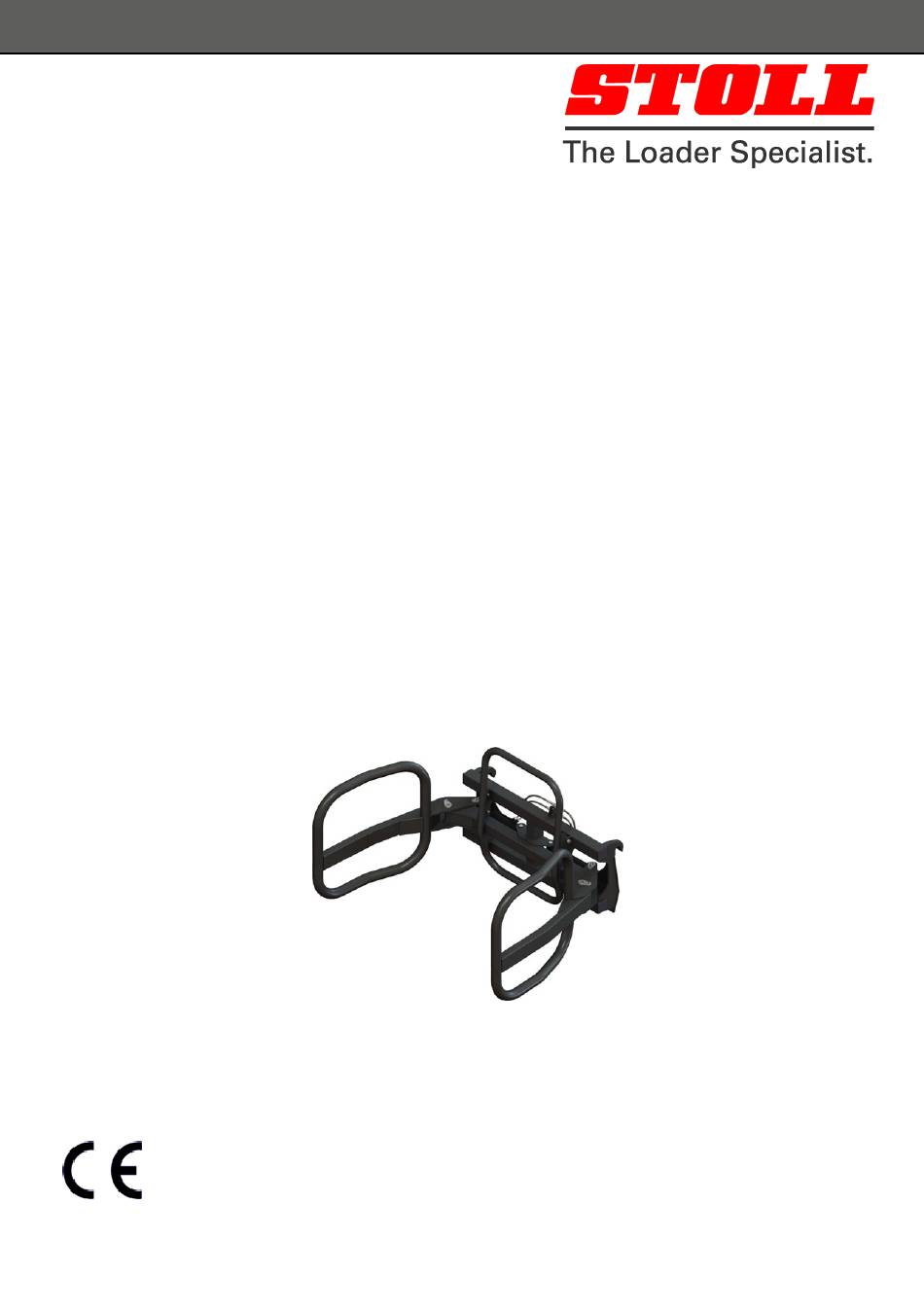

- Page 1 Operating and Maintenance Manual Front Loader Tool Program GLOBAL Wrapped bale handler SH-90AG P 1548 EN13 RE 01 – Original operating manual – 3 57 68 20...
- Page 2 P 1548 EN13 RE 01...
-
Page 3: Table Of Contents
Contents Introduction ..................... 5 About this operating and maintenance manual .......... 5 Symbols in this operating and maintenance manual ........5 Use ........................6 Intended use ....................6 Improper use ....................6 Safety instructions ..................7 General safety instructions ................. 7 Safe handling of front loader tools .............. - Page 4 If you have any questions about these operating and maintenance instructions, please contact your dealer. If you need additional copies, you can download them online at www.stoll- germany.com/download. Thank you. Your Wilhelm STOLL Maschinenfabrik GmbH...
-
Page 5: Introduction
Introduction About this operating and maintenance manual This operating and maintenance manual is a component of the respective vehicle with front loader attachments and must always be carried in the vehicle when the front loader is used. If the operating and maintenance manual is lost or no longer complete, please contact your dealer. -
Page 6: Use
Intended use The wrapped bale handler is built exclusively as a loading tool for the usual areas of work: to lift, load, transport and stack bales. The front loader tool may only be used and serviced by persons who have carefully read and understood the operating and maintenance instructions and are informed in particular about the hazards present when dealing with the front loader and mounted front loader tools. -
Page 7: Safety Instructions
Safety instructions General safety instructions Warning – Risk of accident and injury! • For all work carried out with the front loader, you must adhere to the accident prevention regulations and the safety, health and road traffic regulations of the respective country. - Page 8 • Always check the inclination of the tool. • Never repair, clean or lubricate components when the front loader arm is raised. Lower the front loader arm when the tractor is turned off, otherwise you can dismantle it. Warning – Risk of accident and injury! The lifting, stacking, storage and retrieval of large objects (bales,...
- Page 9 Warning – Risk of accident and injury! People or animals that are in the work area of the front loader can be seriously injured by the front loader, the tool and falling load. • Make sure that nobody is in the work area of the front loader.
- Page 10 Warning – Risk of accident and injury! The lifting and transporting of persons with the front loader is extremely dangerous and it is prohibited. Fig. 3: Person at risk if lifted by the front loader. Warning – Risk of accident and injury! Hydraulic oil escaping under high pressure can penetrate the skin...
- Page 11 Avoid high pressures when uncoupling. • Check the hydraulics lines and connections for wear and leaks. Stoll Order no. 3430510 Observe the safety regulations or the regulatory body that are applicable to your work. • Replace worn, outdated or leaking hydraulic lines.
-
Page 12: Special Safety Instructions For The Wrapped Bale Handler
Caution - risk of damage to components Only drive directly towards the material to be loaded. The steering must not be impacted. Special safety instructions for the wrapped bale handler Warning – Risk of accident and injury! To automatically lock the tool, it may only be raised up to a maximum height of 1.5 m for it to lock securely. - Page 13 This label indicates that you are not permitted to raise two or more bales at the same time. There is a risk that bales will fall and may injure people This label indicates the risk of injury from hydraulic leaks. Hydraulic oil escaping under high pressure can penetrate the skin and cause serious injury.
-
Page 14: Position Of The Safety Labels
Position of the safety labels Replace missing or damaged labels! P 1548 EN13 RE 01... -
Page 15: Description Of The Wrapped Bale Handler

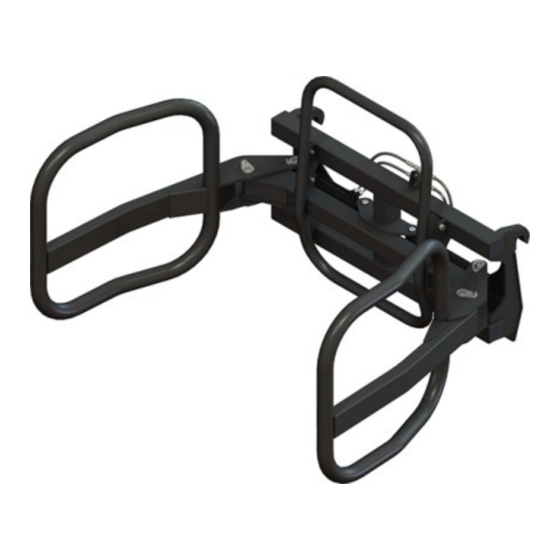

Description of the wrapped bale handler The wrapped bale handler is suitable for loading foil-wrapped silage bales. Of course, even highly compressed bales of all standard shapes and sizes that are not wrapped can also be loaded. The bales gripped with tongs must not be transported on public land. -
Page 16: General Information
General information • Compress the silage bales as tightly as possible to improve their transportability. • Press the bales, which have secondary fermentation and are very soft, repeatedly together with the tongs before transporting them, as these bales are too prone to collapsing and can slip out of the tongs if the drive is a particularly bumpy one. - Page 17 Mount the supply lines • Remove the two plastic caps on the hydraulic cylinder and turn the screw socket firmly into place. • Then screw on the two hydraulic hoses as shown in the figure with the mounting boss and attach the coupling sleeves onto them at the other end. •...
-
Page 18: Maintenance
Maintenance Safety instructions Warning – Risk of accident and injury! The use of inappropriate parts can lead to accidents and injuries. • Only use original spare parts that are approved by the manufacturer for your type of tool. Warning – Risk of accident and injury! The following points must be observed in any case before the... - Page 19 the tractor. • Tighten all screws after 5 operating hours. • Check that the screw connections are tight every 100 operating hours. • Tighten loose screw connections immediately. Tightening torques for screws Strength class 8.8 and 10.9 – Average friction coefficient µ 0.12 Screws Tightening torque (Nm) Screws...
-
Page 20: Hydraulics
Hydraulics Observe the safety instructions in chapter 3.2 on page 7. The instructions and regulations of tractor hydraulics apply to the maintenance and care of the hydraulic system. A load weight in the three-point linkage is also recommended for front loader work with four-wheel drive. -
Page 21: Declaration Of Conformity
Declaration of Conformity P 1548 EN13 RE 01... -
Page 22: Notes
Notes P 1548 EN13 RE 01... - Page 23 P 1548 EN13 RE 01...
- Page 24 Company details Wilhelm STOLL Maschinenfabrik GmbH PO Box 1181, 38266 Lengede Bahnhofstr. 21, 38268 Lengede Tel.: +49 (0) 53 44/20 0 Fax: +49 (0) 53 44/20 182 E-mail: info@stoll-germany.com Website: www.stoll-germany.com Ordering spare parts Tel.: +49 (0) 53 44/20 143-146...
