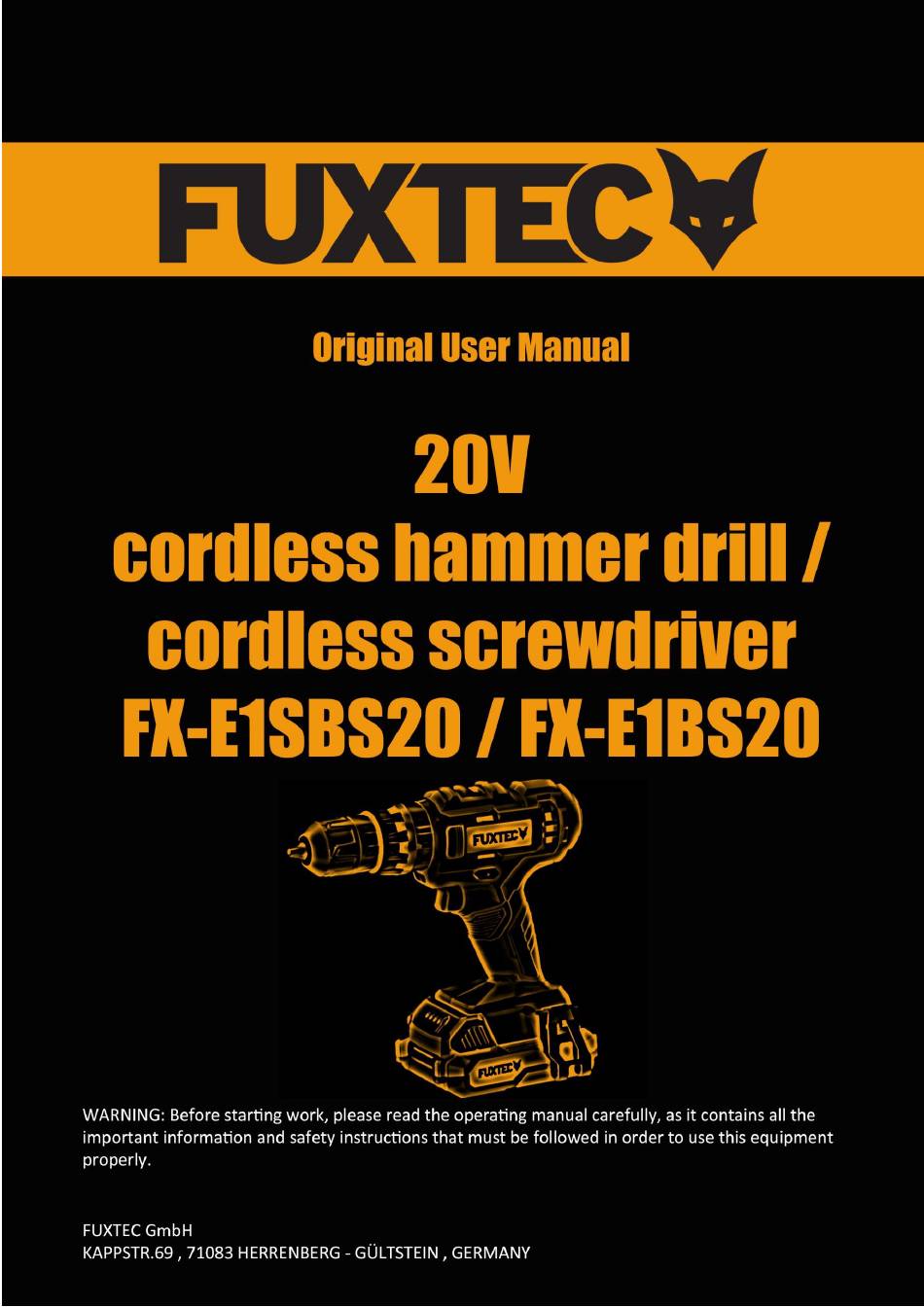

- Page 1 Original User Manual FUXTEC 20V cordless hammer drill FX-E1SBS20 + FUXTEC 20V cordless screwdriver FX-E1BS20...
-
Page 2: Table Of Contents
Original User Manual FUXTEC 20V cordless hammer drill FX-E1SBS20 + FUXTEC 20V cordless screwdriver FX-E1BS20 Contents Introduction and safety ........................... 3 Intended use ............................3 General safety information for power tools ..................3 Workplace safety ..........................3 Electrical safety ........................... 4 Personal safety ............................ -
Page 3: Introduction And Safety
Original User Manual FUXTEC 20V cordless hammer drill FX-E1SBS20 + FUXTEC 20V cordless screwdriver FX-E1BS20 Introduction and safety Never allow children or persons not familiar with these instructions to use the tool device. Children should be supervised to ensure that they do not play with the device. -
Page 4: Electrical Safety
Original User Manual FUXTEC 20V cordless hammer drill FX-E1SBS20 + FUXTEC 20V cordless screwdriver FX-E1BS20 Electrical safety - The plug of the power tool must fit into the socket. The plug must not be altered in any way. Do not use adapter plugs together with grounded power tools. Unmodified plugs and suitable sockets reduce the risk of electric shock. -
Page 5: Use And Handling Of The Power Tool
Original User Manual FUXTEC 20V cordless hammer drill FX-E1SBS20 + FUXTEC 20V cordless screwdriver FX-E1BS20 Use and handling of the power tool - Do not overload the device. Be sure to use the designated power tool for your work. With the right power tool you will work better and safer in the specified power range. -
Page 6: Safety Information For Cordless Drills
Original User Manual FUXTEC 20V cordless hammer drill FX-E1SBS20 + FUXTEC 20V cordless screwdriver FX-E1BS20 Safety information for cordless drills General safety information - For your own and others' safety, please read this manual and its safety information before using the device. -
Page 7: During Use
Original User Manual FUXTEC 20V cordless hammer drill FX-E1SBS20 + FUXTEC 20V cordless screwdriver FX-E1BS20 During use Do not switch on the device when persons (especially children) or animals are in the immediate vicinity. Make sure that children do not play with the device. -
Page 8: Safety Information For Li-Ion Batteries
Original User Manual FUXTEC 20V cordless hammer drill FX-E1SBS20 + FUXTEC 20V cordless screwdriver FX-E1BS20 Safety information for Li-Ion batteries - Do not open the battery. There is a risk of short circuit. - Protect the battery from heat, including continuous exposure to sunlight, fire, water and moisture. -
Page 9: Presentation
Original User Manual FUXTEC 20V cordless hammer drill FX-E1SBS20 + FUXTEC 20V cordless screwdriver FX-E1BS20 Presentation Figure 1: Cordless drill 1. On/off switch 2. Work light 3. Drill chuck 4. Torque selection sleeve 5. Application selection sleeve (FX-E1SBS20) 6. Speed selector 7. - Page 10 Original User Manual FUXTEC 20V cordless hammer drill FX-E1SBS20 + FUXTEC 20V cordless screwdriver FX-E1BS20 Figure 2: Selection of drilling mode (cordless drill) To use the drill mode, turn the application selector collar around until the drill symbol appears opposite the arrow.
- Page 11 Original User Manual FUXTEC 20V cordless hammer drill FX-E1SBS20 + FUXTEC 20V cordless screwdriver FX-E1BS20 Figure 4: Selection of hammer drill function (battery-powered impact drill) To be used in hammer mode, turn the application selector collar around until the hammer symbol appears opposite the arrow. Adjusting the slip clutch has no effect on the operation of the drill in hammer mode.
- Page 12 Original User Manual FUXTEC 20V cordless hammer drill FX-E1SBS20 + FUXTEC 20V cordless screwdriver FX-E1BS20 Figure 5: Selection of drilling function (battery-powered hammer drill) To use the drilling mode, turn the application selector collar around until the drilling symbol appears opposite the arrow. The setting of the slip clutch has no effect on the operation of the drill during use.
- Page 13 Original User Manual FUXTEC 20V cordless hammer drill FX-E1SBS20 + FUXTEC 20V cordless screwdriver FX-E1BS20 To use the screwing mode, turn the application selector collar around until the screw symbol appears opposite the arrow. Then turn the slipping clutch selector wheel above it to the desired position. The adjustable clutch, when properly engaged, will engage in a preset torque.
-
Page 14: Operation
Original User Manual FUXTEC 20V cordless hammer drill FX-E1SBS20 + FUXTEC 20V cordless screwdriver FX-E1BS20 Operation Speed selection The speed selector is located on the top of the motor housing. Allow the tool to come to a complete stop before changing speeds. -
Page 15: Disposal
Original User Manual FUXTEC 20V cordless hammer drill FX-E1SBS20 + FUXTEC 20V cordless screwdriver FX-E1BS20 Disposal WARNING! Make used power tools unusable before disposal: • mains-operated power tools by removing the connecting plug, • battery operated power tools by removing the battery. -
Page 16: Technical Data
Original User Manual FUXTEC 20V cordless hammer drill FX-E1SBS20 + FUXTEC 20V cordless screwdriver FX-E1BS20 Technical data Battery device Nominal voltage 20 V Speed 1 360 (U/min) Speed 2 1300 (U/min) 21000 (b/min) Number of strokes (FX-E1SBS20) Weight (without battery) -
Page 17: Declaration Of Conformity
EC directives. Any manipulation or change of the machine not being explicitly authorized by us in advance renders this document null and void. Storage of technical documentation: FUXTEC GmbH ● Kappstraße 69 ● 71083 Herrenberg ● Germany, T. Gumprecht, Geschäftsführung Herrenberg, 17.01.2020... - Page 18 Original User Manual FUXTEC 20V cordless hammer drill FX-E1SBS20 + FUXTEC 20V cordless screwdriver FX-E1BS20...
