Lantronix Xport Guide IC2001/4001 Controllers
The scope of this guide is to explain how to configure a Sensor IC controller with a Lantronix Xport
After installing the Lantronix device installer start the software from the start menu.
The initial Lantronix screen will show a device tree in the left hand side of the window.
Expanding this tree will show you and Lantronix devices attached to your LAN.
The first step is to give the Lantronix device an IP address that falls in line with the network/LAN than you plan
to connect the device to.
You may need to obtain the IP address from the network administrator for the site.
1.

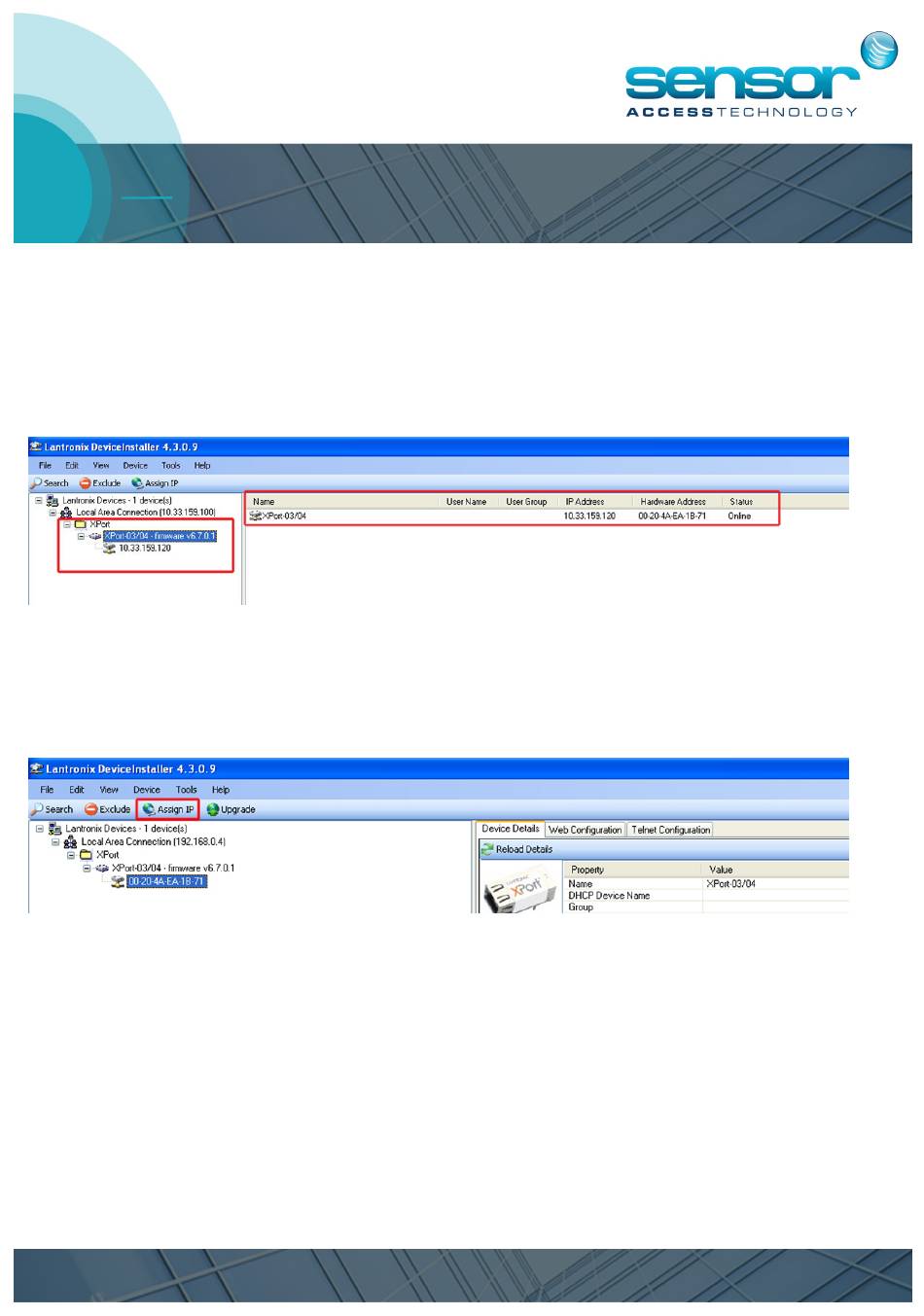

Highlight the Xport in the right hand pane of the device installer [you may see a MAC address or IP ad-
dress] and then click "Assign IP" button, this will initiate the IP change wizard
sales@sensoraccess.co.uk
www.sensoraccess.co.uk
+44 (0) 1273 242 355
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Sensor Access IC2001
Summary of Contents for Sensor Access IC2001
- Page 1 Lantronix Xport Guide IC2001/4001 Controllers The scope of this guide is to explain how to configure a Sensor IC controller with a Lantronix Xport After installing the Lantronix device installer start the software from the start menu. The initial Lantronix screen will show a device tree in the left hand side of the window.
- Page 2 Lantronix Xport Guide IC2001/4001 Controllers Once the wizard has been initiated, follow the steps as the pictures point out below. The first step of the wizard is to decide whether you want the wizard to automatically assign an IP address for you or to as- sign a specific IP address, Choose “Assign a specific IP address”...
- Page 3 Lantronix Xport Guide IC2001/4001 Controllers The 3 fields are: IP Address [The physical IP address you want to assign to the controller/Xport] Subnet Mask [The Subnet the IP address of the controller/Xport belongs to] Default Gateway [The gateway node the Controller will use to talk to another network, usually the IP address...
- Page 4 Lantronix Xport Guide IC2001/4001 Controllers Part 2 – Changing controller/Xport defaults Now that we have the controller setup with the correct IP address, Subnet and gateway we need to change certain elements of the Xport so that the controller can communicate with GuardPoint Pro.
- Page 5 Lantronix Xport Guide IC2001/4001 Controllers Web Configuration First click onto the Web Configuration tab You will be presented with a blank page. In the Address bar [much like a web browser] you will see the IP address of you controller followed by the port...
- Page 6 Lantronix Xport Guide IC2001/4001 Controllers We can now see the front page of the web configuration with options down the left hand side of the page Outlined in RED in the Web configuration picture above is the MAC address. This is the physical hardware ad- dress of the Xport, this address can also be found printed on the Xport.
- Page 7 Lantronix Xport Guide IC2001/4001 Controllers The Network Mode drop down needs to be set to Wired Make sure that the “Use the following IP configuration” radio button is selected and the available fields corre- spond with what you entered earlier when setting up the IP address of the Xport. [Ignoring the DNS server settings] Ethernet configuration should be set to “Auto Negotiation”...
- Page 8 Lantronix Xport Guide IC2001/4001 Controllers Channel 1 – Serial Settings - Click onto the network menu the following page will load The important settings to note on this page are the Port Settings. They should be configured like so. Protocol – RS232 Flow Control –...
- Page 9 Lantronix Xport Guide IC2001/4001 Controllers Telnet Configuration Clicking onto the Telnet Configuration tab will load this screen The important aspects to check here are: The IP address Port Number Both of these can be found on the “Device Details” Tab. The Telnet port number if not changed will always be at default 9999.
- Page 10 Lantronix Xport Guide IC2001/4001 Controllers This is the same output as what you would see in the Web configuration but presented in a text format. To the very bottom of this output you will see a menu To navigate through the various menus you enter the number off the corresponding heading as your choice and press enter.
- Page 11 Lantronix Xport Guide IC2001/4001 Controllers First I enter my choice for Channel 1 and press enter. I am now presented with Baudrate (9600)? At this point you can enter another Baudrate if I wish and then press enter. As I want to leave the Buadrate as...
