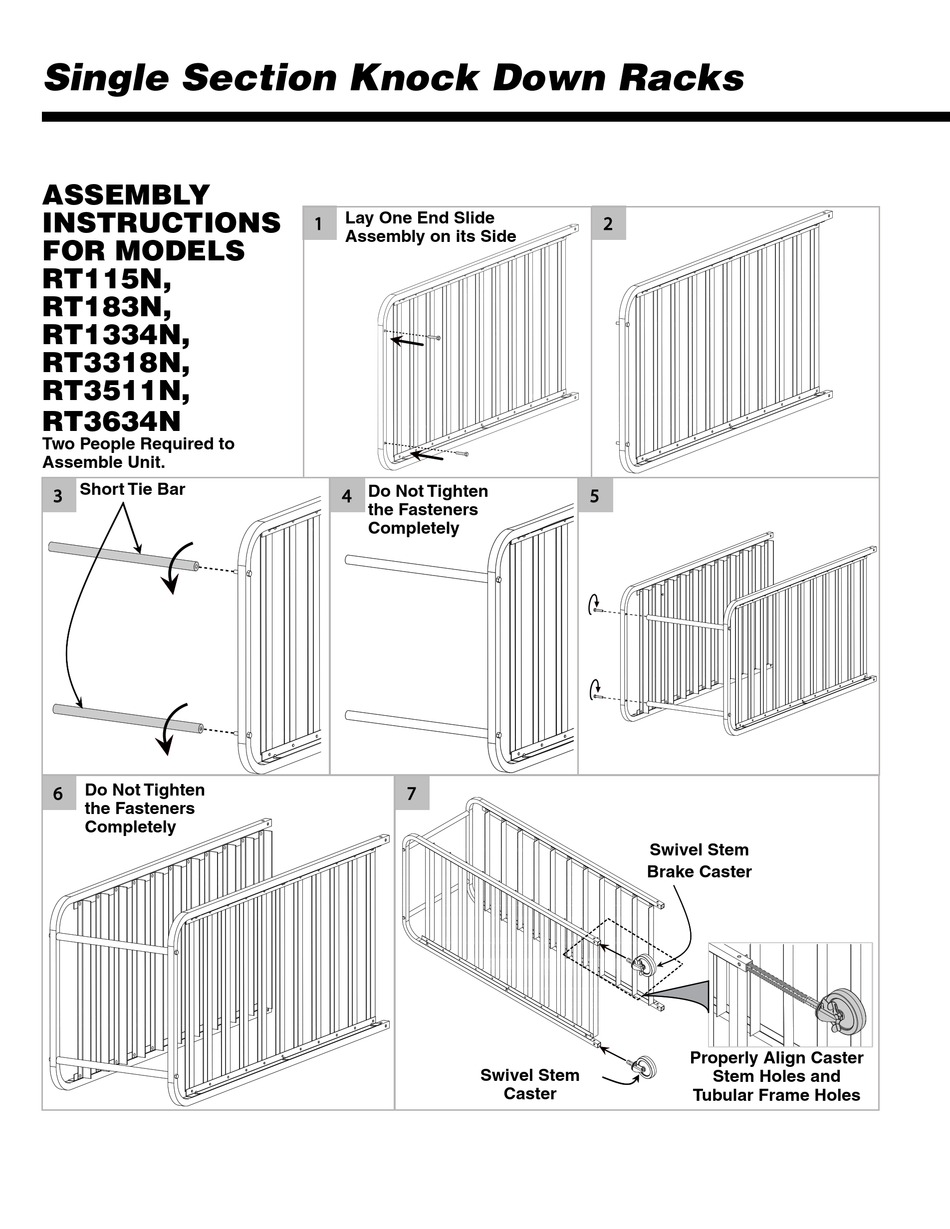

Single Section Knock Down Racks
ASSEMBLY
INSTRUCTIONS
FOR MODELS
RT115N,
RT183N,
RT1334N,
RT3318N,
RT3511N,
RT3634N
Two People Required to
Assemble Unit.
Short Tie Bar
㌀
Do Not Tighten
㘀
the Fasteners
Completely
Lay One End Slide
Assembly on its Side
Do Not Tighten
㐀
the Fasteners
Completely
㜀
Swivel Stem
㈀
㔀
Swivel Stem
Brake Caster
Caster
Properly Align Caster
Stem Holes and
Tubular Frame Holes
